GE DS200DCFBG1BLC

Description

General Electric DS200DCFBG1BLC Power Supply Board Mark V Series

Instruction Manual：GEI-100028

Manufacturer：GE General Electric

Part Number：DS200DCFBG1BLC

Product Type：Power Supply Board

Series：Mark V

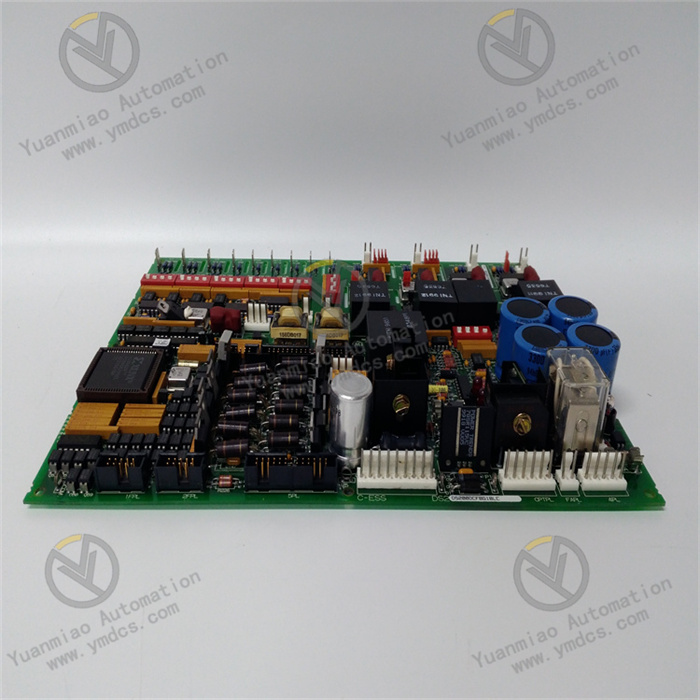

The DS200DCFBG1BLC is a power supply board designed by General Electric for the Mark V series of optional and replacement boards. Members of this series are cross compatible with a number of GE brand exciters and drives. Drives from the DC2000, AC2000, CB2000, ME2000, and FC2000 can all accept this power board. This card provides system control level power to its installed drive, as well as electricity to the enclosure fan. Sourced AC inputs to this board can rate from 38 to 115 VAC. Frequencies accompanying this VAC can range from 0 to 500 kHz, depending on the strength of the inputted voltage. DS200DCFBG1BLC contains a number of intricate circuit systems designed to power a majority of the drive. The card includes both an AC and DC monitoring circuit, the control level supply circuit, a motor field power circuit, and a driver circuit. Users can configure the twelve jumpers and seven DIP switches on the card to meet any external requirements. Board status is communicated to the user via the onboard indicators. Two LED and one neon indicators are built into the card, providing users with important diagnostic and status information. Three of the board’s fuses are protected, ensure that interruptions or surges will not disrupt the currents. Be sure to monitor voltage levels periodically using the five test points integrated into the board.

                                                                                DS200DCFBG1BLC

                                                                                DS200DCFBG1BLC
