1715-OB8DE | Allen Bradley 8-Channel Digital Output Module

Description

1715-OB8DE | Allen Bradley 8-Channel Digital Output Module

Description：The 1715-OB8DE is a Bulletin 1715 Redundant I/O module 8-Point Digital Output Module. This module has an 8-Point Digital Output Module. It has a Power Dissipation of 3 Watts Maximum and it supports a Shielded Wire Type of 18 to 16 AWG with Dimensions of 166 x 42 x 118 millimeters and a weight of 290 grams.

• Manufacturer : Allen Bradley • Product No. : 1715-OB8DE

• Product Type : 8 Channel Digital Output Module • Fuses : 50 mA for each channel • Screw torque : 0.5 N•m (0.37 lb•ft) • Screwdriver width Flathead 0.4 x 2.0 m (0.0156 x 0.0781 in.) • Backplane : 165 mA @ 18…32V DC • Field voltage slew rate, max : 150 V/s(1),(2) • De-energized output voltage slew rate, max : 12 V/ms(3) • Energized output current slew rate, max : 0.9 A/ms • Power dissipation   System : 3.0 W max • Field Loop : 0.17 W per field loop • Isolation voltage 50V (continuous), basic insulation type, I/O ports to backplane   No isolation between individual I/O ports   Type tested at 500V AC for 60 s • Dimensions ( D x W x H ) : 11.8 cm x 4.2 cm x 16.6 cm • Weight : 0.29 Kg • Shipping Weight : 1.5 Kg

Manufactured by Allen-Bradley, the 1715-OB8DE is a redundant I/O module that is classified under the 1715 series of Allen-Bradley redundant I/O modules. The 1795-OB8DE features a power dissipation of 3 Watts of maximum power capacity. The operating temperature for the 1715-OB8DE is a minimum of -25 degrees Celsius and a maximum of 70 degrees Celsius. The redundant l/O module is described as an 8-point digital output module and with a wire size OF 18 to 16 AWG. The unit weighs about 290 grams as the shipping weight. The 1715-OB8DE is a chassis-based application and it comes with the DIN rail mounting type. The enclosure type for the 1715-OB8DE is open style and it comes with a display system that serves as the module’s health and status display dashboard. The 1715-OB8DE comes with an output signal of 18 to 32 Volts DC. The shipping dimensions for the 1715-OB8DE are a length of 1 5/8 inches, a width of 4 5/8 inches, and a height of 6 1/2 inches. According to the manufacturer, the 1715-OB8DE comes with the 18-16 AWG solid stranded copper wire and it has a power rating of less than 2 Watts. The vibration resistance for the 1715-OB8DE is 2 g with a shock endurance rating of 25 grams on the DIN rail and at the operational status. While in the non-operational status and while installed on a DIN rail, the module comes with a shock endurance of 30 g, and it has one of 50 g while uninstalled. The 1715-OB8DE features the current sourcing output type and the surge transient immunity.

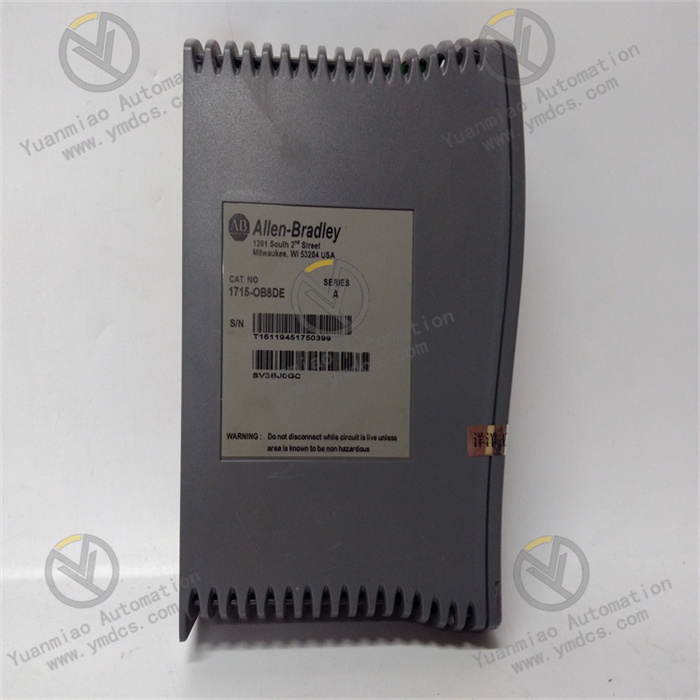

                                                                                     1715-OB8DE

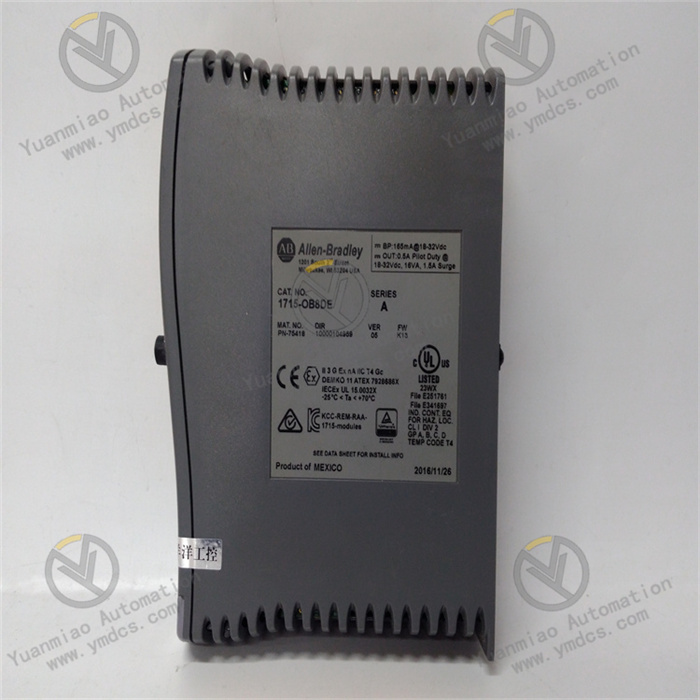

                                                                                     1715-OB8DE

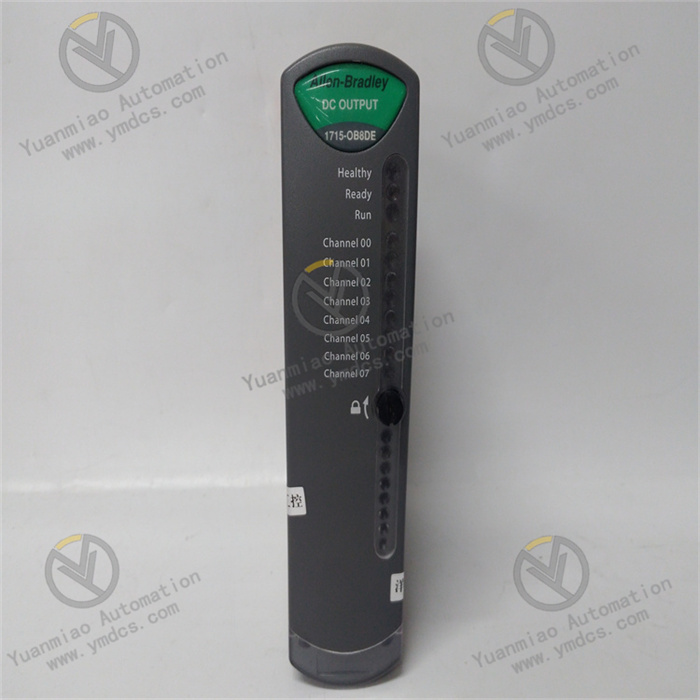

                                                                                     1715-OB8DE
