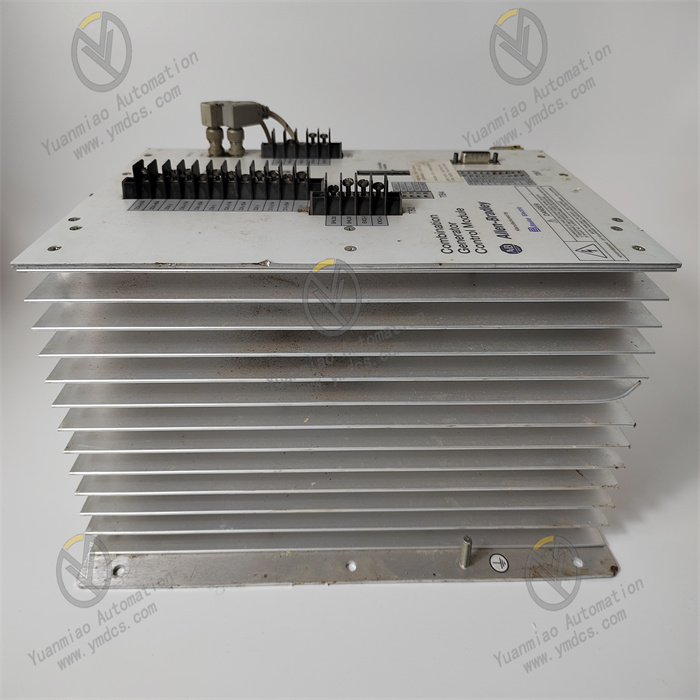

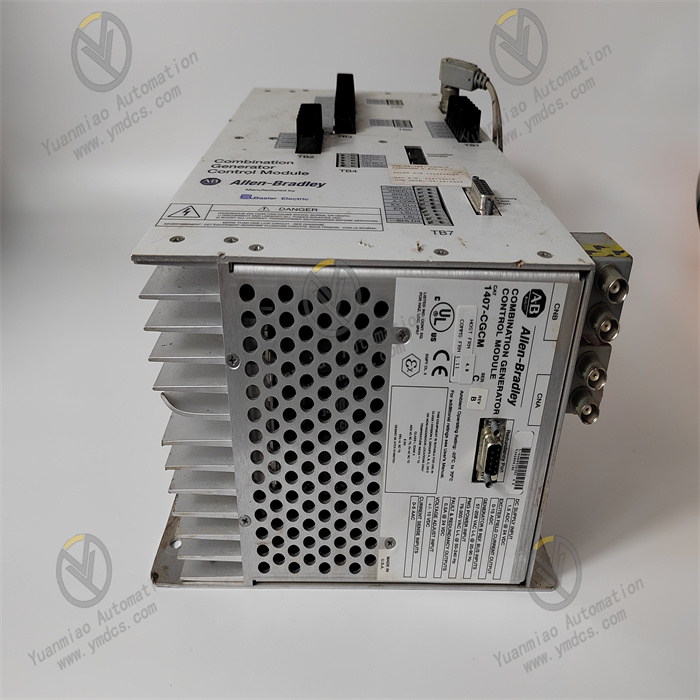

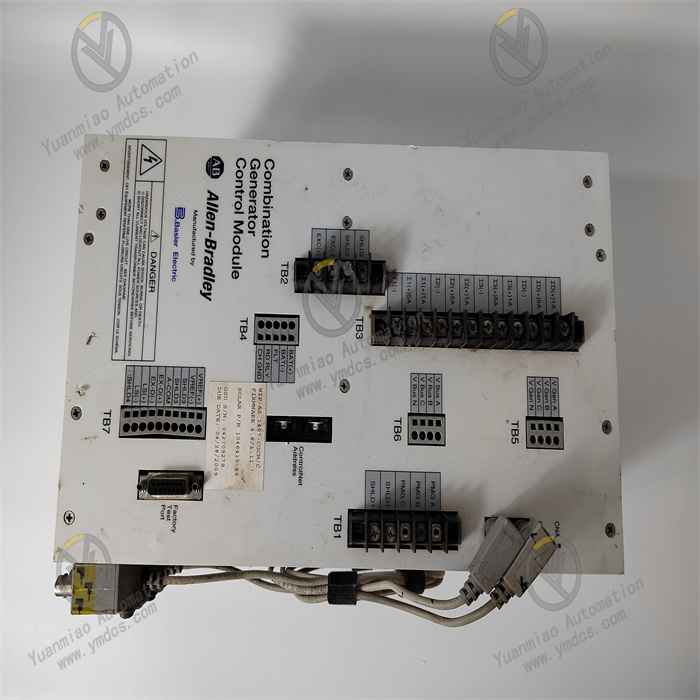

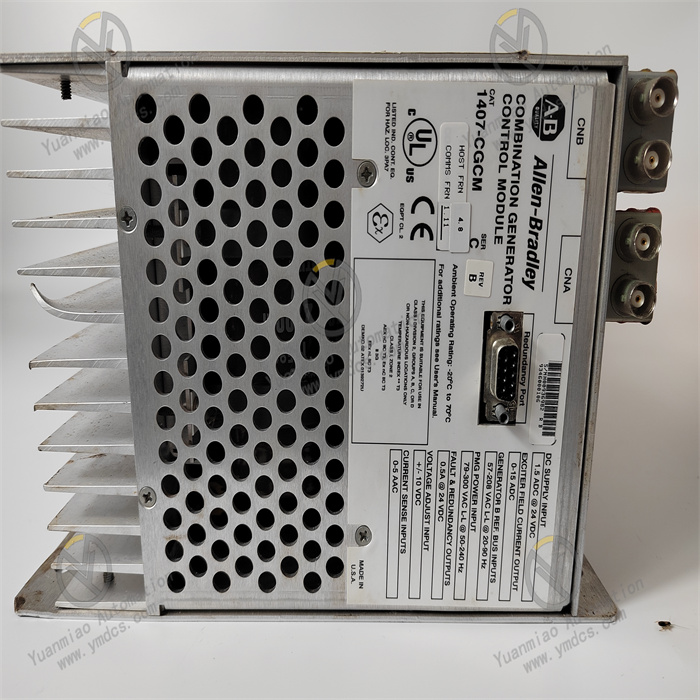

1407-CGCM | Allen Bradley Combination Generator Control Module

Description

1407-CGCM | Allen Bradley Combination Generator Control Module

Description

Manufacturer : Allen Bradley Product No. : 1407-CGCM

Product Type : Combination Generator Control Module

Control Power - Supply • 18…32V DC (24V DC nom) (The device is to be powered by a 24V Nominal Battery or 24V DC Power Supply with ATEX certification.) • AC ripple, max - Burden • 30W • 50%, 50…120 Hz Generator Current Sensing - Type : 3-phase plus cross current compensation input. - Frequency : 50/60 Hz - Range : 1 A or 5 A max continuous - Burden < 0.1 VA per phase for metering CTs < 2.5 VA per phase for cross-current inputs - Cross-current compensation entity parameters ( ID(+) 1 A, ID(+) 5 A, ID(-) ) • Ui = 12 V • Ci = 14.1 nF • Ii = 5 AAC • Li = 1.5 µH Metering - Generator voltage • Range : 57…208V AC • Accuracy : 0.2% (50/60 Hz) - Generator current • Range : 0…5 A AC • Accuracy : 0.2% (50/60 Hz) - Generator frequency • Range : 10…90 Hz • Accuracy : ±0.05 Hz - Bus voltage • Range : 57…208V AC • Accuracy : < 0.2% (50/60 Hz) - Bus frequency • Range : 10…90 Hz • Accuracy : ±0.05% - Phase angle • Range : ±180° • Accuracy : ±1.0° - Field voltage • Range : 0…200V DC • Accuracy : ±1.25 V or ±1.0% (whichever is greater) - Field current • Range : 0…30 A AC • Accuracy : ±0.15 A or ±1.0% (whichever is greater - Power factor • Range : 0.5…0.5 • Accuracy : <0.4% of actual PF - Power - real and reactive • Range : 0…200% of nom • Accuracy : <0.4% of rated kVA - Load share : Resolution: 0.1% of full scale voltage - Load Share entity parameters ( LS(+), LS(-) ) • Ui = 0…5 V • Ci = 101 nF • Ii = 111 ÂµA • Li = 0 Environment - Temperature, operating : -20…70 °C (-4…158 °F) - Temperature, storage : -40…85 °C (-40…185 °F) - Humidity, operating : 5…95% (noncondensing) - Shock, operating : 30 g - Shock, nonoperating : 50 g in 3 perpendicular planes - Vibration, operating • 10 … 500 Hz, 5.0 g / 0.015 in. max (p-p) • 2 hours each axis - Dielectric strength : Tested per IEEE 421.3 - Salt fog : Tested per MIL-STD-810E, Method 509.3 Heat dissipation : 3.1 kW max Dimensions (W x H x D) : 24.77 cm x 35.56 cm x 20.96 cm Weight : 7.7 Kg Shipping Weight : 9 Kg

1407-CGCM

One year warranty, special discount after sale

The company focuses on DCS, PLC, robot, large servo four systems

The main products are all kinds of module/card, controller, touch screen, servo drive

The company's advantages: the supply of imported original products, professional production of accessories

Fast delivery time, complete supply, The seller has more than $1526000 worth of industrial control products inventory

We Can transport to the world！！！
