1756-TBCH | Allen Bradley Terminal Block

Description

1756-TBCH | Allen Bradley Terminal Block

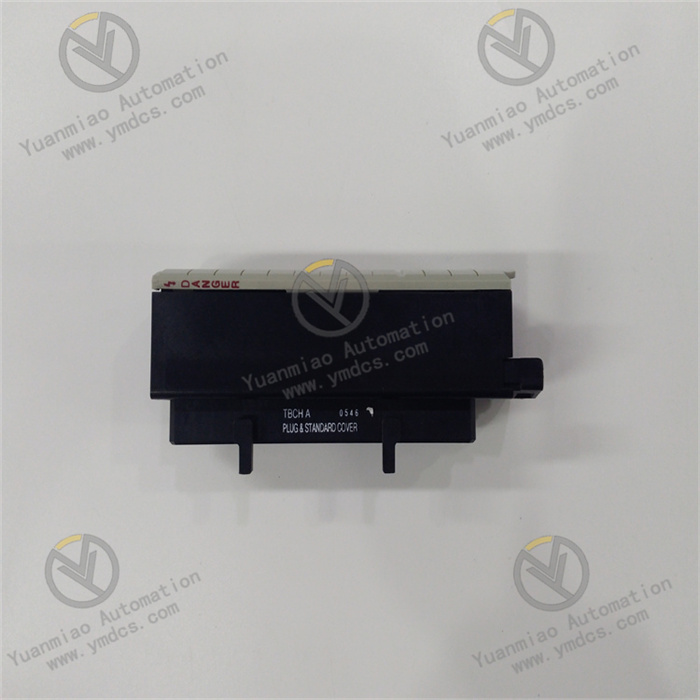

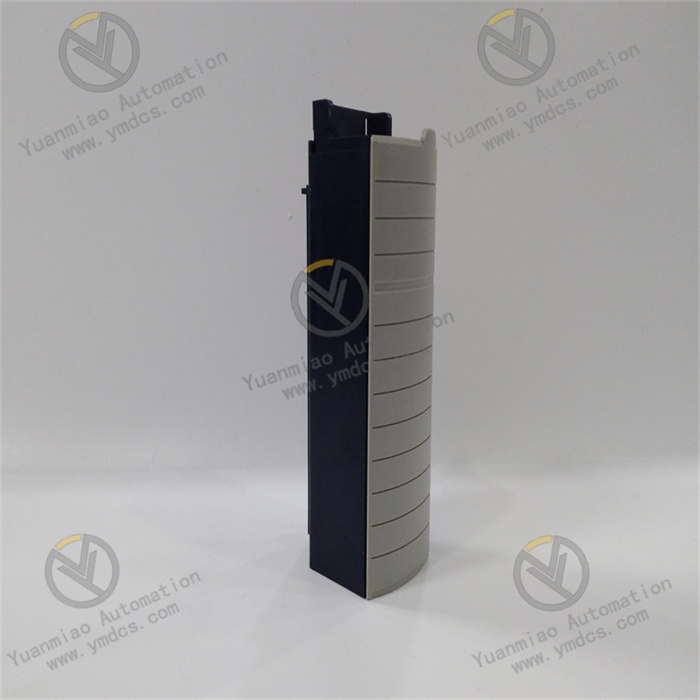

Description: The Allen-Bradley 1756-TBCH is a ControlLogix Removable Terminal Block (RTB) component. This component is used as modular wiring terminal for 1756 I/O modules. This component is a 36-pin cage-clamp removable terminal block with standard housing.

Technical Specifications for 1756-TBCH

The Allen-Bradley 1756-TBCH is a Removable Terminal Block (RTB) for 1756 I/O modules.   It is an I/O module accessory and must be ordered separately.   The 1756-TBCH provides flexibility in interconnecting 1756 I/O modules and industrial plant wiring.   It plugs into the front of an I/O module. The 1756-TBCH removable terminal block is a 36-pin cage-clamp with standard housing (wiring arm depth of 2.5 mm. sq.).   When terminating signal to the RTB, the required Torque is 0.5 Nm screw torque.   It is recommended to use a screwdriver with width of 3.2 mm (1/8 in.)   Screwdriver width.   It has dimensions of 5.51 x 4.41 x 5.71 in.   and weighs 0.3 pounds.   For wiring, use solid or stranded copper wire rated at 90 deg. Celsius (194 °.   Fahrenheit) or greater with a gauge 1.2 mm (3/64 in.) maximum insulation must be used.   In case of a single wire connection, the wire size must be 0.33 - 2.1 mm sq.   (22 - 14 AWG), and for a double wire connection, the wire size must be 0.33 - 1.3 mm sq.   (22 - 16 AWG).   On any single terminal, do not wire more than two conductors. The 1756-TBCH is a 36-Pin cage clamp Removable Terminal Block (RTB) that is used to provide modular and flexible wiring terminal for Input and Output devices.   This RTB is a module component that installs in the front of a ControlLogix I/O module, hidden by the module door cover. Some modules that may be installed with the RTB includes 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF, 1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IF8, 1756-IF8K, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IS and many other modules.

                                                                                     1756-TBCH
