1771-ACN | Allen Bradley Communication Module

Description

1771-ACN | Allen Bradley Communication Module

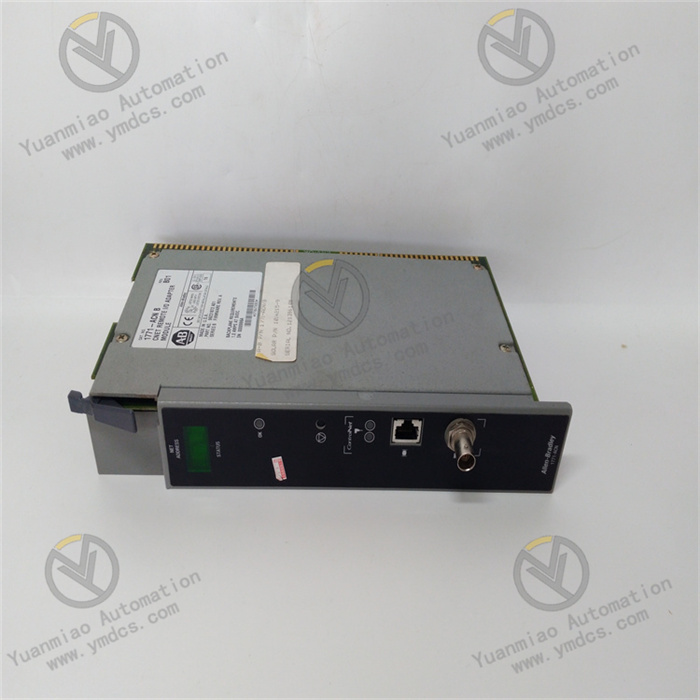

Description: The 1771-ACN module is a ControlNet adapter module. This adapter module is manufactured by Allen-Bradley as part of the PLC 5 series. The 1771-ACN ControlNet adapter module is a key component in a complete and functioning programmable controller system. This module features a status display screen, an NAP or network access port, a reset pushbutton, and 1 ControlNet connector. The 1771-ACN ControlNet adapter module can work with 32-channel I/O modules.

Technical Specifications for 1771-ACN

The Allen-Bradley 1771-ACN is a communication module used to control the 1771 remote I/O on a ControlNet network. This particular network allows Allen-Bradley products to communicate with certified third-party products. The 1771-ACN is compatible with both the PLC-5/20C and PLC-5/40C processors. The 1771-ACN is like the 1771-ACNR, as they both have a status display, Network Access Port (NAP), ControlNet status indicators, module net address switch assemblies placed on top of the modules, and a communication reset button. The difference lies in the ControlNet connectors - the 1771-ACN only has one but two are available on the 1771-ACNR. A 1.0A at 5V dc backplane current is a requirement for installing this ControlNet adapter module. When installing, the module needs to be in the leftmost slot of the I/O chassis. This is because the backplane connectors are designed to accept only one kind of module. The keying bands also need to be between 54 and 56 on the upper connector and between 16 and 18 on the lower connector. When inserting or removing keys, make sure to do so only with your fingers and that the key placement is correct. After installation, you can connect the 1771-ACN using taps to the ControlNet network. It is important that only Allen-Bradley taps be used for this to avoid issues. With the 1771-ACN, users can expect transfers of time-critical and non-time-critical data at high speeds (either discrete or non-discrete), local communication network access through the network access port (NAP), and diagnostic messages.

                                                                                      1771-ACN

                                                                                      1771-ACN

                                                                                      1771-ACN

                                                                                      1771-ACN
