1771-IBD | Allen Bradley Discrete Input Module

Description

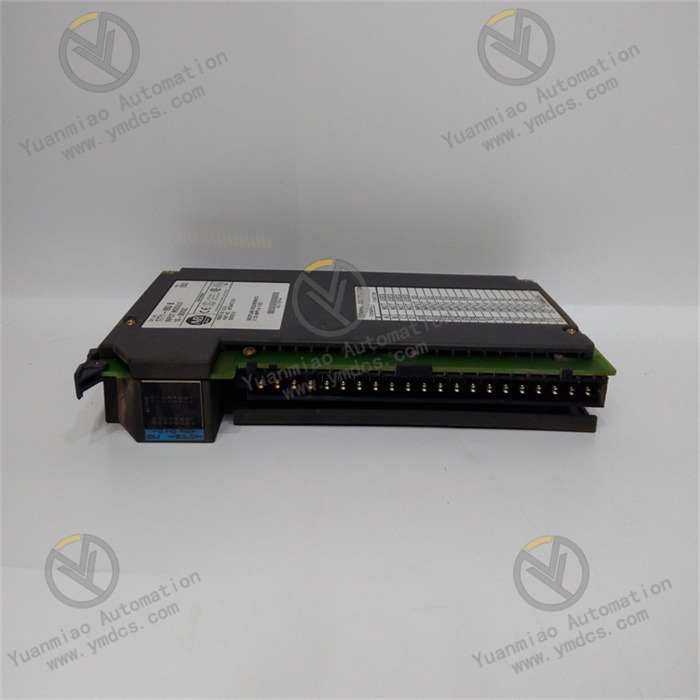

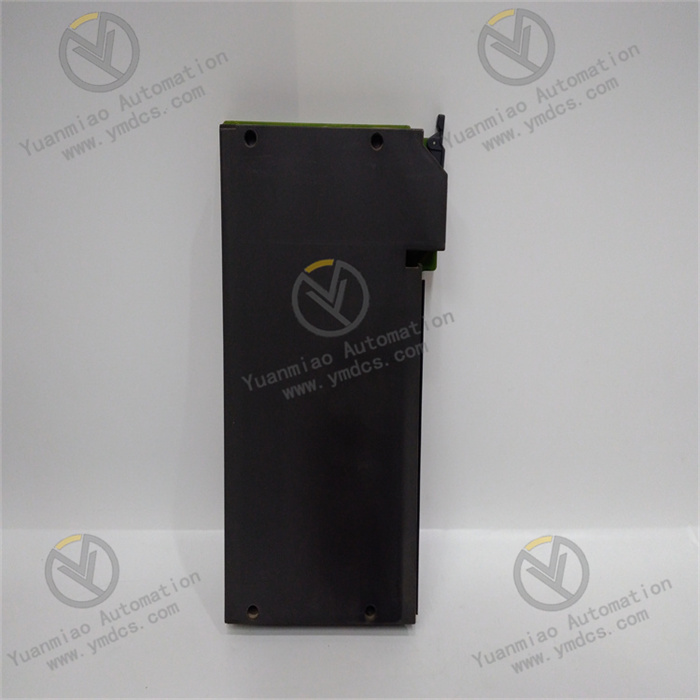

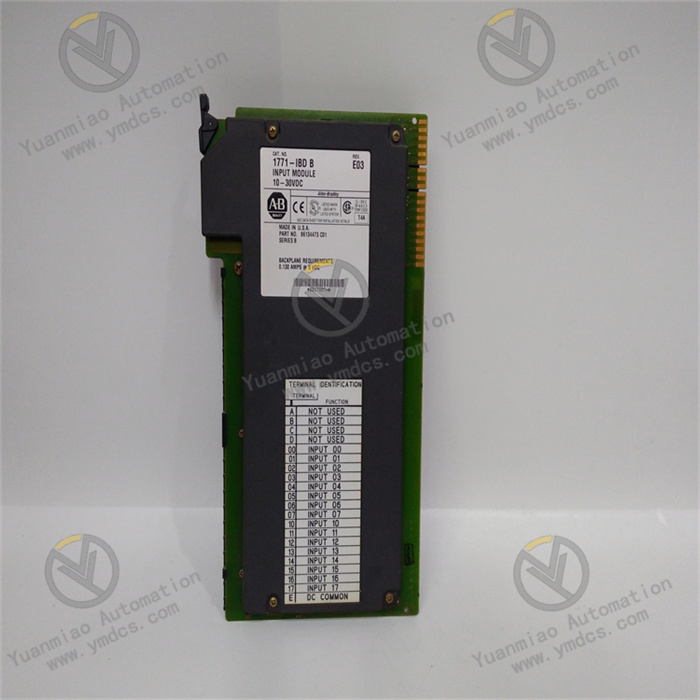

1771-IBD | Allen Bradley Discrete Input Module

Description: The Allen-Bradley 1771-IBD is a discrete input module from the 1771 product bulletin. It has Sixteen (16) 10-30VDC sink input channels with Minimum On-state Voltage 10VDC and Maximum Off-state Voltage of 5VDC. It is compatible for installation to all 1771 I/O chassis except 1771-A1, -A2 and A4.

Technical Specifications for 1771-IBD

The Allen-Bradley 1771-IBD is a discrete input that is part of the 1771 Product family. This module is a single slot width component that mainly features Sixteen (16) 10-30VDC discrete inputs channels. It is mounted to any of the available 1771 chassis except for 1771-A1, 1771-A2 and 1771-A4. Discrete input modules such as 1771-IBD are typically used to interface field signaling devices such as switches, sensors, auxiliary contacts that represent the state of the process. It is especially compatible for use with ON/OFF; 1 or 0 or binary operating devices. The 1771-IBD comes with Eighteen (18) LED status indicators that provides information regarding the module status and the signal status present at each input channel of the module. It also comes with a Field Wiring Arm with compatible replacement part number of 1771-WH. Field Wiring Arms are used to provide modular wiring method as they can be removed from the module when terminating signals. Additionally, they contribute to ease of maintenance as they can be removed and installed to compatible modules without the need of disconnecting the attached wires. The 1771-IBD requires a minimum input current of 4.5mA at 10VDC and 15mA at 30VDC while the Minimum Off-state Current of 2.0mA @ 5VDC. It has an input signal delay of 1ms for low to high signal transition and 1ms or 6ms for High to low signal transition as well. It has a rated power dissipation of 7.3 Watts (max.), 1.0 Watts (min.)and Thermal dissipation of 24.7 BTU/hr (max.), 3.4 BTU/hr (min.).

                                                                                      1771-IBD

                                                                                      1771-IBD
