1771-IFMS | Allen Bradley Fast Millivolt Input Module

Description

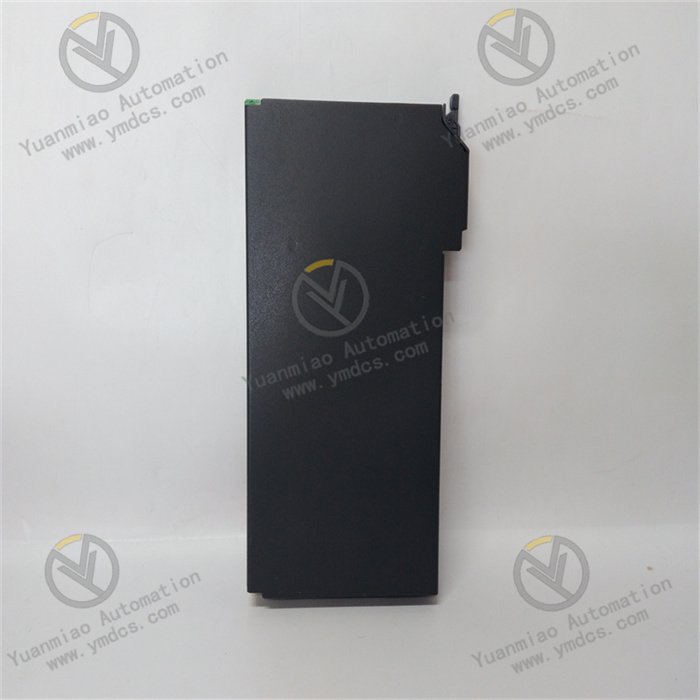

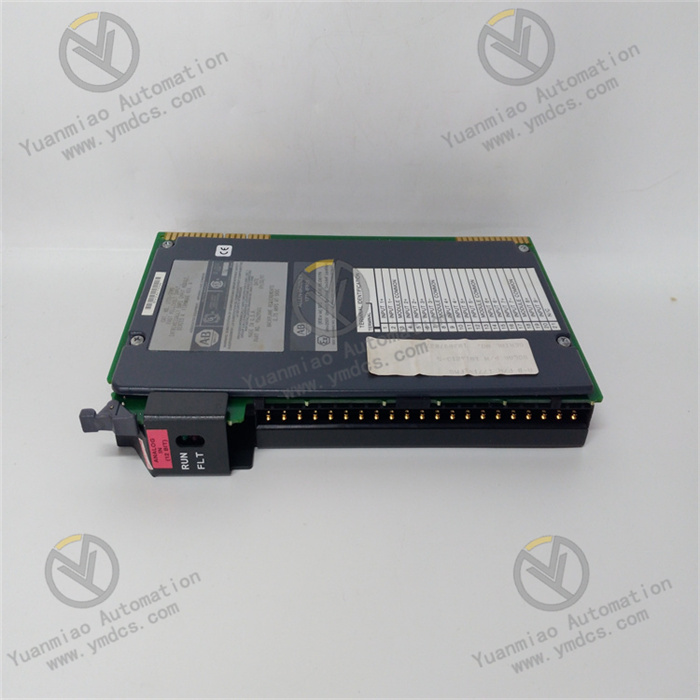

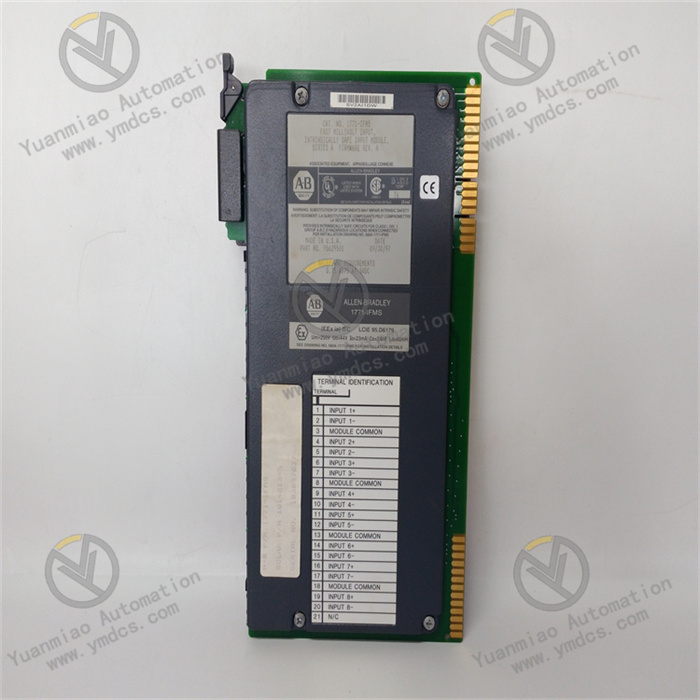

1771-IFMS | Allen Bradley Fast Millivolt Input Module

Description: The Allen-Bradley 1771-IFMS is an intrinsically safe fast millivolt input module. This module features Eight (8) differential, low level inputs with input voltage range of 0-50 mV with resolution of 12-bit binary and accuracy 0.1% of range @ 25 °C.

Technical Specifications for 1771-IFMS

The Allen-Bradley 1771-IFMS is an analog input module that is part of the 1771 product bulletin.  This module is compatible for use with PLC5 processors and features Eight (8) input channels.  This module is specifically a intrinsically safe, fast millivolt input module. The 1771-IFMS accepts input voltage signal of 0-50 mV with resolution of 12-bit binary.  It has an accuracy of 0.1 % of range when operated at 25 Degree Celsius.  It has a linearity of +/- 1 LSB and repeatability of +/- 1 LSB with input voltage protection of 32V.  The module is designed to be operated at a maximum input voltage range of +/- 10VDC. The input resolution of the 1771-IFMS module is 12-bit binary.  The accuracy is 0.1% of the range at 25 degrees Celsius.  The linearity and repeatability are both +/-1 LSB.  The input overvoltage protection rating is 32 Volts.  The module input impedance is 1 megaohm.  The common-mode rejection is 100 dB (at 60 Hertz).  The backplane current draw for the 1771-IFMS module is 0.75 Amps at +5 Volts DC.  The wiring arm which is compatible with the 1771-IFMS module is the 1771-WG.  The recommended range for field wiring arm screw torque is from 0.8 to 1.0 N-m.  The enclosure of the 1771-IFMS module is open and the module complies with the T6 North American temperature code.  The working temperature range is from 0 to 60 degrees Celsius.  The relative humidity range is from 5 to 95%, non-condensing.  The non-operating and operating shock ratings for the 1771-IFMS module are 30 G and 15 G, respectively.  The equipment connected to the non-intrinsically safe side must not generate or use voltages that are greater than 250 Volts RMS

                                                                                      1771-IFMS
