1771-IXE | Allen Bradley Thermocouple/Millivolt Input Module

Description

1771-IXE | Allen Bradley Thermocouple/Millivolt Input Module

Description: The 1771-IXE module is available from Allen-Bradley/Rockwell Automation. It is an isolated type of analog input module from the Allen-Bradley/Rockwell Automation PLC 5 series of controllers and controller components. The 1771-IXE isolated analog input module can be used with all of the PLC 5 series Bulletin 1771 chassis. It ships with an Allen-Bradley 1771-WI wiring arm that it needs to be connected to for operation. The 1771-IXE isolated analog input module is both a thermocouple input module and a millivolt input module.

Technical Specifications for 1771-IXE

The Allen-Bradley 1771-IXE is a PLC 5 Analog Input Module.  It is a Thermocouple/Millivolt Input Module.  This module utilizes Block Transfer Read and Write (BTR) and (BTW) instructions to transfer input data words from its memory to the PLC processor.  The 1771-IXE requires a single-slot for installation in a 1771 I/O chassis and needs no external power supply.  The 1771-IXE module has 8 floating differential inputs for thermocouple or millivolt input ranges which includes types E, J, K, T, R, and S thermocouples and +/-100 millivolts.  Either 8 inputs are allowed of the same type or 4 each of 2 different types.  The 1771-IXE includes cold junction compensation with a range of 0 to 60 degrees Celsius and +/-0.5 degree Celsius accuracy.  It has a selectable temperature scale of Celsius or Fahrenheit with a temperature resolution of 1 degree Celsius or 1 degree Fahrenheit and a millivolt resolution of 10 µV. The Allen-Bradley 1771-IXE requires a backplane current load of 750mA at 5V and has a channel update time of 50 milliseconds per 8 channels.  Its wiring is connected to the 1771-WI field wiring arm eliminating the need for disconnecting the wires when replacing the module.  The 1771-IXE has a maximum power dissipation of 4.25 Watts and maximum thermal dissipation of 14.5 BTU/hour.  Keying bands must be put between pins 20 to 22 and pins 24 to 26 which accept only this module.  The 1771-IXE module has high and low-temperature alarms that are selectable by the user.  It contains a green RUN and a red FLT indicator on the front panel for power and fault status.  During power-up, it performs self-diagnostics and reports its status.  It provides open-circuit detection in case thermocouple fails.  The 1771-IXE automatically calibrates offset and gain for each channel, eliminating the need of potentiometers.

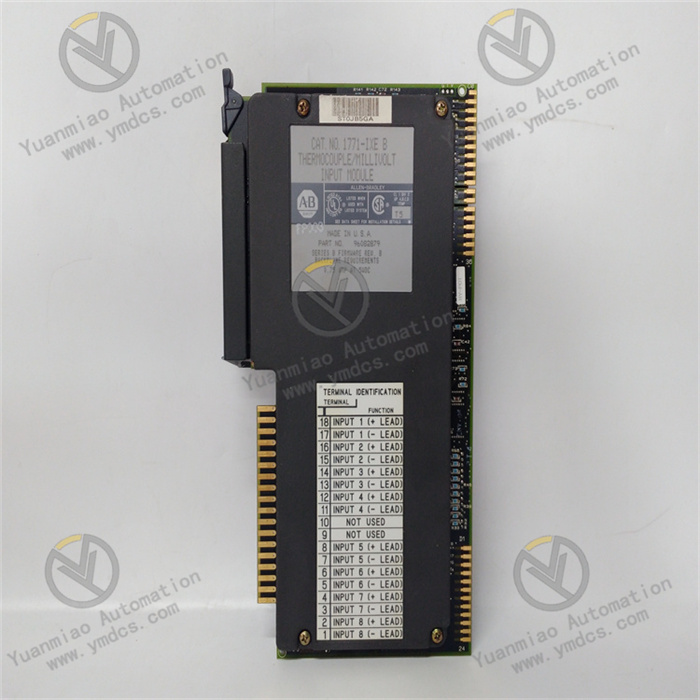

                                                                                      1771-IXE

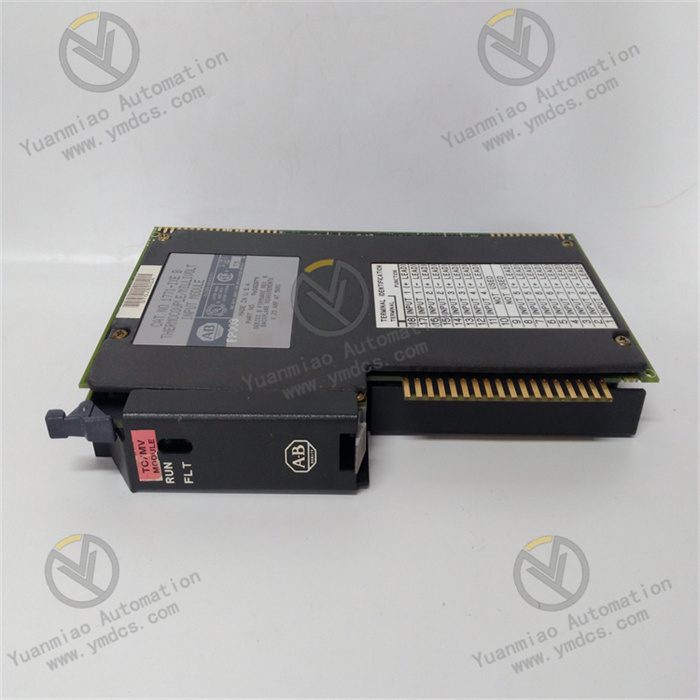

                                                                                      1771-IXE

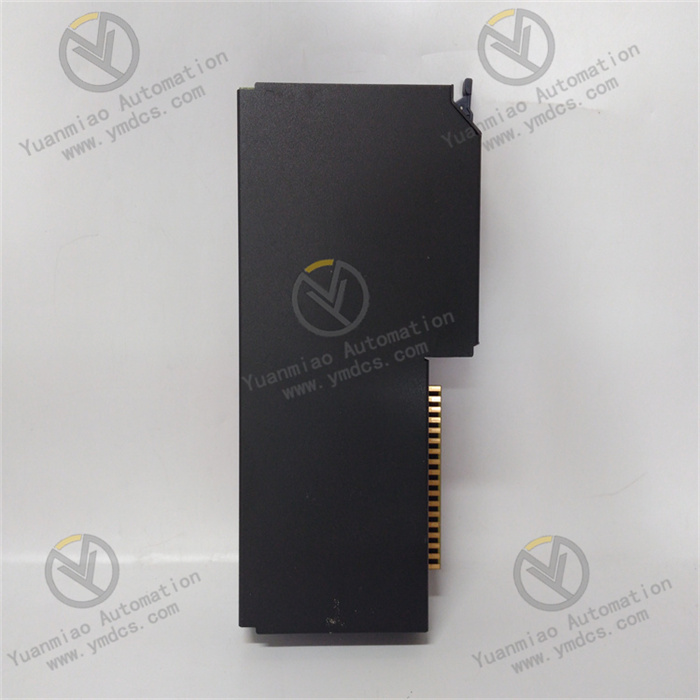

                                                                                      1771-IXE
