1771-OFE2 | Allen Bradley Analog Output Module

Description

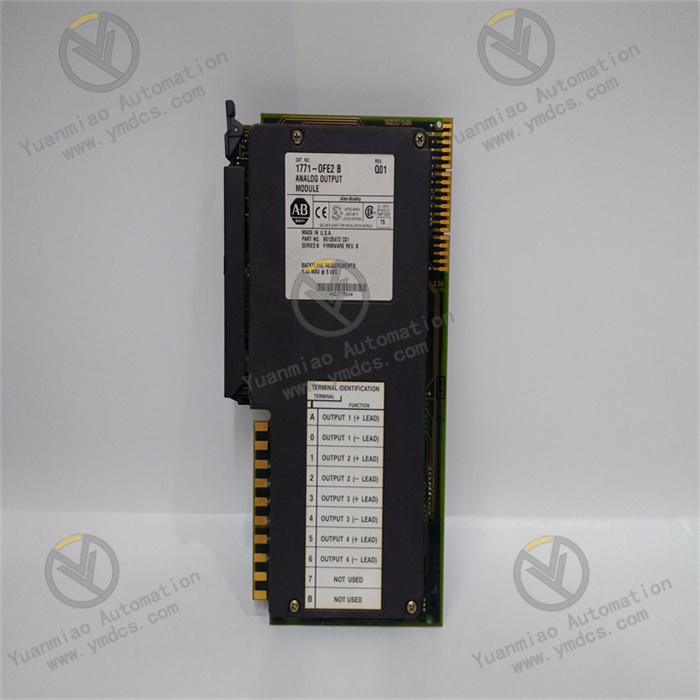

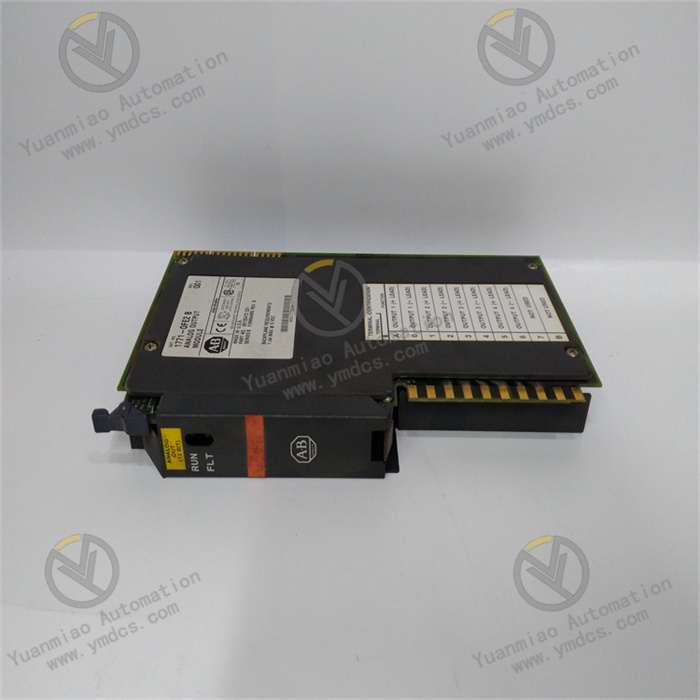

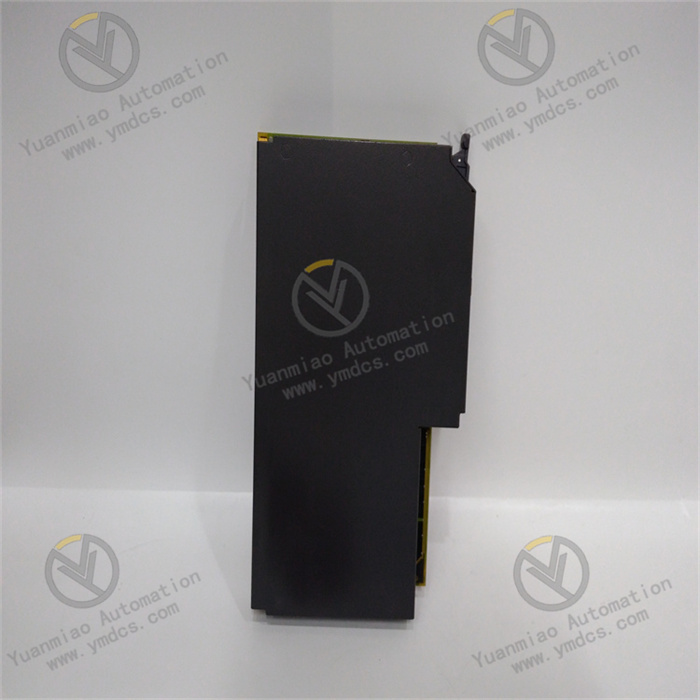

Description: The Allen-Bradley 1771-OFE2 is an analog output module with individually isolated channels. This module is part of the 1771 product bulletin that features Four (4) output channels that delivers 4-20 mA output current. It occupies a single slot of any 1771 I/O chassis. This module has digital resolution of 12-bit binary.

Technical Specifications for 1771-OFE2

The Allen-Bradley 1771-OFE2 is an analog output module from the 1771 Product family. It features Four (4) individually isolated analog output channels that delivers 4-20 mA output current signal. This module is typically used for controlling Final Control Elements (FCE) such as Variable Frequency Drives (VFD), Dampers, Louvers, Valves and other equipment and devices. It may also be used to implement the output of a Proportional + Integral + Derivative (PID) controller to implement automatic control of an analog loop. Additionally, this module may also be used to transmit signals to measuring, receiving and recording elements such as Signal Isolators, signal converters, panel meters, data loggers and other similar instruments. The 1771-OFE2 module has 4 output channels with isolation of 1000 Volt individually-isolated differential outputs. It requires a power of 1.4A at 5 Volts which is supplied from the I/O chassis backplane, thus no external power supply is needed. It has a channel update time of 8 milliseconds per 4 channels for BCD and 1.6 milliseconds per 4 channels for Natural Binary. It has a maximum power dissipation of 7.9 Watts and maximum thermal dissipation of 26.9 BTU/hour. The 1771-OFE2 includes a wiring arm to replace the module without disconnecting the wires. It can be installed in any slot in the 1771 I/O chassis and keying bands must be snapped between pins 10 to 12 and 26 to 28 for fixing that slot. The 1771-OFE2 module can convert raw data into engineering units such as degrees Celsius, degrees Fahrenheit, gallons/minute, and pounds/square inch. For diagnostics, it performs a self-check at start-up. If a fault occurs, the red fault indicator LED lights up and the green power status indicator LED remains off. The 1771-OFE2 has 1500 Volts of optoelectrical isolation that protects the system from overvoltage.
