1771-W Allen Bradley | Output Module

Description

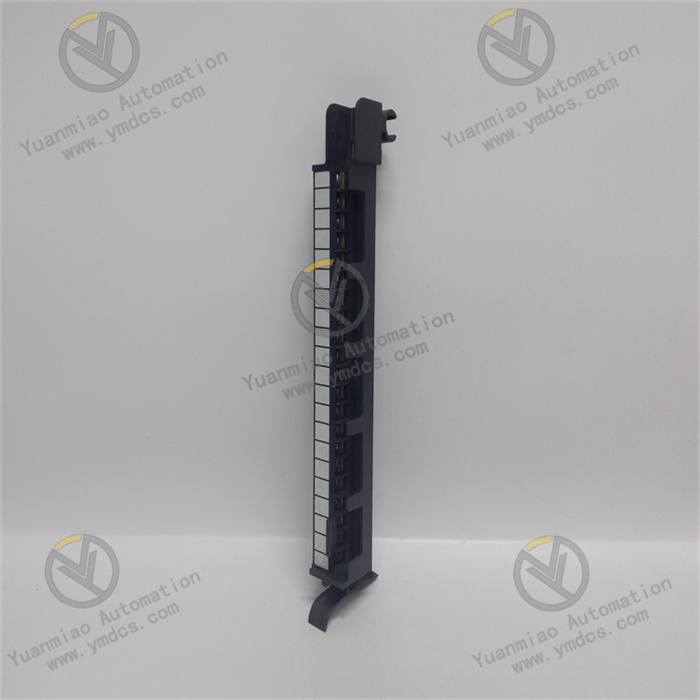

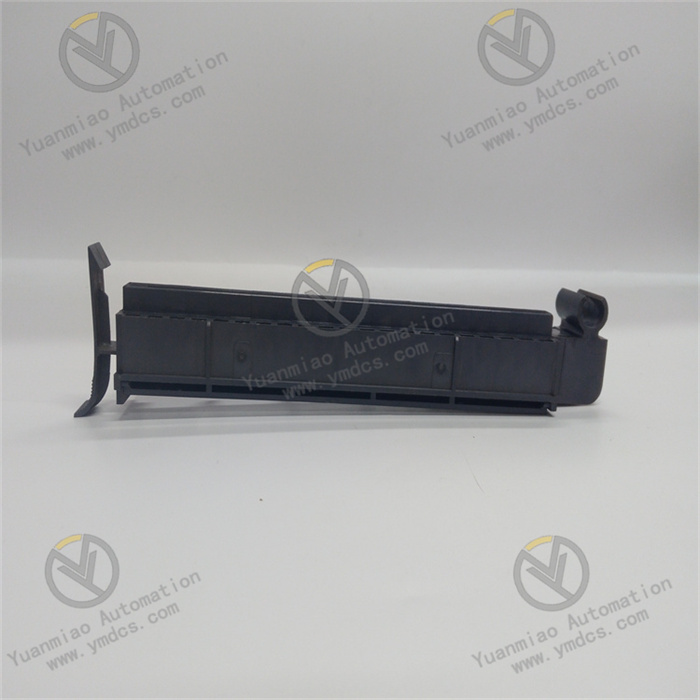

Allen-Bradley 1771-W Field connection arm

The MAX1771 is a boost switch controller that provides up to 90% efficiency for loads ranging from 30mA to 2A.  It accepts input voltages ranging from 2V to 16.5V and has a preset output voltage of 12V, although this can be adjusted using two resistors. In terms of power control schemes, there are generally three types: PFM (Pulse Frequency Modulation), PWM (Pulse Width Modulation), and PFM-PWM.  The MAX1771 is optimized for efficiency under input voltage and all load conditions by using a PFM-PWM scheme [0]. PFM is a type of power control scheme that adjusts the frequency of the input voltage to maintain a constant output voltage.  PWM, on the other hand, adjusts the width of the input voltage pulses to regulate the output voltage.  PFM-PWM is a hybrid of PFM and PWM, which uses PFM at light loads and PWM at heavy loads to optimize efficiency [0]. Here are some pros and cons of each power control scheme: PFM: • Pros: High efficiency at light loads, low output ripple voltage • Cons: Not suitable for heavy loads, variable switching frequency can cause electromagnetic interference (EMI) issues PWM: • Pros: Suitable for a wide range of loads, constant switching frequency reduces EMI issues • Cons: Lower efficiency at light loads, higher output ripple voltage PFM-PWM: • Pros: Combines the pros of both PFM and PWM, optimized for efficiency under all load conditions • Cons: More complex than PFM or PWM alone, may require more components

The 1771-W is a powerful piece of equipment by Allen Bradley that is intended for operation in industrial environments with Degree 2 Pollution levels. Belonging to Series B, this contact output module is suitable for overvoltage Category II applications, in which it can be used to switch resistive loads only (not capacitive or inductive). The module is compatible with most 1771 Series B contact modules, including the 1771-ID, 1771-ODZ, 1771-OZL, 1771-ID01, 1771-OYL, 1771-OD, 1771-OW, and the 1771-OR. The 1771 I/O chassis clamp allows for ‘swing-away’ operation, allowing easy access the module. With an integral locking tab, the module offers optimal connection integrity. Fabricated with an industrial-grade thermoplastic, the 1771-W features one connection point for every required input or output, plus any other connection points necessary for both line and input signal power, as well as ground or return. The fused Wiring Arm provides maximum fuse protection for all outputs and makes it possible to carry out fuse replacement without necessarily having to remove the module from its chassis. In this 16-output module, losing a single circuit won’t affect any other available signals. The module can concurrently switch all 32 outputs to isolate loads with a 12A maximum load per module. A maximum current of 2.5A is drawn from the input/output chassis power supply. The nominal backplane current of this module is rated at 1.8A. The 1771-W is entirely configurable with the 1771-WH Wiring Arm, which can act as a direct replacement. The input/output Conversion System provides a quick and efficient way of converting 1771 PLC-5 to 1756 ControlLogix. This conversion is achieved without disconnecting any field wires that are already existent in the swing arm, which also minimizes the risk of wiring faults. The available swing arms have been designed in such a way that they fit directly into the I/O conversion module’s edge connector. All cables are pre-wired and come with a conversion connector on one end, plus a Removable Terminal Block on the opposite end. When replacing fuses, ensure that each fuse holder is removed without damaging or changing the output module. The 1771-W output contact is highly sensitive to electrostatic discharge so the provided guidelines should be followed closely, as this might cause internal damage and interfere with normal operation. To discharge potential static, the user can either wear a protective wrist strap or touch a grounded object.

                                                                                        1771-W

                                                                                        1771-W

One year warranty, special discount after sale

The company focuses on DCS, PLC, robot, large servo four systems

The main products are all kinds of module/card, controller, touch screen, servo drive

The company's advantages: the supply of imported original products, professional production of accessories

Fast delivery time, complete supply, The seller has more than $1526000 worth of industrial control products inventory

We Can transport to the world！！！

Company: Guizhou Yuanmiao Automation Equipment Co., LTD

Address: Hongshan Hotel, No.42 Hongshan Lake Road, Beijie Street, Xixiu District, Anshun City, Guizhou Province (Bailing. No. 9, 14th floor, Doubletree by Hilton

① 24-hour email reply (12 hours);

② For shipment to countries outside Asia, please contact the seller.

[Disclaimer]

Guizhou Yuanmiao Automation Equipment Co., LTD. We sell new products and discontinued products, independent channels to purchase such special products. Guizhou Yuanmiao Automation Equipment Co., Ltd. is not an authorized distributor, distributor or representative of the featured products on this website. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Descriptions, descriptions or sales of products bearing these names, pictures, trademarks, brands and logos are for identification purposes only and do not imply any association or authorization with any rights holder.
