1794-ASB | Allen Bradley Remote I/O Adapter Module

Description

1794-ASB | Allen Bradley Remote I/O Adapter Module

Description: The Allen-Bradley 1794-ASB is a Flex I/O communication adapter. This adapter is a DIN rail mounted device, which features One (1) Remote I/O (RIO) communication port, used for connecting Flex I/O rack to RIO capable controllers. It supports 57.6Kbps, 115.2Kbps, and 230.4kbps communication rate with an input voltage requirement of 19.2 - 31.2 VDC. It supports installation of up to Eight (8) Flex I/O modules.

Technical Specifications for 1794-ASB

The 1794-ASB is an Allen-Bradley Remote I/O communication Adapter module. This product belongs to the Flex I/O product family of distributed I/O modules. The 1794-ASB supports communication rate of 57.6Kbps, 115.2Kbps, and 230.4kbps. The module’s intended supply voltage range is 11VDC-31.2VDC, including 5% ac ripple while the nominal supply is 24VDC. It supports installation of up to Eight (8) Flex I/O modules, for successful implementation of distributed I/O architecture. This module has built-in status indicator such as Power LED, Adapter Active LED, Adapter Fault LED and Local Fault LED. This module is mounted to a standard DIN rail and has an open type enclosure which means the 1794-ASB requires installation inside an appropriate enclosure that protects the device from industrial element and contaminants. The maximum consumption of power is 450 mA from a constant 24 Volts DC power input. The maximum power dissipation is 4.6 Watts at 31.2 Volts DC and the thermal dissipation is 15.7 BTU/hour at 31.2 Volts DC. The 1794-ASB’s dimensions are approximately 4x 2x 4 inches and weigh only 6 ounces. The Allen-Bradley 1794-ASB is an obsolete Adapter Module and is part of the FLEX I/O series. It connects FLEX I/O modules to I/O scanner ports via a communication network. It has a built-in power supply which converts 24VDC to 5 VDC for the backplane in order to power the FLEX I/O modules. It also functions with the Allen Bradley PLC 3 and 5 series. Additionally, the 1794-ASB can recognize the safe state data for the FLEX Integral analog modules, and it is capable of using thirty-two point FLEX I/O units. The user must use a 1794-ASB Series D or later module when utilizing the FLEX Integral analog modules in the configuration of your setup.

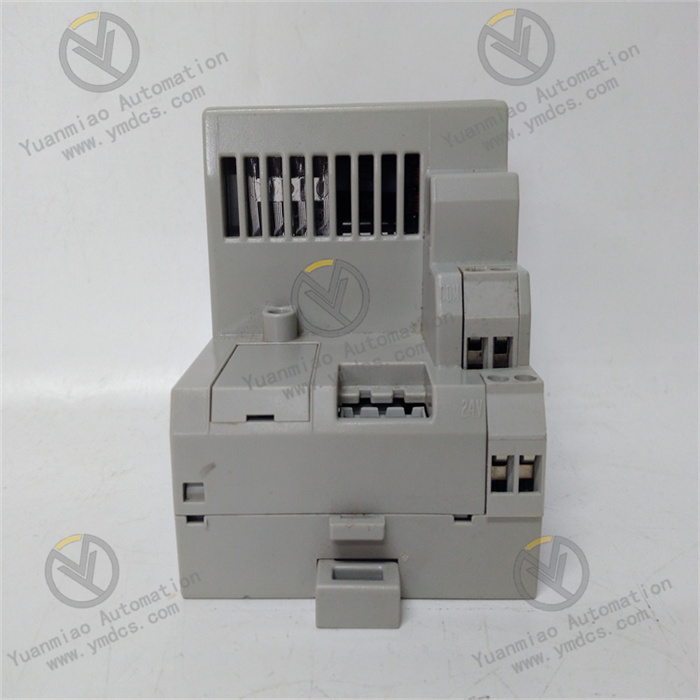

                                                                                       1794-ASB

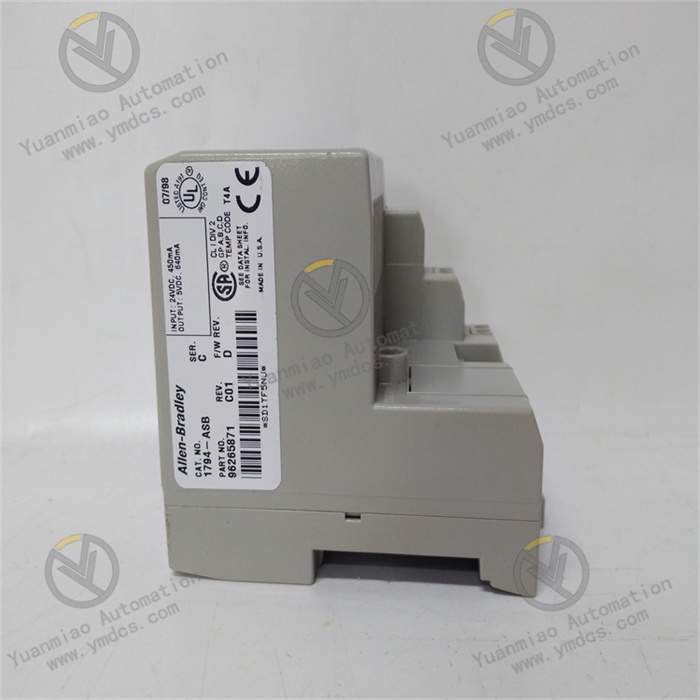

                                                                                       1794-ASB

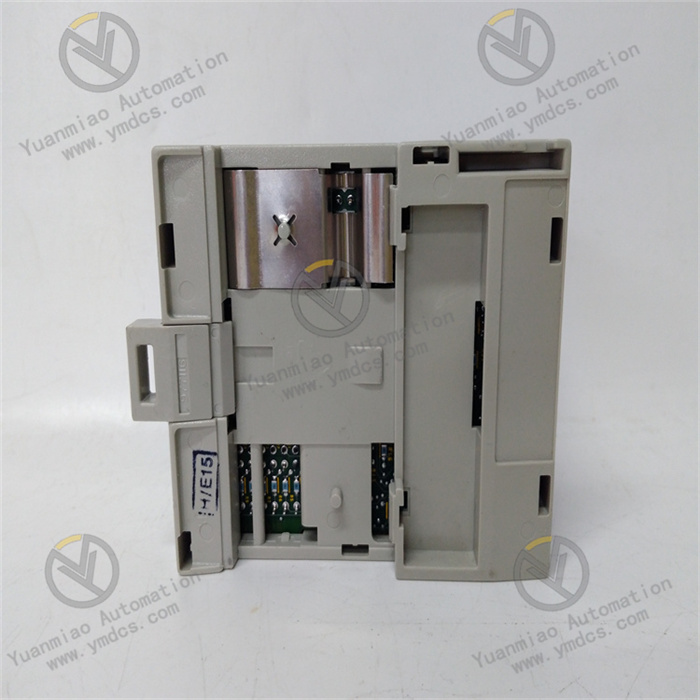

                                                                                       1794-ASB

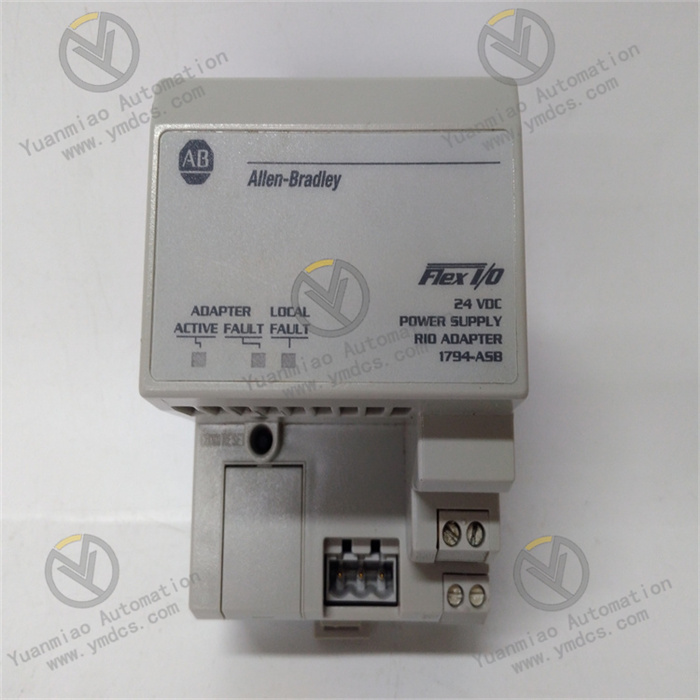

                                                                                       1794-ASB
