Description

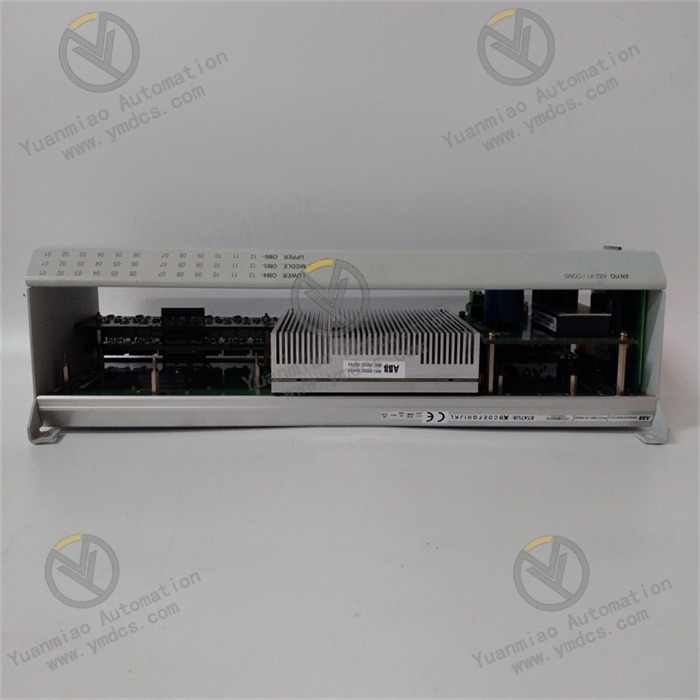

ABB PPD113B01-10-150000 3BHE023784R1023

General Information

• Product ID:3BHE023784R1023
• ABB Type Designation:PP D113 B01-10-150000
• Catalog Description:PP D113 B01-10-150000: AC 800PEC

• Long Description:
• Containing:
  Slot ANYIO-1 (U4) CEX2-Bus RS422
  Slot ANYIO-2 (U5) Anybus/Modbus TCP
  Slot Opt. Mod.1 (U7) UF D128
  Slot Opt. Mod.2 (U8) UF D128
  Slot Opt. Mod.3 (U9) UF D128
  Slot Opt. Mod.4 (U10) empty
  Slot Opt. Mod.5 (U11) empty
  Slot Opt. Mod.6 (U12) empty

Additional Information

• Country of Origin:Switzerland (CH)
  China (CN)

• Customs Tariff Number:85371092

• Gross Weight:4.2 kg

• Invoice Description:PP D113 B01-25-111000: AC 800PEC

• Made To Order:No

• Minimum Order Quantity:1 piece

• Order Multiple:1 piece

• Package Level 1 Gross Weight:4.2 kg

• Package Level 1 Units:1 piece

• Part Type:New
• Product Net Height:450 mm

• Product Net Length:145 mm

• Product Net Weight:2.59 kg

• Product Net Width:100 mm

• Product Type:Undefined

• Quote Only:No

• Selling Unit of Measure:piece

• Stocked At (Warehouses):Baden, Switzerland

• WEEE Category:Product Not in WEEE Scope

DC Excitation System The DC (Direct Current) system consists of two types of exciters they are main exciter and pilot exciter. The exciter output is adjusted by the automatic voltage regulator to control the alternator output terminal voltage. Across the field winding, the field discharge resistor is connected when the field breaker is open. These two exciters in the direct current system can be driven either by motor or by the main shaft. The main exciter voltage rating is about 400 V. The DC system figure is shown below. Advantages The advantages of the DC system are

• More reliable

• Compact in size

• Disadvantages

• The disadvantages of the DC system are Large size

• Voltage regulation was complex

• Very slow response

• AC Excitation System The AC (Alternating Current) system consists of a thyristor rectifier bridge and alternator which are connected directly to the main shaft. The main exciter in an alternating current system is either be separated excited or self-excited. This system is classified into two types they are rotor system or rotating thyristor system. The classification of the ac system is shown in the below figure.

Rotating Thyristor System The rotating thyristor or rotor system figure is shown below. The rotating portion of this consists of alternator field rectifier, a rectifier circuit, power supply, and an alternating current exciter or AC exciter. The controlled triggering signal is generated by the power supply and rectifier control. Disadvantages：The main disadvantage is the response rate of the thyristor is very low Brushless System The stator and rotor are the main components of the brushless alternator system. The stator body consists of the main stator and an exciter stator similarly the rotor assembly consists of the main rotor and the exciter rotor along with a bridge rectifier assembly mounted on a plate that is attached to the rotor. The exciter stator has residual magnetism when the rotor starts rotating AC (Alternating Current) output is generated in the exciter rotor coils and this output is passed through a bridge rectifier. The output passed through a bridge rectifier is converted into DC (Direct Current) and given to the main rotor. The moving main rotor generates AC in the stationary main rotor coils. The exciter plays a key role in controlling the output of the alternator. The DC magnetization current supplied to the rotor, which is the field of the main alternator thus if we increase or decrease the amount of current to the stationary exciter field coils, the output of the main alternator can be varied.  The brushless system is shown in the below figure. To the synchronous generator, the brushless system provides field current without using the slip ring and carbon brushes. The brushless exciter system coupled with a rotor shaft with 16 PMG (Permanent Magnet Exciter) and a three-phase main exciter with a silicon diode rectifier.  The permanent magnet exciter produces 400 Hz, 220 V AC supply. The alternator main rotor shaft coupled to the brushless exciter circuit through no brushes, no slip rings, and through rotor leads. The main output of exciter is connected to the SCR bridge in hallow shaft while permanent magnet exciter and the main exciter are connected to the solid shaft.
