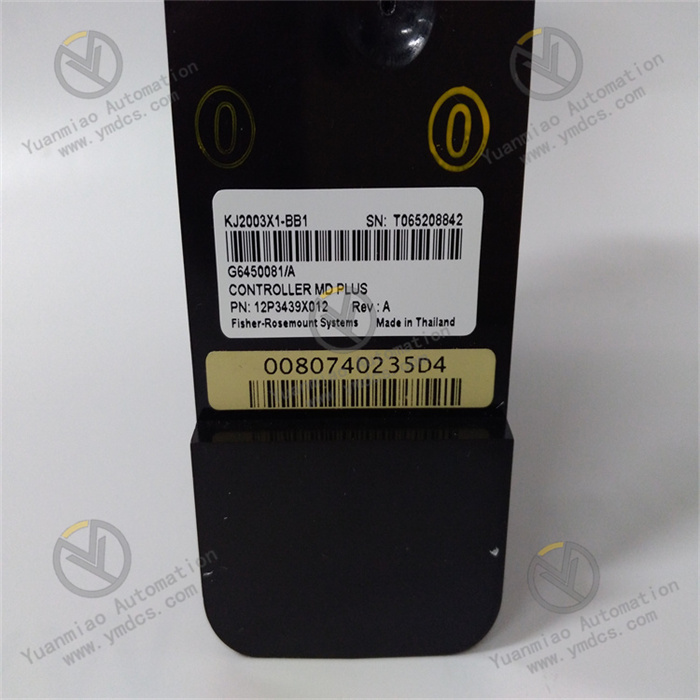

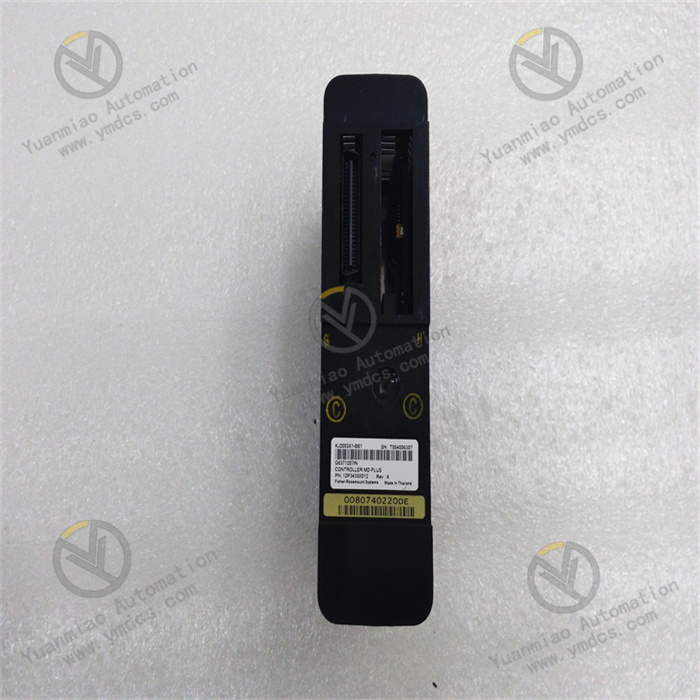

VE3006 KJ2003X1-BB1 | Emerson MD Plus Controller

Description

Power system features ◆ Wide input voltage range   ● The input voltage of the rectifier module is 120~290V (new equipment reaches 90 ~290V) ◆ High power factor, high efficiency   ● Power factor of 99%, efficiency of 88% ◆ Non-destructive hot swap technology, easy maintenance (small improvement to solve big problems) ◆ Network design, unmanned and remote monitoring (a variety of background monitoring) ◆ Advanced battery management function (intelligent comprehensive management)   ● Temperature compensation   ● Load power-off (LLVD) and Battery Low Voltage Protection (BLVD)   ● Charging current limit, timed balanced charging   ● Battery capacity calculation, online battery testing

System principle ◆ AC power enters the rectification part through the AC distribution branch; The +24V DC power obtained by the rectifier modules is connected to the DC power distribution and provided to the communication equipment in multiple channels. ◆ Under normal circumstances, the system runs in parallel floating charging state, that is, the rectifier module, the load, the battery work in parallel, the rectifier module in addition to supply power to the communication equipment, but also provide floating charging flow for the battery. ◆ When the mains power is off, the rectifier module stops working, and the battery supplies power to the equipment to maintain the normal operation of the equipment. ◆ After the mains is restored, the rectifier module supplies power to the equipment again, and charges the battery to supplement the consumed electricity. ◆ The monitoring module adopts the centralized monitoring method to manage AC power distribution and DC power distribution, and receives the operation information of the rectifier module through the RS485 interface and carries out the corresponding control. ◆ The monitoring module can also be connected to the local computer through RS485, RS232, and can be connected to the monitoring center through the Modem or other transmission resources (such as official channels, etc.) to realize the centralized monitoring network of the power system.

Serial communication module EIA-232-c (RS-232) module Eia-232 (RS-232) is compatible with single-ended data transmission up to 15 meters (50 feet). Data rate: Baud rate from 300 to 115.2K. Format: Asynchronous, 7-bit or 8-bit (configured by software), with full switching handling. Parity: None, base check, and parity check (software configurable). LED: For COM3 RX(receive) signals and TX(transmit) signals on EIA-232 (RS-232) communication modules. EIA-485-c (RS-485) module It complies with the EIA-485 (RS-485) standard and can transmit differential data up to 1,220 meters (4,000 feet). Data rate: Baud rate from 300 to 115.2K. Format: Asynchronous, 7-bit or 8-bit (configured by software). Parity: None, base check, and parity check (software configurable). LED indicator :A and B indicate the status of communication activity.
