1746-IB16 | Allen-Bradley SLC 500 Digital I/O Modules

Description

1746-IB16 | Allen-Bradley SLC 500 Digital I/O Modules

Description: The Allen-Bradley 1746-IB16 is an SLC500 module that features Sixteen (16) Discrete sinking input channels. It has One (1) group of input channels and operates at nominal signal voltage of 24VDC with operating voltage range of 10-30VDC. It is compatible for use with any SLC500 chassis.

 Technical Specifications for 1746-IB16

The Allen-Bradley 1746-IB16 is a medium density DC input module that is used to interface with signal devices that delivers a signal voltage range of 10-30VDC towards each of the input channel of the module. This module features Sixteen (16) input channels, rated for nominal input voltage of 24VDC, grouped into One (1) input group, having a single common terminal. This input module is mounted to any available I/O slot of the 1746-Chassis and draws backplane current of 0.05 A @ 5VDC.

The 1746-IB16 supports sinking wiring configuration only. It cab used to interface with electrical components such as switches including limit, proximity, pushbutton devices as well as auxiliary contacts of relays, contactors and other electronic devices. Each of the input channels of the 1746-IB16 exhibits a common signal delay duration of 8 ms for both On and OFF transitions, with maximum OFF-state voltage of 5VDC and maximum OFF-state current of 1 mA while the module’s nominal input current is 8 mA @ 24VDC.

The 1746-IB16 has a net heat dissipation of 0.22W on each input point and a total heat dissipation on the entire module is 3.6W. Its operating temperature ranges between 0 and 60 °C (32 and 140 °F) in a surrounding with 5-95% relative humidity, and when not in use, should be stored at a temperature range between -40 and 85 °C (-40 and 185 °F). The 1746-IB16 has a tested operational shock rating of 30G and is designed to withstand an operational vibration of 2.5G at 57-200 Hz operational frequency. It has a NEMA standard ICS 2-230 rated noise immunity and is UL-A196, CSA, and C-UL Class I, Division 2 Hazardous Environment-rated. It offers Electro-optical isolation tested at 1500V, between input terminals and control logic, and is UL, CSA, and CE-certified.

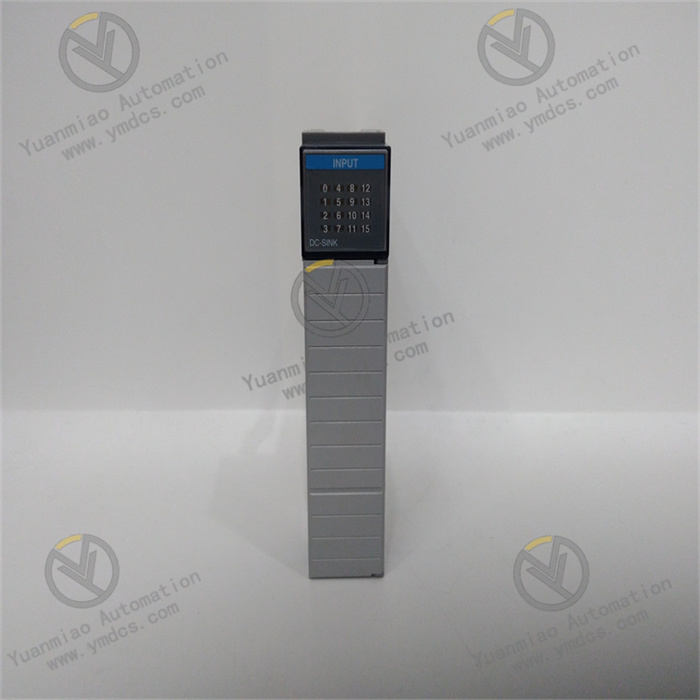

                                                                                      1746-IB16

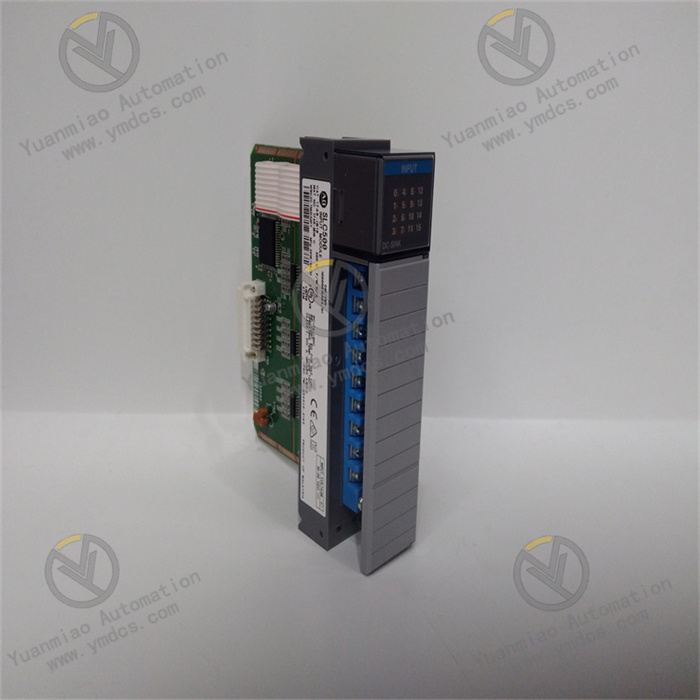

                                                                                      1746-IB16

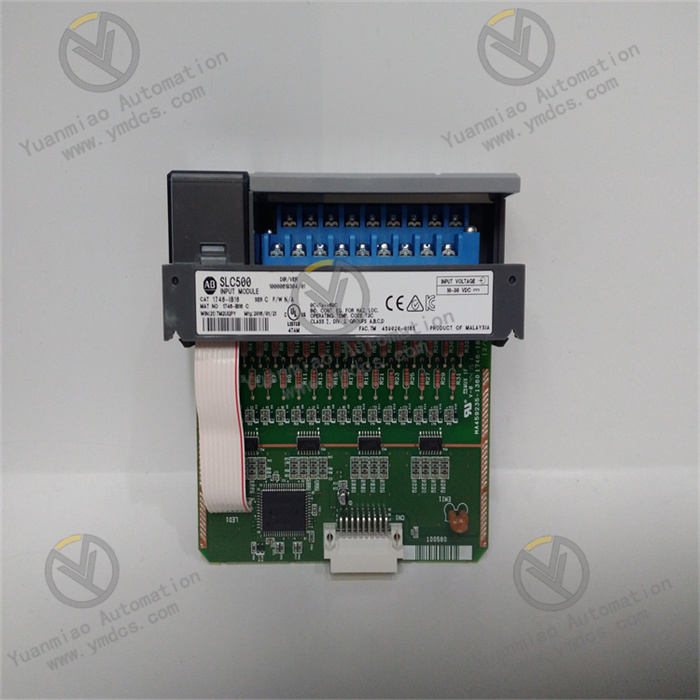

                                                                                      1746-IB16

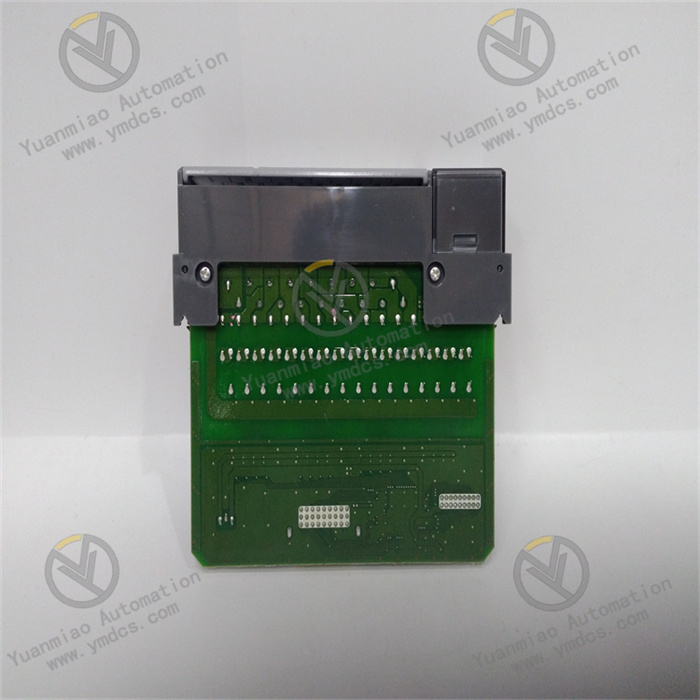

                                                                                      1746-IB16
