1747-L541 | Allen-Bradley SLC 5/04 Processor

Description

1747-L541 | Allen-Bradley SLC 5/04 Processor

Description: The 1747-L541 is a controller module for the SLC 500 Modular Hardware by Allen-Bradley. It comes with Memory or 16 KB, and built-in communication interfaces such as 9-Pin RS-232 and Data Highway Plus (DH+). It is capable of 4096 Inputs points and 4096 Outputs points with an Analog I/O count of 480, 16K words of user memory, and an I/O scan time of 0.225 milliseconds.

Technical Specifications for 1747-L541

The Allen-Bradley 1747-L541 is an SLC 5/04 processor that is part of the SLC 500 series, which also includes the 1747-L541, L542, and L543 controllers. It is a high-performance processor enhanced with faster communication and shorter program execution time. The SLC 5/04 comes with 16K, 32K, or 64K words of memory and it can control a maximum of 4096 input and output points. For communication, the 1747-L541 has a built-in DH+ channel that supports extended messaging capabilities and high-speed communication. It also has an RS-232 channel for supporting DF1 radio modem, DH-485, ASCII and Modbus RTU communications. For programming, it includes advanced math instructions and various additional instructions. It also supports remote I/O, DeviceNet pass-through, and indirect addressing.

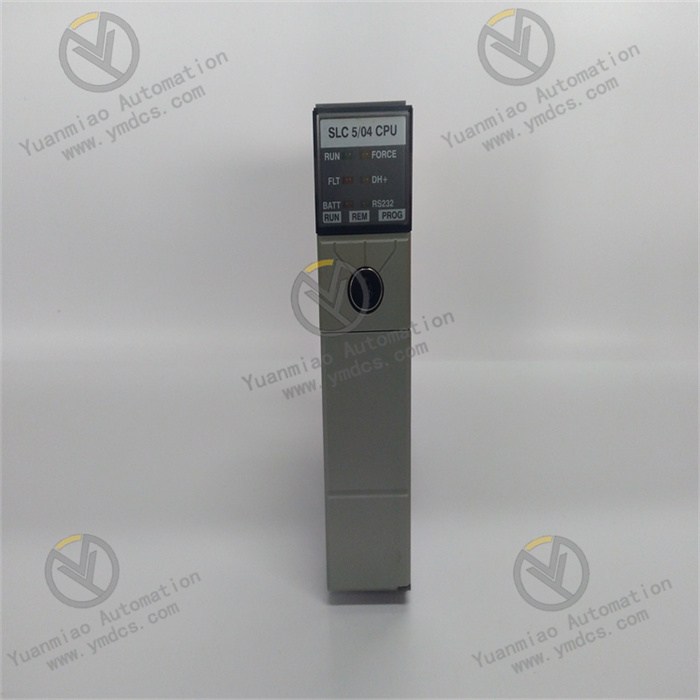

The 1747-L541 has a typical Program Scan Time per Keyword of 0.9 milliseconds and a typical I/O scan time of 0.225 milliseconds. It requires a backplane current load of 1 Amp at 5 Volts DC and of 200 mA at 24 Volts DC. It has a 1-millisecond Selectable Timed Interrupt (STI) and 0.5 milliseconds Discrete Input Interrupt (DII). For program and data table storage, it uses a 1747-M13 flash-based memory device with a 64 KB memory. The SLC 5/04 includes a 3-position key switch on the front panel for selecting the Run, Remote, or Program modes. The 1747-L541 SLC 504 has RUN, FLT, BATT, FORCE, DH+, and RS-232 LED status indicators for troubleshooting and diagnostics. The SLC 500 series of processors has a simple, cost-effective design with a history of good installations in applications such as HVAC control, SCADA, and material handling.

The 1747-L541 controller requires an SLC 500 rack for mounting and connection to the electronic backplane. A system power supply is also needed to power-up the internal circuitry of the processor through the electronic backplane.

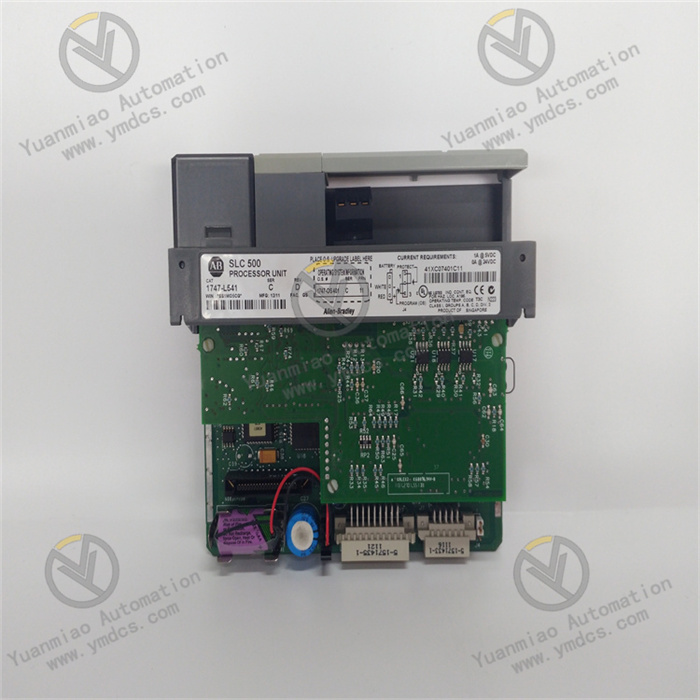

                                                                                      1747-L541

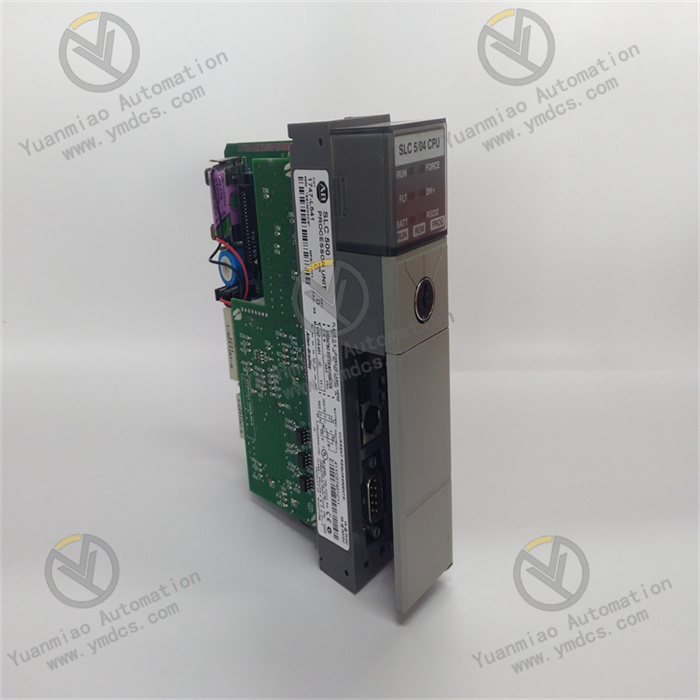

                                                                                      1747-L541

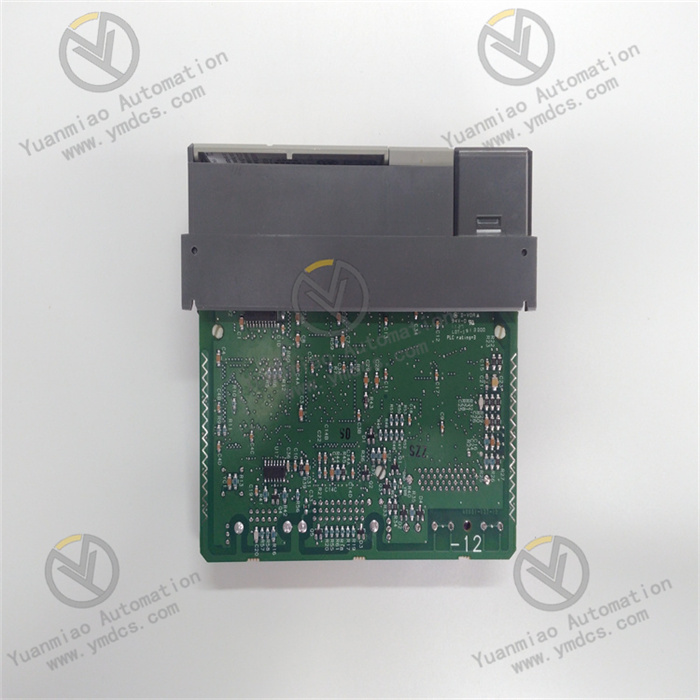

                                                                                      1747-L541

                                                                                      1747-L541
