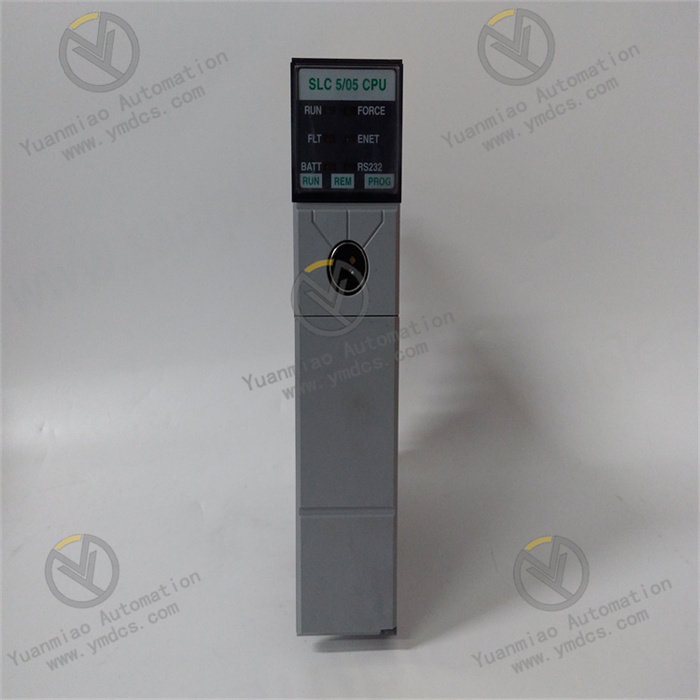

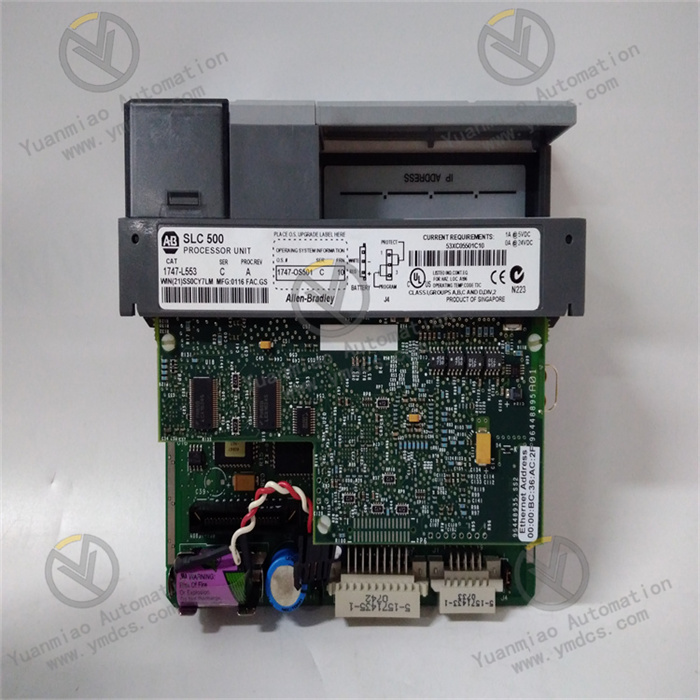

1747-L553 | Allen-Bradley SLC 5/05 64K Controller

Description

1747-L553 | Allen-Bradley SLC 5/05 64K Controller

Description: The Allen-Bradley/Rockwell Automation 1747-L553 module is a CPU or Central Processor Unit module from the Allen-Bradley SLC 500 and SLC 5/05 series. This CPU has CMOS RAM built into it that supports battery backup, and it can also support an Allen-Bradley 1747-M13 memory module that provides it with 64 K of additional memory. The 1747-L553 CPU module has an Ethernet channel and an RS-232, DH-485, DF1, or ASCII port. This CPU is one of the most flexible CPUs that is available from the SLC 500 and SLC 5/05 series because it can handle up to 64 connections. This means that the 1747-L553 CPU module can communicate with 64 devices or applications simultaneously.

Technical Specifications for 1747-L553

The 1747-L553 is an SLC 5/05 processor that belongs to the SLC 500 Programmable Logic Controller (PLC) platform. This controller has the highest memory among the SLC 5/05 category which is 64 KB memory. It has integrated RS32 Sub-D 9-Pin connector for establishing peer-to-peer communication with locally installed Human Machine Interface (HMI) or a programming workstation. It also has an integrated Ethernet that is ideally used for communication over a long distance, minimum of 100 meters at 10/100 mbps transmission speed. It is also ideal for establishing connection to multiple devices at a time. These Two (2) port may also be used simultaneously without affecting the processor’s logic execution capability.

It contains a PLC-5 processor-based advanced instruction set. The 1747-L553 can stand alone or be distributed throughout the system for SCADA applications. The 1747-L553 processor has a total user memory of 64K words with 60K words for data/program and 4K words for just data. It has up to 4096 inputs, 4096 outputs, and 480 local analog I/O. It has a program scan time per keyword of 0.9ms and 0.225 milliseconds I/O scan time. The 1747-L553 has a backplane current of 1 Amp at 5 Volts DC and 0 Amps at 24 Volts DC. It has a maximum of 3 local I/O chassis with maximum 30 module I/O slots in local I/O chassis.

For communication, it uses Ethernet and RS-232 ports that can be configured for connection to the 1761-NET-AIC converter. For programming, the 1747-L553 supports RSLogix 500 software. It has standard battery-backed RAM and Flash backup memory. With this processor, Remote I/O Scanner module and DeviceNet Scanner module can be additionally installed to configure I/O via Universal Remote link or DeviceNet network. The 1747-L553 processor provides shorter bit-instruction execution time of 0.37 milliseconds and 10/100 Mbps Ethernet port. Its DH+ communication port is 3 times faster than the DH-485 port. It has all the features of other SLC 5/03 processors like online programming, flash memory upgrades, floating-point math, and a built-in real-time clock, key-switch, and calendar. The 1747-L553 is intended for use in clean and dry industrial environments with a 0 to 60 degrees Celsius operating temperature and a 30G operating shock.

                                                                                      1747-L553

                                                                                      1747-L553
