1756-L73 | Allen-Bradley | Controller

Description

1756-L73 | Allen-Bradley | Controller

Description: The Allen-Bradley 1756-L73 controller is a standard controller model from the Allen-Bradley ControlLogix product line. It is a ControlLogix 5570 type of controller that can handle 100 programs per task at a time and up to 32 tasks at a time. The 1756-L73 ControlLogix 5570 controller supports several communication options, including the ControlNet, Ethernet/IP, DeviceNet, Synchlink, Remote I/O, and the Data Highway Plus device networks. It is also compatible with several third-party device networks. The 1756-L73 ControlLogix 5570 controller also supports controller redundancy and up to 500 controller connections at a time.

Technical Specifications for 1756-L73

The Allen-Bradley 1756-L73 is a ControlLogix processor module that is part of the Logix 5570 product category. This is a Programmable Automation Controller (PAC) that is compatible for use in controlling large applications in the factory or process automation applications. It supports simplex configuration and high-availability (redundant) controller configuration for increased system availability.

The 1756-L73 is capable of interfacing 128,000 input and output signals as well as 4000 analog Input and output signals. It can be implement local I/O configuration where I/O modules are installed within the same chassis where the controller is installed or distributed I/O topology where expansion I/Os are installed remote from the processor and provides I/O through the extended communication bus. This controller supports Ethernet I/P, DeviceNet, ControlNet, Synchlink, as well legacy communication protocols such as Data Highway Plus (DH+), Remote I/O (RIO) and 3rd party protocols. It may also be configured to communicate with gateways and protocol converters. Similarly, this controller is compatible with any Allen-Bradley encompass partner ControlLogix modules.

The 1756-L73 can use up to 8 MB of user memory with 0.98 MB of Input/Output memory. In addition, it has 128,000 total and digital I/O and 4000 analog I/O at most. The required current draw at 1.2V DC is 5 mA and 800 mA current draw is required at 5.1V DC. The 1756-L73 has 2.5 W power dissipation and 8.5 BTU/hour thermal dissipation. The isolation voltage is continuous at 30 V with basic insulation, tested at 500V AC for 60 seconds. Using a USB 2.0, it can reach up to 12 Mbps at its full speed. Approximately, it only weighs 0.25 kg with a 1-slot width and an open-style enclosure.

The module is chassis-based at any slot for the 1756 chassis series. The 1756-L73 controller’s power requirement is a standard 1756 power supply. Its wiring category is 3 on USB ports. The 1756-L73 controller has an operating temperature of 0-60 deg. Celsius and its non-operating temperature is -40-85 °. Celsius. The maximum surrounding temperature that it can operate at is 60°. Celsius with 5 - 95% non-condensing relative humidity. Its operating vibration is 10 - 500 Hz is 2 g and its operating shock is 30 g operating shock while its non-operating shock is 50 g. It can reach 45 g when an SD card was installed.

                                                                                        1756-L73

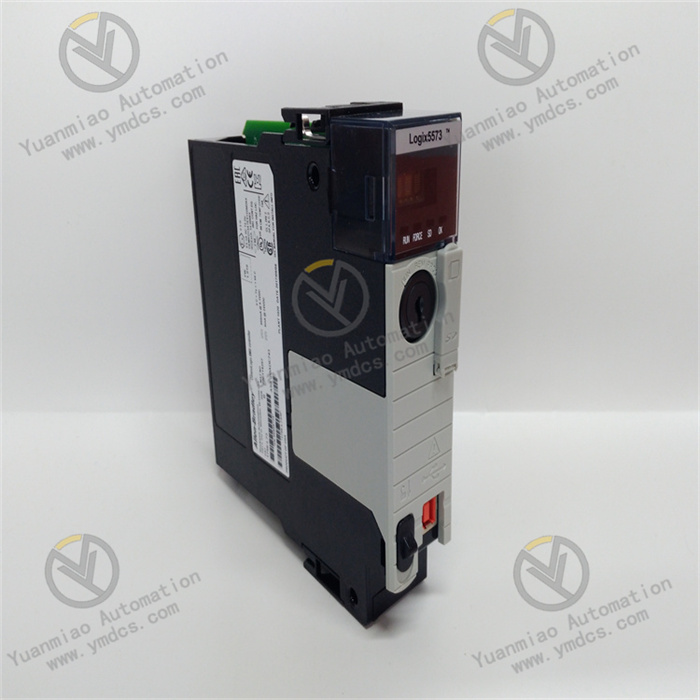

                                                                                        1756-L73

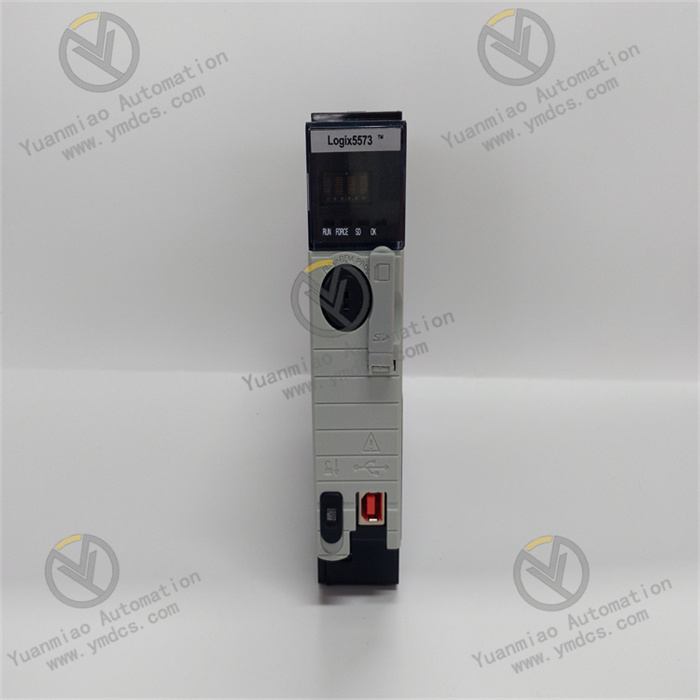

                                                                                        1756-L73

                                                                                        1756-L73
