Description

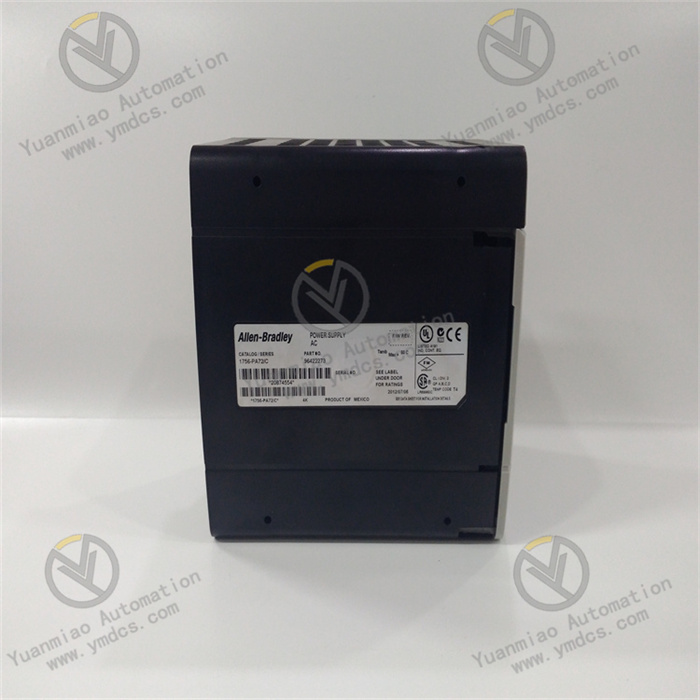

Description: The Allen-Bradley 1756-PA72 is a ControlLogix Standard Power Supply. This Power Supply has an input Voltage of 85-265VAC with Nominal supply of 120V/240VAC. It has a Current capacity of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F).
Technical Specifications for 1756-PA72
| Manufacturer | Rockwell Automation |
| Dimensions | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
| Weight | 0.95 kg (2.10 lb) |
| Module Type | Standard DC Power Supply |
| Series | ControlLogix |
| Part Number/Catalog No. | 1756-PA72 |
| Brand | Allen-Bradley |
| Nom Input Voltage | 120/240VAC |
| Input Voltage Range | 85-265VAC |
| Isolation Voltage | 250 Volts Continuous |
| Max Inrush Current | 30 Amperes |
| Current Capacity | 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC |
| Hold Up time | 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz |
| Location | 1756 Chassis Left Side |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Input Voltage | 120-240 Volts AC |
| Voltage Range | 85-265 Volts AC |
| Input Power | 100 Watts |
| Input Frequency | 47-63 Hertz |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series A or B |
| Location | Chassis - Left Side |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
The Allen-Bradley 1756-PA72 is a Standard Power Supply that is mainly used to deliver power to the backplane of a 1756 ControlLogix chassis, enabling each of module attached to the chassis to operate. The 1756-PA72 is designed to accept an input voltage range of 85-265 VAC with frequency range of 47-63 Hz. It delivers an output power of 75 W @ 0-60 °C (+32…+140 °F) with Current capacities of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC. The 1756-PA72 has a hold-up time of 5 cycles @ 85VAC, 50/60 Hz; 6 cycles @ 120VAC, 50/60 Hz; 6 cycles @ 200VAC, 50/60 Hz and 6 cycles @ 240V AC, 50/60 Hz. Hold-up time refers to the power supply’s reaction from the removal of the input voltage and DC power failure. The 1756-PA72 is installed at the left most location of the chassis. It has a dedicated slot assignment, outside the chassis and does not occupy a ControlLogix slot. It may be installed in different ControlLogix chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17, whether Series A, B and C. This power supply weighs approximately 0.95 kg (2.10 lb) with physical dimensions of 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.). This module, along the ControlLogix chassis has an open-type enclosure, therefore, requires installation inside an enclosure that protects the hardware from industrial contaminants and interferences. The 1756-PA72 may not be used is redundant power supply applications however, it may also be used in Distributed I/O architecture.
