ICS Triplex T9431 Extender Processor Module

ICS Triplex T9431 Extender Processor Module

Brand: Rockwell ICS Triplex

Product ID: T9431

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

ICS Triplex T9431 | Analog Input Controller Module


Description:The Rockwell Automation T9431 controller module is part of the AADvance Controllers series. It is an analog input module with 8 isolated inputs. The T9431 controller module operates with 0 to 32 Volts DC input voltage.


The ICS Triplex T9431 is an input controller module that is used in non-hazardous industrial environments and can be used with PLCs or programmable logic controllers . It has eight input channels and a maximum rated current of 260 milliamps. The input electrical ratings are 0 to 32 volts DC input voltage at 6.5 milliamps. The T9431 input controller module can be powered by the high-level system backplane and runs on DC voltage within the range of 18 to 32 volts DC . This module is an analog input module, and its rated power consumption is 3.3 watts. The module dissipates heat at a rate of 11.3 BTU per hour and weighs 10 ounces or 280 grams . It is a type of isolated input module that is an important part of any complete advanced system . The T9431 input controller module is designed to be flexible and easy to configure and set up. It is best suited for smaller applications [3]. It is capable of operating at temperatures up to 60 degrees Celsius or 140 degrees Fahrenheit and can withstand a maximum pollution degree of 2 . It can be mounted in a DIN rail or wall-mounted enclosure .

公司介绍 (1).png

Technical Specifications for T9431

ManufacturerAllen-Bradley/Rockwell Automation
SeriesAADvance Controllers
Part NumberT9431
Product TypeAnalog Input Module
Number of Inputs8

Input IsolationSupported
Voltage TypeDC
Input Voltage0 to 32 Volts DC
Maximum Pollution DegreePollution Degree 2
Maximum Operating Temperature60 degrees Celsius

The T9431 controller is an Allen-Bradley/Rockwell Automation AADvance Controllers series controller module. It is an analog type of input module. The T9431 input controller module has been approved for safe operation in applications in non-hazardous industrial locations. It can be used with PLCs or programmable logic controllers. This input controller module draws its power from the AADvance systems backplane, it runs on DC voltage, and its DC backplane voltage range is between 18 and 32 Volts DC. Its maximum backplane current rating is 260 milliamps. The T9431 input controller module’s input electrical ratings are 0 to 32 Volts DC input voltage at 6.5 milliamps. It has 8 input channels in total.


The Allen-Bradley/Rockwell Automation T9431 analog input controller module from the AADvance Controllers series has a rated power consumption of 3.3 Watts. Additionally, this controller module dissipates 11.3 BTU per hour of energy as heat. It weighs 10 ounces or 280 grams. The T9431 analog input controller module is an isolated type of input module. It is an essential part of any complete AADvance system. It is best suited for smaller applications but it is designed to be flexible and easy to configure and set up. The highest pollution degree that the T9431 analog input controller module can withstand is Pollution Degree 2. The highest air temperature rating that it can operate at is 60 degrees Celsius or 140 degrees Fahrenheit. The T9431 analog input controller module can be mounted in an enclosure on a DIN Rail or on a wall.

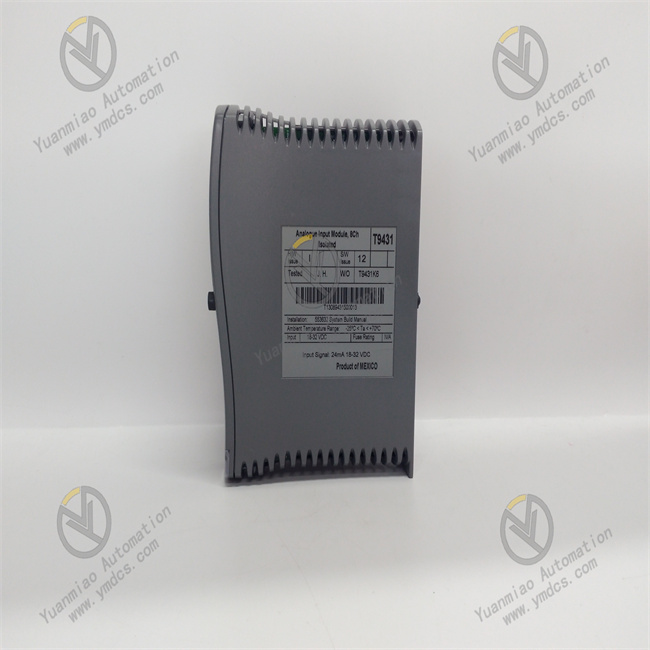

T9431 (4).jpg

                                                                      T9431

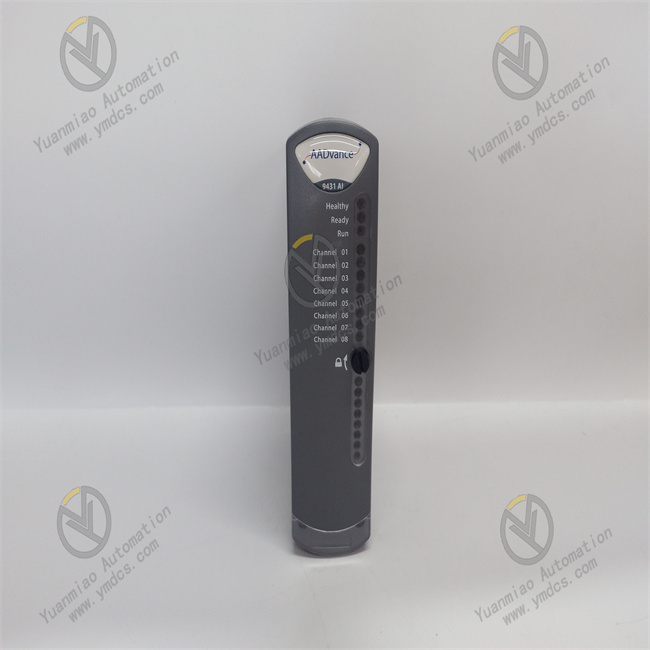

T9431 (3).jpg

                                                                      T9431

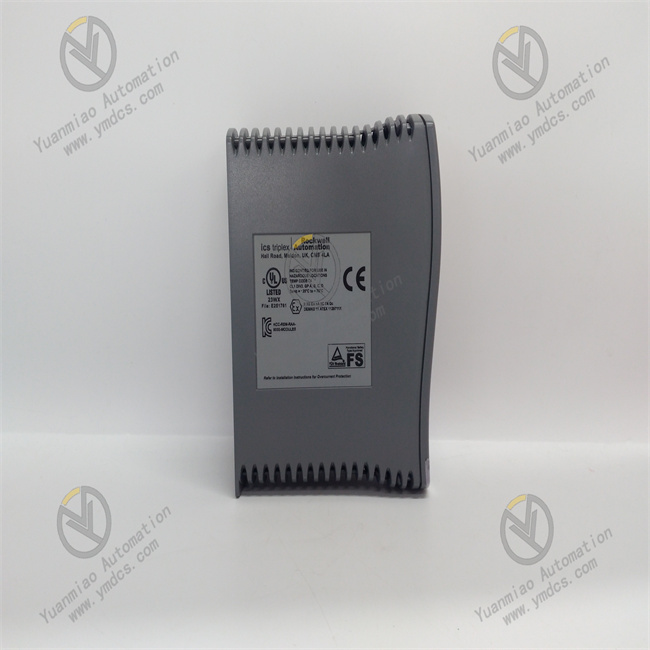

T9431 (1).jpg

                                                                      T9431
