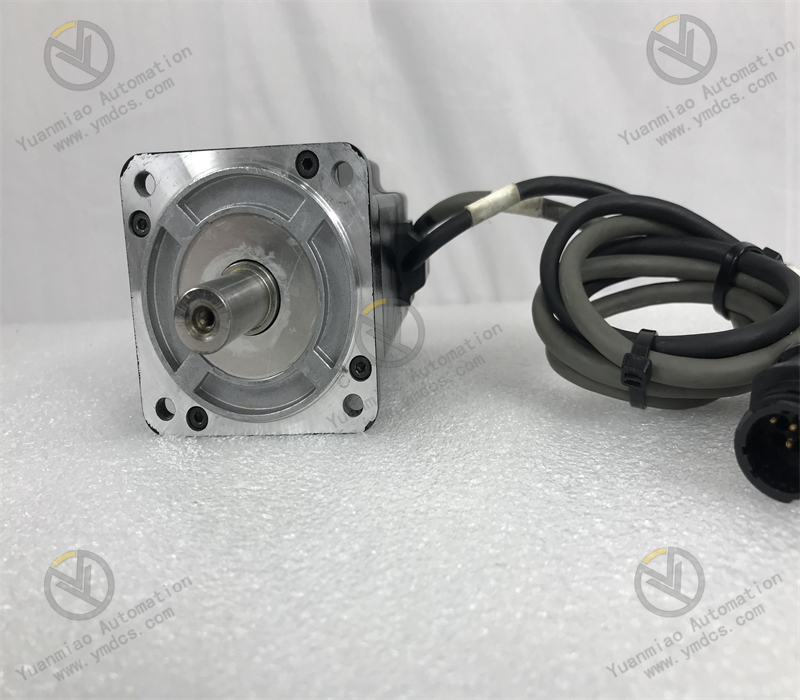

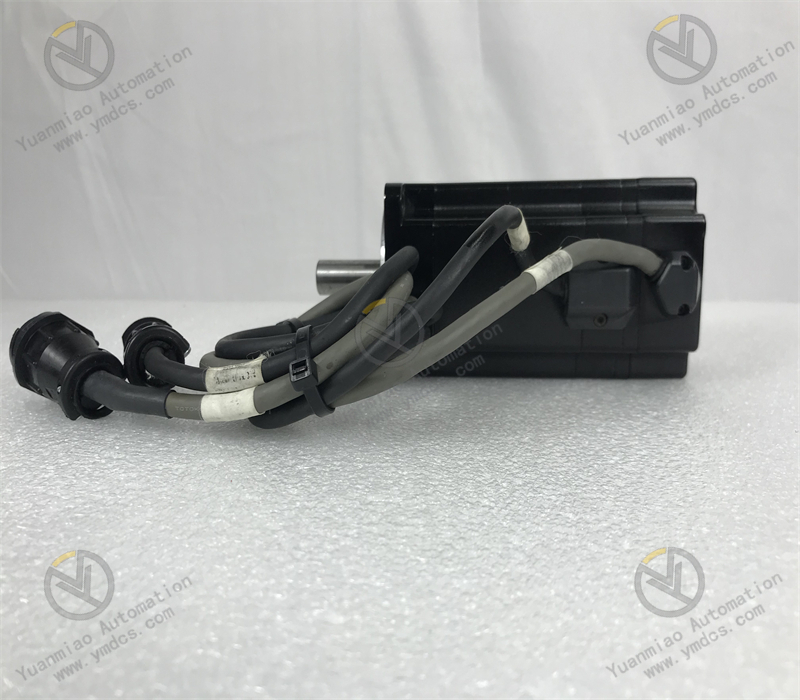

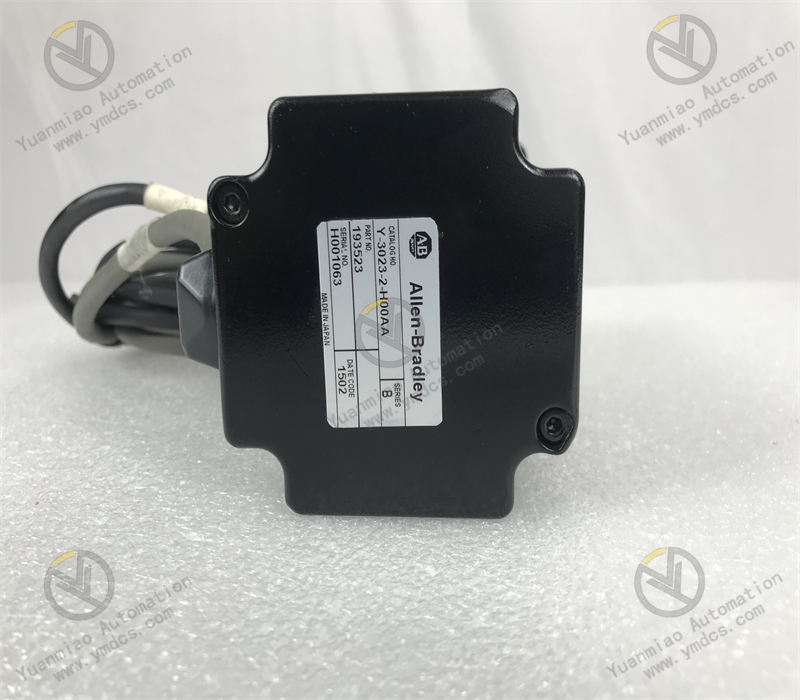

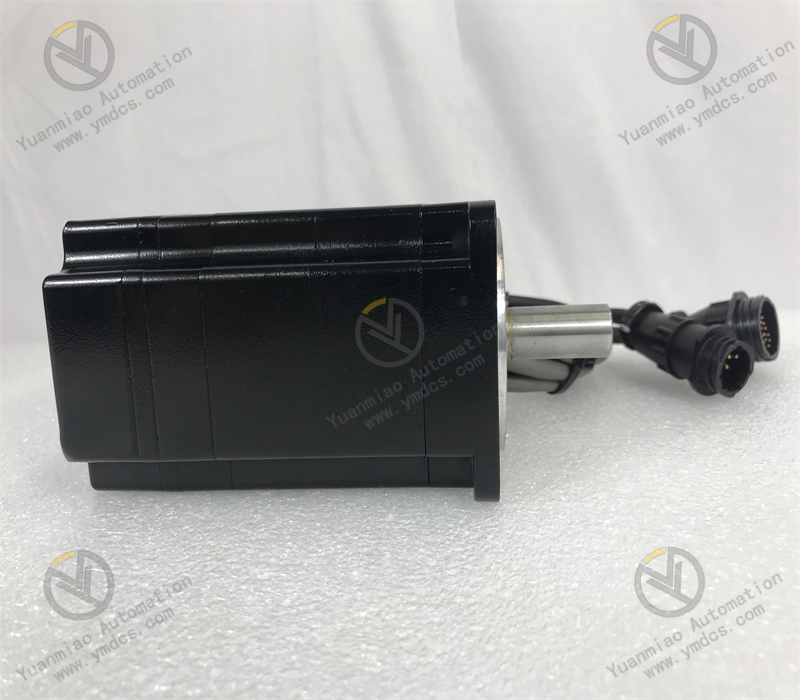

Y-3023-2-H00AA | Allen Bradley Brushless Servo Motor

Description

Description：The Allen-Bradley Y-3023-2-H00AA Brushless Servo Motor contains a Light Industrial Series Designator, a 3023 Frame Size, and a 230V ac Motor Winding Ke Designator. The Y-3023-2-H00AA operates with a 35 kg Max. Radial (FR) Load and 8 Poles.

Technical Specifications for Y-3023-2-H00AA

The Y-3023-2-H00AA is a brushless servo motor from Allen-Bradley’s Y series. Generally, its purpose is to perform sophisticated positioning and perfect speed applications, and acceleration control on industrial machines. It is a servo motor with largest frame size in the light industrial Y series. Its windings work with a 230 Volt AC voltage. Optical encoder line count is available and break option is not included. The Y-3023-2-H00AA servo motor high energy magnets (neodymium) provide low inertias for fast speeding up. Its speed rating is 4500 RPM. IP43 rated enclosure protection is obtained. The Y-3023-2-H00AA has 8 poles.

One of the features of the Y-3023-2-H00AA is a motor-mounted optical encoder line count with a 2000 P/R resolution and commutation signal. 5 Volt DC voltage is used for an encoder supply. A servo drive will be required to complete the servo drive positioning system. Allen-Bradley recommends the following servo drives to be used with any of the following servo motors: 1398-DDM-019, 1398-DDM-020, 2093-AM02, 2094-AM02, or 2098-DSD-020. The system connection with the servo motor shaft should be rigid in order to prevent couplings, pulleys, or belts from slipping over time and causing shaft deterioration. Connection cables should be made as short as possible. This module’s shipping weight is 3.9 kilograms (8.7 pounds). Its operating temperature range is 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). The Y-3023-2-H00AA servo motor should be used in a standard industrial surrounding. Do not expose them to high-level moisture or high ambient temperatures. The Y-3023-2-H00AA dimensions are 140 x 80 x 80 millimeters (5.57 x 3.15 x 3.15 inches.). Its shaft diameter is 16 millimeters (0.63 inches).
