DSDP150 57160001-GF | ABB Pulse Encoder Input Unit

Description

ABB DSDP150 57160001-GF Can receive detection channel controller

DSDP150 57160001-GF is a product manufactured by ABB, which is a pulse encoder input unit. It can be used for pulse counting, frequency measurement, and has inputs that can be connected to pulse generators with a frequency of up to 10 kHz. The following are some steps that could help a developer understand and work with this product: 1. Check the product documentation: ABB has extensive documentation for its products, and developers can refer to the product manual to understand how to use the DSDP150 57160001-GF. The documentation provides information on the specifications, installation, wiring, and programming of the module. 2. Understand the programming language: The DSDP150 57160001-GF can be programmed using the Control and Data Acquisition (CDA) programming language, which is a high-level programming language used for developing control applications. Developers can refer to the CDA programming manual to learn how to program the module. 3. Use ABB's programming software: ABB provides a programming software called Control Builder Plus (CBP) that can be used to program the DSDP150 57160001-GF. The software provides a graphical interface for programming the module and includes a comprehensive set of tools for configuring, programming, and testing the module. 4. Understand the input and output signals: The DSDP150 57160001-GF has inputs that can be connected to pulse generators with a frequency of up to 10 kHz. The module can be programmed to count the number of pulses and calculate the frequency of the input signal. The module also has outputs that can be used to control external devices. Developers need to understand the input and output signals to use the module effectively. 5. Test the module: After programming the DSDP150 57160001-GF, developers need to test the module to ensure that it is functioning correctly. ABB provides a testing tool called Control Validation Tool (CVT) that can be used to test the module. The tool provides a simulation environment that can be used to simulate the input and output signals and verify the module's functionality. 6. Troubleshoot issues: If developers encounter any issues while working with the DSDP150 57160001-GF, they can refer to the troubleshooting section of the product manual. The troubleshooting section provides information on common issues and their solutions. If the issue cannot be resolved, developers can contact ABB's technical support team for assistance.

General Information

• Product ID:57160001-GF

• ABB Type Designation:DSDP 150

• Catalog Description:DSDP 150 Pulse Encoder Input Unit for

• Long Description:DSDP 150 Pulse Encoder Input Unit for 12 V DC
  used for both pulse counting and frequency
  measurement and has inputs which can be
  connected to pulse generators with a frequency
  of up to 10 kHz.

  Note! This part is exempted from the scope of 2011/65/EU (RoHS)
  as provided in Article 2(4)(c), (e), (f) and (j) therein
  (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
  '- ABB Advant Master Process Control System)

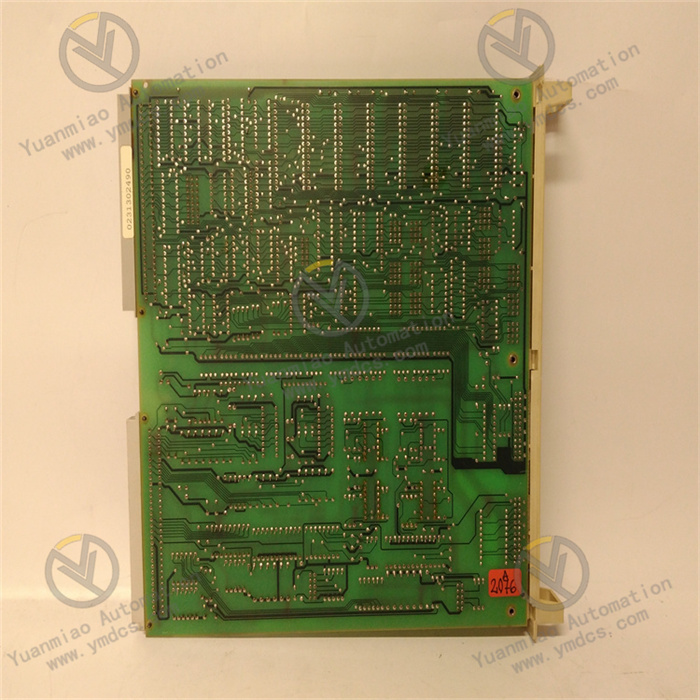

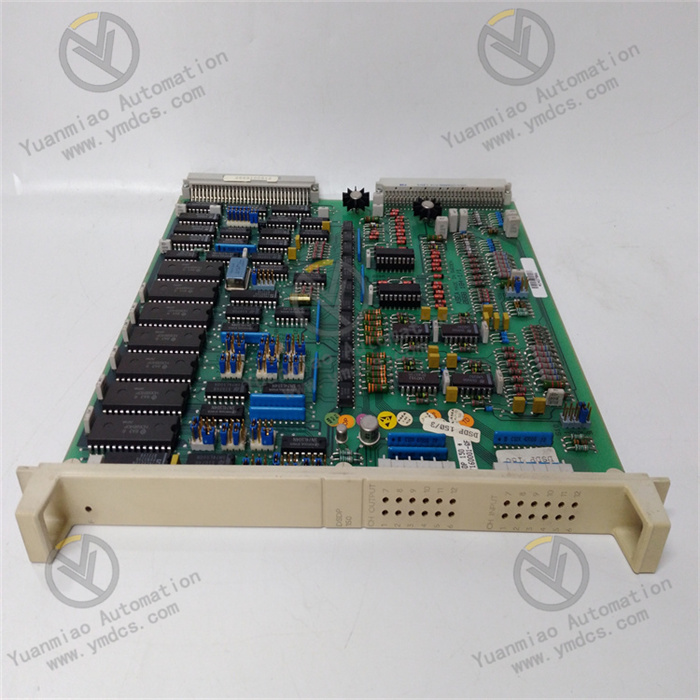

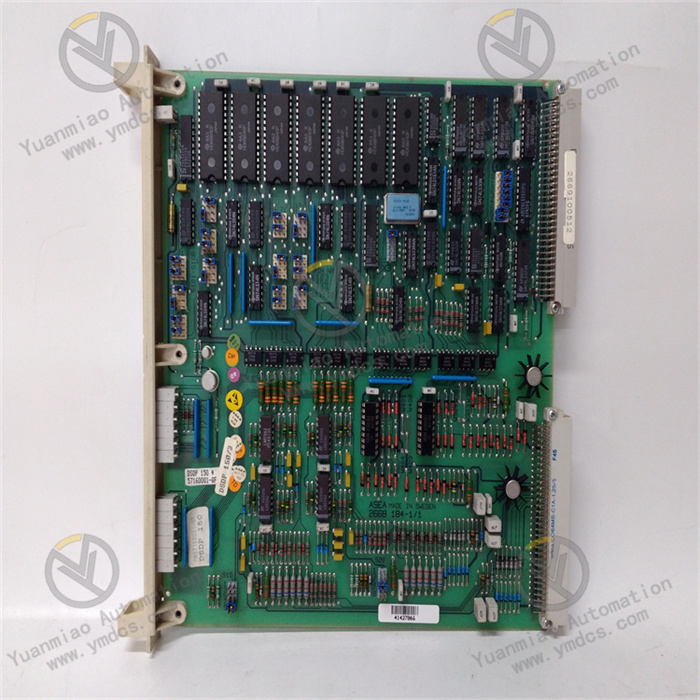

                                                                             DSDP150 57160001-GF

                                                                             DSDP150 57160001-GF

One year warranty, special discount after sale

The company focuses on DCS, PLC, robot, large servo four systems

The main products are all kinds of module/card, controller, touch screen, servo drive

The company's advantages: the supply of imported original products, professional production of accessories

Fast delivery time, complete supply, The seller has more than $1526000 worth of industrial control products inventory

We Can transport to the world！！！

① 24-hour email reply (12 hours);

② For shipment to countries outside Asia, please contact the seller.
