Description

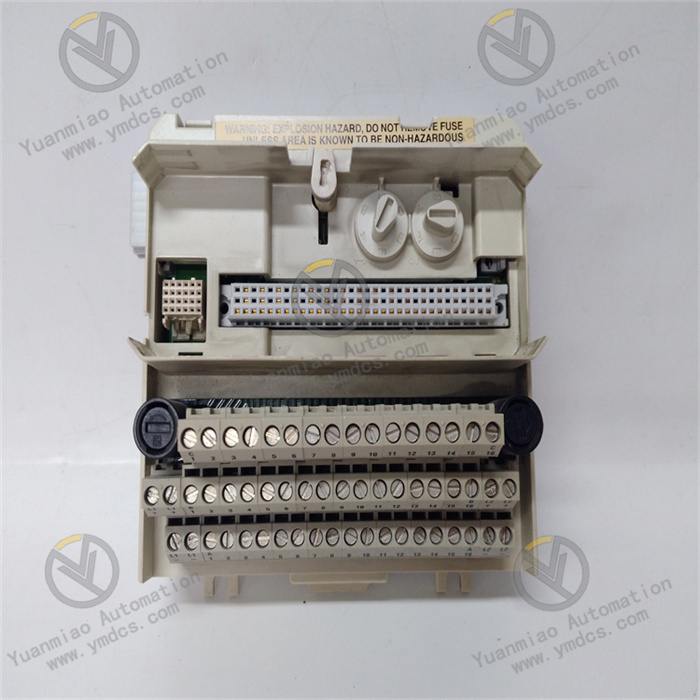

ABB TU830V1 3BSE013234R1 Extended Module Termination Unit
The TU830V1 MTU can have 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used to connect the field to the I/O module. It also contains a portion of the module bus.
Process voltages can be connected to two separately isolated groups. Each group has a 6.3A fuse. The maximum rated voltage is 50 V and the maximum rated current is 2 A per channel. The MTU assigns the module bus to the I/O module end in the next MTU. It also generates the correct address of the I/O module by moving the output position signal to the next MTU.
Function and advantage
● Install the I/O module using 3-wire connections, fuses, and field power distribution.
● Increased the field signal and process power connection to 16 channels.
● S7-1200 Programmable controller.
● Mechanical buttons prevent the insertion of incorrect I/O modules.
● DIN track locking device for grounding.
● DIN rail mounting.
General Information
- Product ID:3BSE013234R1
- ABB Type Designation:TU830V1
- Catalog Description:TU830V1 Extended MTU, 50V
- Long Description:Extended Module Termination Unit 2x16 signal terminals.
Ordering
- HS Code:853690-- Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp-holders and other connectors, junction boxes), for a voltage not exceeding 1,000 volts; connectors for optical fibres, optical fibre bundles or cables.- Other apparatus
- Customs Tariff Number:85369095
Dimensions
- Product Net Depth / Length:64 mm
- Product Net Height:120.5 mm
- Product Net Width:110 mm
- Product Net Weight:0.2 kg
Technical
- Number of Input Channels:N/A
- Number of Output Channels:N/A
Environmental
- RoHS Status:Following EU Directive 2011/65/EU
- WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
TU830V1 3BSE013234R1
One year warranty, special discount after sale
The company focuses on DCS, PLC, robot, large servo four systems
The main products are all kinds of module/card, controller, touch screen, servo drive
The company's advantages: the supply of imported original products, professional production of accessories
Fast delivery time, complete supply, The seller has more than $1526000 worth of industrial control products inventory
We Can transport to the world！！！
① 24-hour email reply (12 hours);
② For shipment to countries outside Asia, please contact the seller.
