AI880-1 3BSE028587R1 | ABB | PLC Automation Module

Description

AI880-1 3BSE028587R1 | ABB | PLC Automation Module

• Detailed data

  Resolution	12 bit
  Input impedance	250 Ω with shunt stick TY801 (at current input)
  Isolation	Groupwise isolated from ground
  Under/over range	Over range: +12% (0..20 mA), +15% (4..20 mA)
  Error	Max. 0.1%
  Temperature drift	Max. 50 ppm/°C
  Input filter (rise time 0-90%)	190 ms (HW filter)
  Update cycle time	10 ms
  Current limiting	Built in current limited transmitter power
  Maximum field cable length	600 meters (656 yards)
  Max input voltage (non destructive)	11 V d.c.
  NMRR, 50Hz, 60Hz	> 40 dB
  Rated insulation voltage	50 V
  Dielectric test voltage	500 V a.c.
  Power dissipation	2.4 W
  Current consumption +5 V Modulebus	45 mA
  Current consumption +24 V Modulebus	max 50 mA
  Current consumption +24 V external	4 + transmitter current mA, max 260 mA
• Environment and certification

  CE mark	Yes
  Electrical safety	IEC 61131-2, UL 61010-1, UL 61010-2-201
  Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
  Marine certification	ABS,BV,DNV-GL,LR
  Protection rating	IP20 according to IEC 60529
  Corrosive atmosphere ISA-S71.04	G3
  Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
  Pollution degree	Degree 2, IEC 60664-1
  Mechanical operating conditions	IEC/EN 61131-2
  EMC	EN 61000-6-4 and EN 61000-6-2
  Overvoltage categories	IEC/EN 60664-1, EN 50178
  Equipment class	Class I according to IEC 61140; (earth protected)
  Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
  RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
  WEEE compliance	DIRECTIVE/2012/19/EU
• Dimensions

  Width	45 mm (1.77”)
  Depth	102 mm (4.01”), 111 mm (4.37”) including connector
  Height	119 mm (4.7”)
  Weight	0.15 kg (0.33 lbs.)

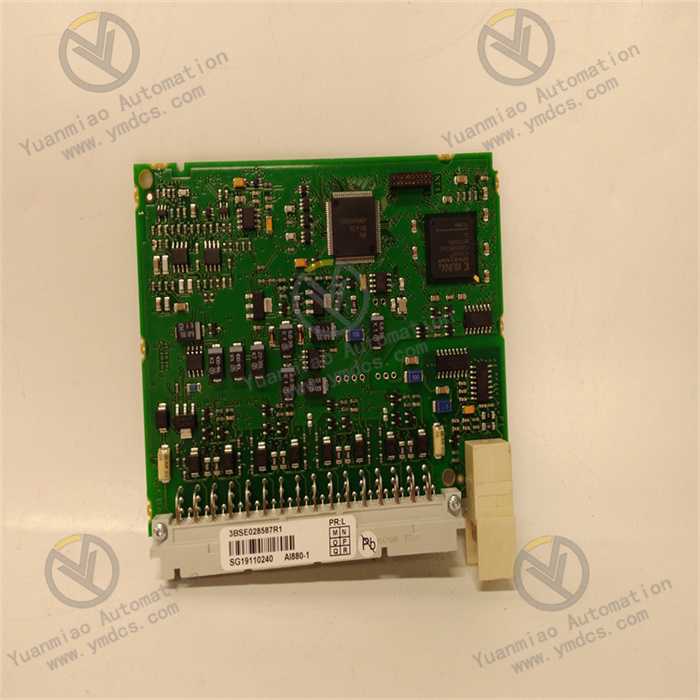

                                                                   AI880-1 3BSE028587R1

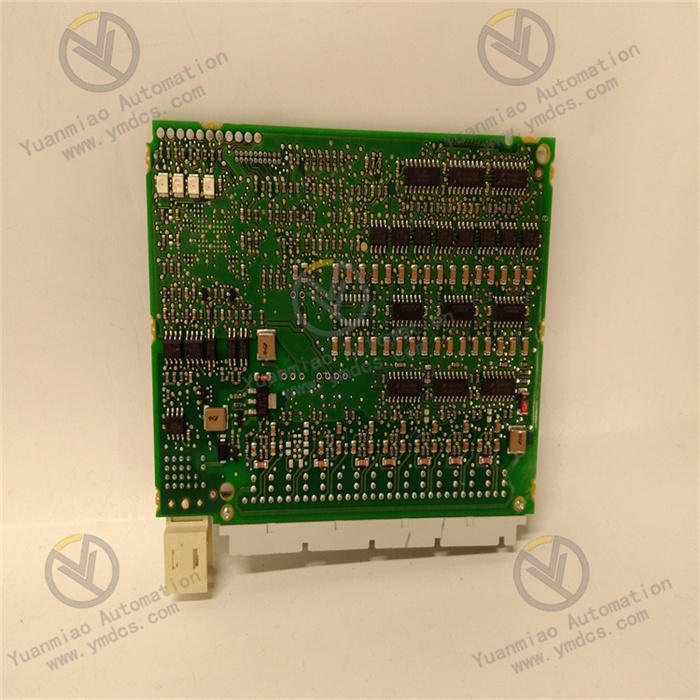

                                                                   AI880-1 3BSE028587R1
