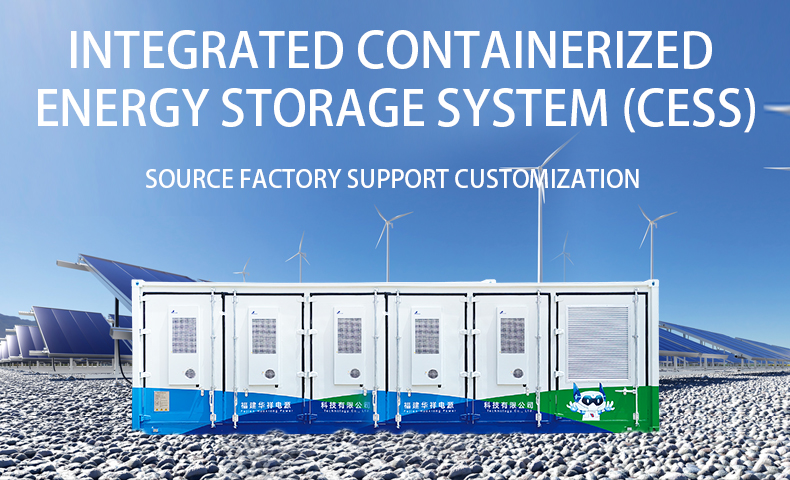

weida Integrated container energy storage system

Safe And Reliable Intelligent And Efficient Multidimensional Integration

Brand ：weida Product ：origin china Delivery time ：within 20 days

The integrated container energy storage system consists of battery clusters, bidirectional power conversion system (PCS), battery management system (BMS), energy management system (EMS), fire protection system, lighting system, dynamic loop control system, access control system, isolation transformer (optional) and so on.Multiple monitoring of system status and hierarchical linkage constitute a comprehensive protection system integrating electrical safety and functional safety. Container system, standardized and pre-fabricated design, reduce customization time and construction costs, and reduce safety hazards caused by local installation differences and management risks. It meets the application requirements of regional power grid in peak regulation, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

System Components Lithium Battery Cluster The main components of system consist of a battery module formed by safe, high-efficiency, long-life lithium iron phosphate cells connected in series, and a battery cluster formed by multiple modules connected in series. Battery Management System The core component of the svstem effectivelv protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system. Monitoring System System operation data monitoring, operation strategy management, historical data logging, system status logging, etc. PCS Power Conversion System Bidirectional AC/DC converter can realize the bidirectional conversion of DC to AC and AC to DC, which can either convert AC to DC for charging the battery, or convert DC to AC to supply power to the load or feed back to the grid. Air Conditioning System The battery compartment integrates 1200W industrial air conditioner to meet the smooth operation of the svstem in different environments and prolong the service life of the system. 1P54 IP54 design for the whole system.

System ParametersPhotovoltaic parameters Maximum access power of photovoltaic : 400KW Rated Current : 606A Rated Input Voltage : 3W+N+PE , 380/400W Rated Frequency : 50/60 AC Parameters (Grid-Connected) Rated Output Power (kw) : 500 Maximum Output Power (k) : 550 Rated grid voltage (V) : 3W+N+PE , 380 / 400V Grid Voltage Range : -15%~+10% Rated Grid Frequency (Hz) : 50 / 60 Grid Frequency Range (Hz) : ± 2 Output Current Harmonics : ≤ 3% (Rated Power) DC Component : < 0.5% In Power Factor : -0.9 ~ +0.9 Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120%) : Stop Running AC Parameters (Off-Grid) Rated Output Power (kw) : 500 Maximum Output Power (kw) : 550 Rated Output Voltage (V) : 3W+N+PE, 380 / 400V Output Voltage Harmonics : 3% (Linear Full Load) Rated Frequency (Hz) : 50 / 60 Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120% ) : Stop Running Battery Parameters Cell Type : Lithium Iron Phosphate Single Battery Cabinet Power : 215.04 Number Of Battery Cabinets : 5 Battery System Power (kwh) : 1075.2 Rated operating hours (h) : 2 (Changeable number of battery modules to meet time options) Battery Life : 25°C 0.5C / 0.5C 100%DOD SOH80% ≥ 6000times Efficiency Maximum Efficiency : 93% Safeguard AC Switch : yes PV Electrically Operated AC Switches : yes Grid Monitoring : yes Surge Protection : yes Basic Parameters Sizes (W*D*H) (mm) : 6058 * 2438 * 2591 Weights (kg) : 16000 Isolation Method : Built-In Isolation Transformer Grid And Off-Grid shifter : STS Protection Class : Outdoor IP54 Operating Temperature Range : -20~55°C (> 45°C Derate) Relative Humidity (Non-Condensing) : 0~95% Temperature Control Method : Refrigeration Maximum Working Altitude (m) : 4000 (> 2000 Derate) Display : Touchscreens Communication Interface : R$485, CAN. LAN Communication Protocols : Modbus-RTU. Modbus-TCP. CAN2.OB

System Features

Safe And Reliable • Preferred LFP Routing, Rigorous Safety Testing • Hierarchical Temperature Control Strategy From Core To Container, Industrial Grade Temperature Control System. • All-round Electrical Protection: High And Low Voltage Separation, Insulation Testing, Grounding Protection, Lightning Protection Design. • 7mm Thermal Isolation Between Cores, Insulated Holder Design • Module Built-In Aerosol Fire Protection Measures, Container Intelligent Warehouse Level Fire Protection, Hierarchical Linkage, Multi-Layer Protection • Battery packs connect with PCS in series, Eliminating Loop Current And Providing Greater Safety. Intelligent And Efficient • Efficient, Digital, Intelligent EMS System Design • 0.5C Charge / Discharge Rate • Fault Prediction, Identification And Rapid Localization Multidimensional Integration • Easy Transportation, Installation And Maintenance • Modularied design, easy for maintenance, Management And Capacity Expansion

FAQ

How is the early warning of the security system realized? BMS three levels, a first level of warning, the second level of alarm power reduction, three levels of power outages; temperature, smoke, combustible gas detection, the use of propane fire extinguishing, there are remote and on-site alarms, far infrared video monitoring and recording and other ways. How is ultra-high voltage converted to supply voltage? Inside the enterprise, the ultra-high voltage of the utility power is converted into supply voltage by means of a substation or transformer to supply normal equipment use and energy storage setups. Warranty issues, cycle count issues, how many cycles is a normal battery? Warranty 5 years, the first three years free of charge, the next two years to charge the cost of accessories, travel costs; the normal cycle life of the battery in 6000 The normal cycle life of the battery is more than 6000 times, 1 charging and 1 discharging per day can be used for more than 15 years, 2 charging and 2 discharging can be used for more than 8 years. How do you maximize the efficiency of 2 charging and 2 discharging? Valley-peak, flat-peak (full charge and discharge) This maximizes system utilization. What are the configuration facilities of the storage cabinets? It consists of battery pack, battery management system BMS, energy storage converter PCS, energy management system EMS, fire protection system, monitoring system and other related auxiliary systems. system, monitoring system and other related auxiliary systems, small size, large storage capacity, high temperature and low temperature resistance. What are the benefits of energy storage cabinets? (1) Shaving peaks and filling valleys, saving more than 60% of electricity costs by utilizing the peak and valley price difference. (2) Not troubled by power outages, pulling the power limit, not affecting normal production. (3) State subsidies, equipment credit for corporate income tax. (4) Emergency disaster preparedness standby. (5) Reduce carbon emissions, grid-connected operation, all benefits, data open and transparent, national grid monitoring and accounting. (6) Lithium iron phosphate battery will not trigger its own thermal runaway, no explosion, no fire. How big of a footprint do you really need for an energy storage locker, how big is 20 feet how big is 40 feet? (1) The size of 20-foot container is: 6.058*2.438*2591 meters; 40-foot container size is: 12.192*2.438*2591 meters (1.5-2 meters position is reserved around the box for maintenance). (2) 100kW-215kwh distributed energy storage cabinet indoor installation footprint in 3m weight of about 2.5T, three-sided side-by-side design covers a small area. The cabinet is designed according to the requirements of outdoor cabinet, and can be placed in the open space outside the power distribution room. Annual maintenance fee for the storage locker? Roughly, for every 1 MWh, the maintenance fee is about 10,000 yuan, the maintenance fee is less in the first 3 to 5 years, and the maintenance fee after five years is about 0.5-2% of the cost of the whole set of equipment; (investing in a 1 WKH energy storage cabinet, the investment cost is about 1,450,000 yuan, and the maintenance fee after five years is about 7,000 yuan to 28,000 yuan, depending on the degree of aging on the site)
