Bently Nevada 1900/65A-01-01-03-00-01 | Universal device monitor

Description

Manufacturer : Bently Nevada Product No.  : 1900/65A-01-01-03-00-01 Product type : 1900/65A General Purpose Equipment Monitor Made in U.S.A Power Option : 01 = 110 to 220 Vac @ 50 to 60 Hz (external supply) Display Option : 00 = No display Mounting Option : 03 = Fiberglass NEMA 4X/IP66 WP housing with window in door Approvals Option : 00 = None Communications Option : 01 = None Temperature Operating : -20 to +70 ºC (-4 to +158 ºF) Temperature Storage : -30 to +90 ºC (-22 to +194 ºF) Humidity Operating : 95% non-condensing, maximum Monitor Module Dimensions (L x W x H) : 19.69 cm x 14.94 cm x 7.44 cm Display Module Dimensions (L x W x H) : 19.69 cm x 14.94 cm x 3.28 cm Shipping Weight : 8 Kg

Features 24-bit ADC conversion Four vibration/position/speed inputs Four temperature inputs Configurable scale factors and full scale ranges Internal OK checking with status Independent Alert and Danger setpoints 200-entry event list Six relay output Relay operation is programmable Buffered outputs for each transducer channel Four configurable 4-20 mA recorder outputs

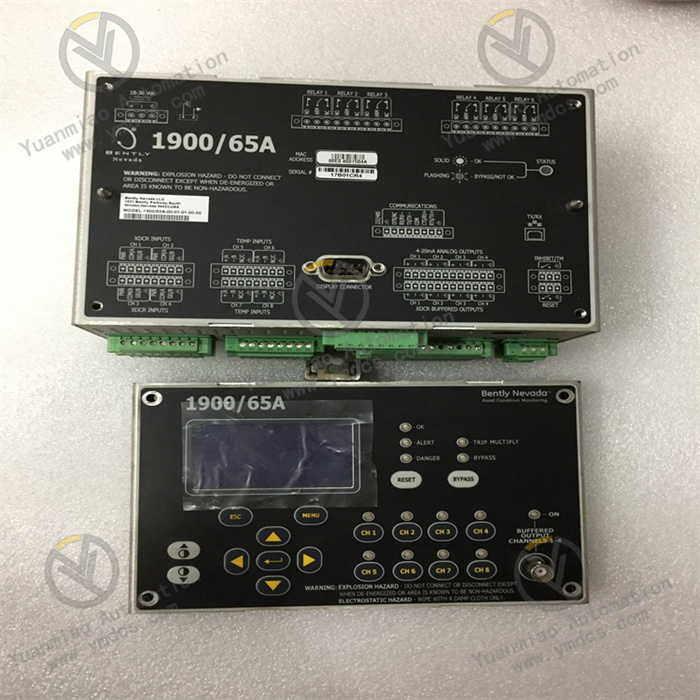

The Bently Nevada 1900/65A General Purpose Equipment Monitor is designed to continuously monitor and protect equipment that is used in a variety of applications and industries. The monitor's low cost makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection. The 1900/65A provides four transducer inputs and four temperature inputs. Software can configure each transducer input to support 2- and 3-wire accelerometers, velocity sensors or proximity sensors. Each temperature input supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs. The 1900/65A provides six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output. The user can use the 1900 Configuration software to configure the relay contacts to open or close according to the OK, Alert and Danger statuses of any channel or combination of channels, and to provide data from any variable from any channel on any recorder output. The dedicated buffer output can provide the signal for each transducer input.

A Modbus® Gateway option allows the monitor to provide static variables, statuses, event list, time and date information directly to any Modbus client, including Distributed Control Systems (DCSs), Supervisory Control and Data Acquisition (SCADA) systems, Programmable Logic Controllers (PLCs), or System 1® software. The monitor uses an internal counter and a Modbus client/master time reference to generate time and date information. Users can upgrade monitors without the Modbus Gateway by ordering the 1900/01 Communications Upgrade (see the Ordering Information section). The 1900/65A supports Modbus communications via Ethernet and a software-configurable RS232/485 serial port. The user defines monitor operation and the Modbus Gateway register map by using software running on a laptop or PC to create a configuration file and download the file to the monitor through the built-in Ethernet connection. The 1900/65A permanently stores configuration information in non-volatile memory, and can upload this information to the PC for changes. The 1900/65A supports an optional display/keypad to view channel information or make minor configuration changes. This allows the 1900/65A to operate as a stand-alone package. If desired, the user can mount the display up to 75 metres (250 feet) from the Monitor Module.
