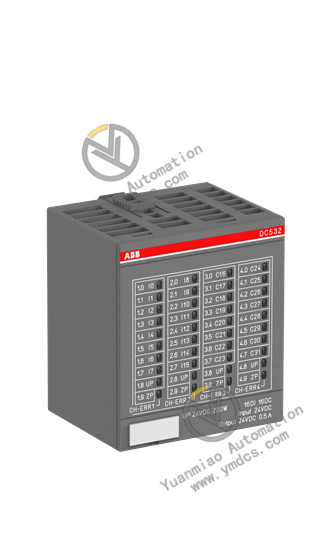

DC532 1SAP240100R0001 | ABB Digital input/output module

Description

General Information

Extended Product Type:DC532

Product ID:1SAP240100R0001

ABB Type Designation:DC532

EAN:4016779649162

Catalog Description:Digital input/output module. 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A (DC532)

Long Description:DC532: S500 Digital input/output module. 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A. 1-wire.

Dimensions

Product Net Weight:0.114 kg

Product Net Depth / Length:62 mm

Product Net Height:76 mm

Product Net Width:67.5 mm

Gross Weight:0.138 kg

Package Level 1 Depth / Length:84 mm

Package Level 1 Height:72 mm

Package Level 1 Width:71 mm

Package Level 1 Units:1 carton

Technical

Function:16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A

Number of Digital Inputs:16

Number of Digital Configurable I/Os:16

Input Voltage Type:DC

Input Current:5 mA

Maximum Input Voltage:0 ... 30 V

Delay Time (τ):Signal Exchange 0.1 … 32 ms

Output:Transistor

Output Voltage Type:DC

Output Current:0.5 A

Output Voltage Maximum:20.4 … 28.8 V

Degree of Protection:IP20

Supply Voltage:20.4 … 28.8 V DC
