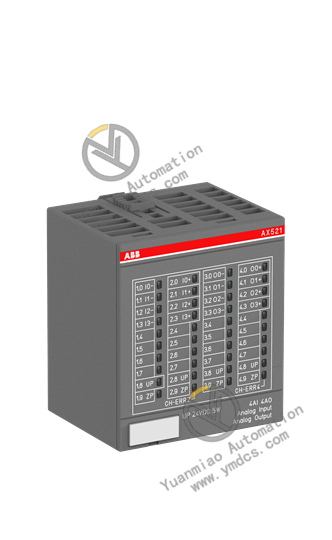

AX521 1SAP250100R0001 | ABB Analogue I/O Module

Description

General Information

Extended Product Type:AX521

Product ID:1SAP250100R0001

ABB Type Designation:AX521

EAN:4016779655958

Catalog Description:Analog input/output module. 4 AI: U, I, RTD. 4 AO: U, I (AX521)

Long Description:AX521: S500 Analog input/output module. 4 AI: U, I, RTD. 4 AO: U, I. 1-wire.

Dimensions

Product Net Weight:0.129 kg

Product Net Depth / Length:62 mm

Product Net Height:76 mm

Product Net Width:67.5 mm

Gross Weight:0.153 kg

Package Level 1 Depth / Length:84 mm

Package Level 1 Height:72 mm

Package Level 1 Width:71 mm

Package Level 1 Units:1 carton

Technical

Function:4 AI: U, I, RTD. 4 AO: U, I

Number of Analog Configurable I/Os:0

Analog Inputs:4

Input Signal:U, I, RTD, DI

Analog Outputs:4

Output Signal:U, I

Resolution:Analog Input 13 bit

Analog Output 13 bit

Degree of Protection:Housing IP20
