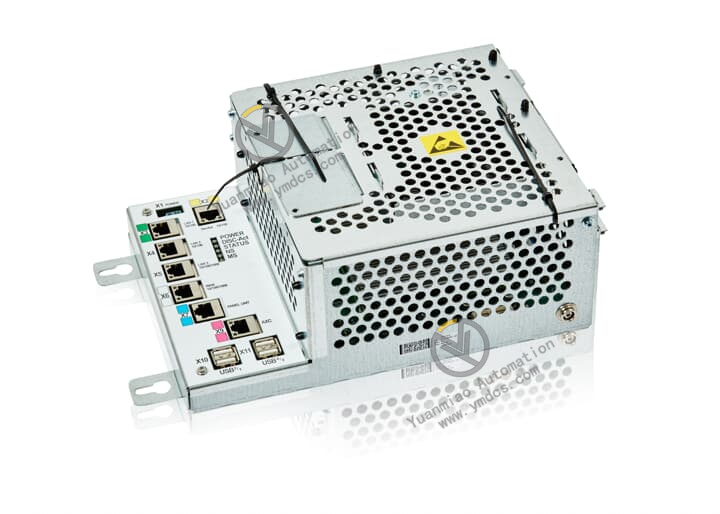

3HAC050363-001 DSQC1018 | ABB Computer Power Unit

3HAC050363-001 DSQC1018 | ABB Computer Power Unit

Brand: ABB

Product ID: 3HAC050363-001 DSQC1018

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

General Information

Product ID:3HAC050363-001

Catalog Description:DSQC1018 Computer


Dimensions

Product Net Weight:1.86 kg
Gross Weight:1.86 kg
Product Net Depth / Length:290 mm
Product Net Height:105 mm
Product Net Width:180 mm

公司介绍 (1).png

Power unit introduction 1) Rectification bridge Its function is to rectify (turn AC into DC). There are two types of internal package of the rectifier bridge. There are 6 rectifier diodes inside the package, which are used in the three-phase input end of the power unit. There are two rectifier diodes inside the package, which are used in the three-phase input of the power unit and in the bypass circuit. The rectifier bridge voltage levels used are: 1400V, 1800V; 2) Thyristor Thyristor is used in the charging circuit and by-pass circuit to play a "switch" role. The thyristor voltage levels used are: 1400V, 1800V; 3) Electrolytic capacitor Its function is to filter the DC after the rectifier bridge is rectified. The voltage levels used are: 400V. The capacity used is 3300uF, 6800uF, 10000uF. 4) IGBT Its function is to invert (to change DC into AC). Most IGBTs are "dual-tube" (two sets of IGBT modules are encapsulated inside). The IGBT voltage levels used are: 1200V, 1700V; The IGBT current levels used are: 75A, 100A, 150A, 200A, 300A, 400A, etc

3HAC050363-001 DSQC1018.jpg

Power unit board 1. Unit power supply board Board function: Take power from the DC bus of the power unit and output 24V DC power for the unit control board. Board interface: Input interface: power unit positive and negative DC bus Output interface: 24VDC output, connected to the unit control board 2. Unit control panel The function of the board: 1) receive the signal of the main control system and provide the control signal to the drive board; 2) Conduct real-time fault monitoring and report fault information to the main control system; 3) Supply power to the unit drive board. Board interface: 1) Optical fiber interface for communication with the main control system; 2)24V power input interface: connected with the power board; 3) Driver signal (Top1, Top2, Lock interface: connected with the driver board; 4)15V power output interface: connected with the driver board to supply power to the driver board; 5) Overvoltage, undervoltage detection interface: connected with the positive and negative bus of the unit; 6) Lack of phase detection interface: fuse auxiliary switch; 7) overheating detection interface: connected to the temperature detection switch; 8) Power on thyristor drive signal interface: Connect the thyristor gate; 9) By-pass thyristor driver signal interface: connected to the by-pass thyristor gate; 10) Bypass OK signal detection interface: connected to bypass OK board. 3. Unit drive board Function of the board: receive the control signal of the unit control board, provide driving signal for the four-way IGBT on the unit, and monitor the drive fault and report it to the unit control board. Board interface: 1)15V power input interface: connected to the unit control board; 2) Input signal (Top1, Top2, /Lock) : connected to the unit control board; 3) Output signal (ERRout) : connected to the unit control board; 4) Output signal (TOP1, BOT1, TOP2, BOT2 IGBT driver signal) : connected to the C, G, E pole of TOP1, BOT1, TOP2, BOT2 IGBT respectively. 4. Bypass OK board Board function: After the unit control board sends out the side communication number, the by-pass loop is detected to detect the signal input to the unit control board. Board interface: Input interface: bypass thyristor A, K pole; Output interface: connected to the unit control board

公司介绍 (5).png

The company focuses on DCS, PLC, robot, large servo four systems

The main products are various modules/cards, controllers, touch screens, servo drivers Company advantage: Supply imported original products, professional production of spare parts One year warranty, fast delivery time, complete supply !!! ① 24 hours email response (12 hours); ② For shipment outside Asia, please contact the seller.
