SK828086-AF | ABB Drive Contactors

Description

General Information

Extended Product Type:EHDB650-21-11 110V 50Hz

Product ID:SK828086-AF

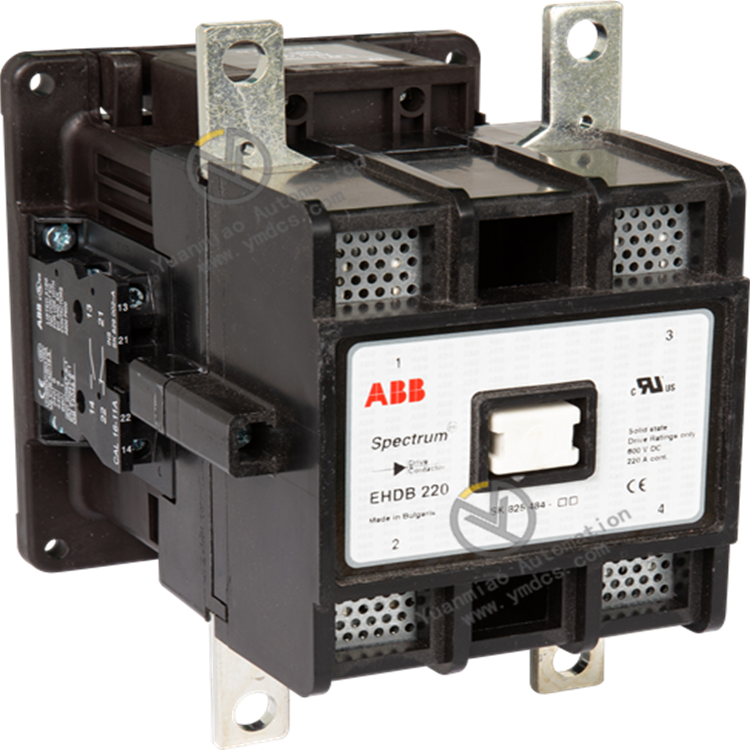

Catalog Description:EHDB650-21-11 110V 50Hz Contactor

Dimensions

Product Net Width:198 mm

Product Net Depth / Length:226 mm

Product Net Height:272 mm

Product Net Weight:11.4 kg

Container Information

Package Level 1 Width:235 mm

Package Level 1 Depth / Length:270 mm

Package Level 1 Height:224 mm

Package Level 1 Gross Weight:12.4 kg

Contactor, is a widely used switching appliance, using electromagnetic, pneumatic or hydraulic principle, through the control circuit to achieve the main circuit on and off. The contactor has the advantages of strong current breaking ability, rapid action, safe operation, frequent operation and remote control, but it cannot cut off the short circuit current, so the contactor must usually be used with the fuse. The main control object of the contactor is the motor, and it can also be used to control other electric loads, such as welding machines, electric furnaces, etc. There are many classification methods of contactors, which can be divided into electromagnetic contactors, pneumatic contactors and hydraulic contactors according to the different power sources of the driving contact system. It can also be divided into air contactors, oil immersed contactors and vacuum contactors according to the nature of the arc extinguishing medium. The working principle of the contactor is: when the contactor coil is energized, the coil current will generate a magnetic field, the magnetic field generated makes the static iron core produce electromagnetic suction to attract the moving iron core, and drives the AC contactor point action, the normally closed contact is disconnected, the normally open contact is closed, the two are linked. When the coil is powered off, the electromagnetic suction disappears, and the armature is released under the action of the release spring, so that the contact is restored, the normally open contact is disconnected, and the normally closed contact is closed. The working principle of a DC contactor is somewhat similar to that of a temperature switch.

Main classification According to the form of the main contact connection loop, it is divided into DC contactor and AC contactor. According to the operating mechanism is divided into: electromagnetic contactor, permanent magnet contactor. Permanent magnet AC contactor is a kind of micro power contactor which uses the same sex repulsion of magnetic poles and replaces the traditional electromagnet driving mechanism with permanent magnet driving mechanism. Domestic mature product models: CJ20J, NSFC1, NSFC2, NSFC3, NSFC4, NSFC5, NSFC12, NSFC19, CJ40J, NSFMR. Dc contactor Development status of DC contactor at home and abroad The overall development trend of contactors will be in the direction of long electrical life, high reliability, multi-function, environmentally friendly, multi-specification, intelligent and communicationable. Hybrid DC contactor Compared with AC current, there is no periodic current value zero crossing, therefore, when the traditional contactor breaks the circuit, the arc generated between the contacts is relatively strong, and the arc burning time is relatively long, in order to fully release the remaining energy in the circuit. The combustion of the arc produces high temperature and strong light, which has a serious ablative effect on the surface of the contact. The contact material is gradually lost after repeated breaking. When the electric wear of the contact is serious, the DC contactor is scrapped and the circuit cannot be broken. Dc contactor permanent magnet mechanism Dc contactor as one of the widely used electrical switches, its production and demand is huge. In the normal use process, the electromagnet coil has been powered on, generating electromagnetic suction, ensuring that the iron core and armature are drawn, driving the moving and static contacts are closed, and the circuit is switched on. In the above process, the coil itself has resistance, continuous consumption of electric energy, which is one of the main use costs of DC contactor, waste a lot of energy and property, therefore, how to reduce the working energy consumption of DC contactor, is the key and difficult point of the study of DC contactor. Dc contactor permanent magnet operating mechanism is a hybrid operating mechanism developed on the basis of traditional DC contactor electromagnetic operating mechanism, combining electromagnetic operating mechanism and permanent magnet. It not only uses the original electromagnetic suction force and spring reaction force as the power of core attraction and separation, but also adds the attraction of permanent magnet to the core. The use of energy storage capacitor charge and discharge to provide closing and opening power is usually called "electromagnetic operation, permanent magnet retention, electronic control". In the process of opening and closing motion, electromagnetic suction, permanent magnet suction and spring force work together. In the stable working process, permanent magnet suction is used to replace the previous electromagnetic suction to maintain the suction state of the armature and the core. First, the permanent magnet operating mechanism saves a lot of power consumption of the holding coil, environmental protection and energy saving. Second, the permanent magnet keeps the suction compared with the electromagnetic suction, low noise and no pollution. Third, the permanent magnet operating mechanism eliminates a series of complex and cumbersome locking protection devices in the electromagnetic mechanism, greatly improving the working reliability of the contactor operating mechanism, reducing the production process and cost, and reducing the volume of the contactor.
