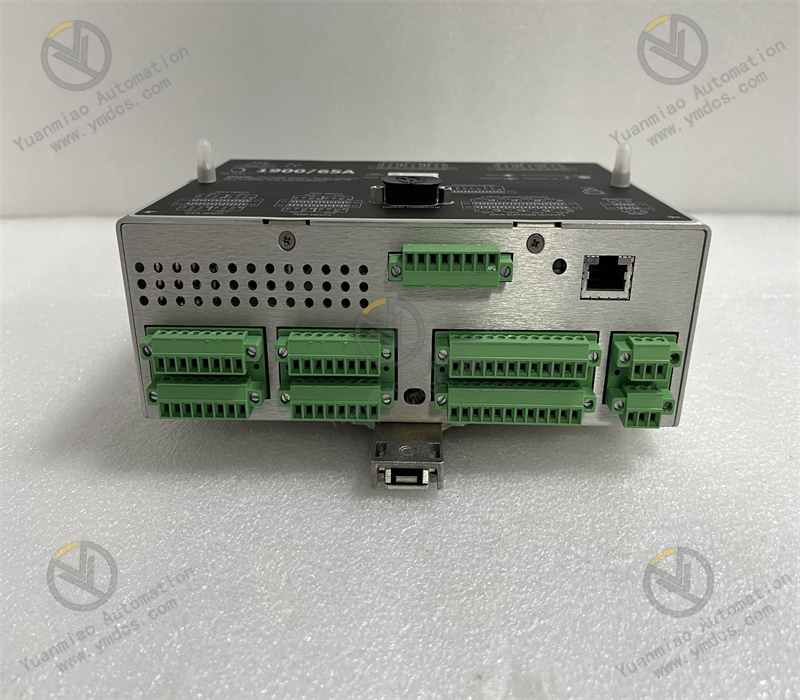

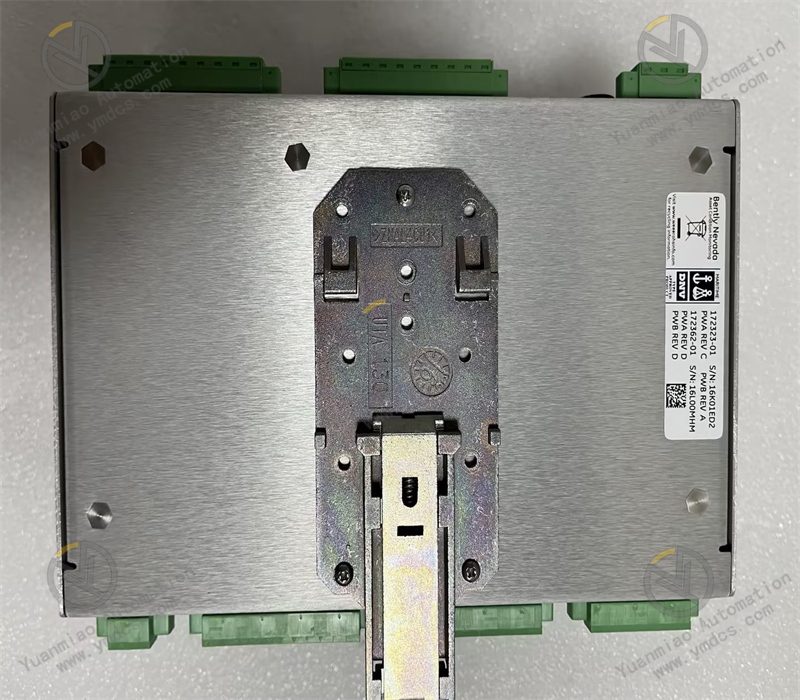

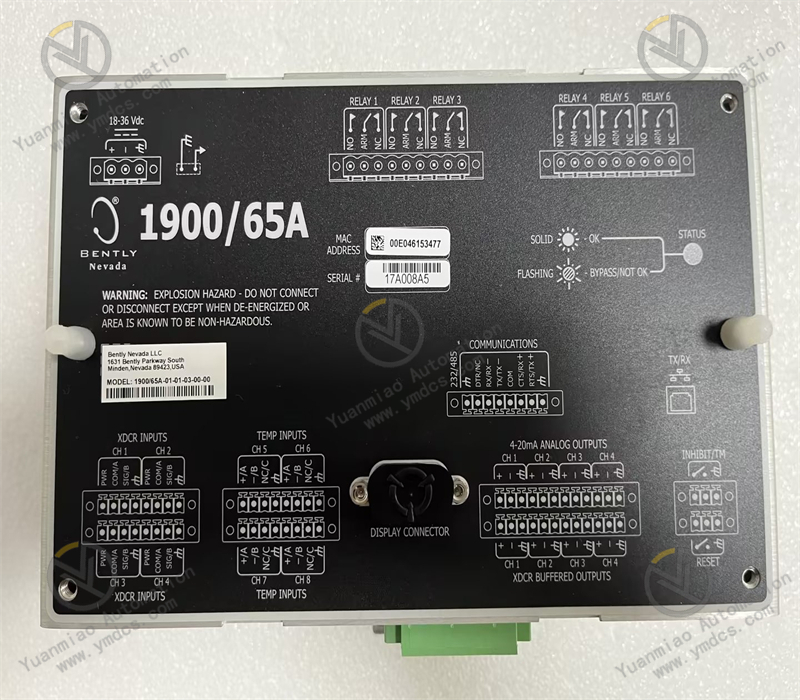

1900/65A-01-01-03-00-00 | General Purpose Equipment Monitor

Description

The 1900/65A General Purpose Equipment Monitor isdesigned to continuously monitor and protect equipment thatis used in a variety of applications and industries. Themonitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit fromcontinuous monitoring and protection. Inputs The 1900/65A provides four transducer inputs and fourtemperature inputs. Software can configure each transducerinput to support 2- and 3-wire accelerometers, velocitysensors or proximity sensors. Each temperature input supportsType E, J, K, and T thermocouples, and 2- or 3-wire RTDs.

• Manufacturer : Bently Nevada

• Product No. : 1900/65A-01-01-03-00-00

• Product type : 1900/65A General Purpose Equipment Monitor

• Made in U.S.A

• Power Option : 01 = 110 to 220 Vac @ 50 to 60 Hz (external supply)

• Display Option : 00 = No display

• Mounting Option : 03 = Fiberglass NEMA 4X/IP66 WP housing with window in door

• Approvals Option : 00 = None

• Communications Option : 01 = None

• Temperature Operating : -20 to +70 ºC (-4 to +158 ºF)

• Temperature Storage : -30 to +90 ºC (-22 to +194 ºF)

• Humidity Operating : 95% non-condensing, maximum

• Monitor Module Dimensions (L x W x H) : 19.69 cm x 14.94 cm x 7.44 cm

• Display Module Dimensions (L x W x H) : 19.69 cm x 14.94 cm x 3.28 cm

• Shipping Weight : 8 Kg

Outputs The 1900/65A provides six relay outputs, four 4-20 mArecorder outputs, and a dedicated buffered output. The usercan use the 1900 Configuration software to configure the relaycontacts to open or close according to the OK, Alert andDanger statuses of any channel or combination of channels,and to provide data from any variable from any channel on anyrecorder output. The dedicated buffer output can provide thesignal for each transducer input. A Modbus Gateway option allows the monitor to providestatic variables, statuses, event list, time and date informationdirectly to any Modbus client, including Distributed ControlSystems (DCSs), Supervisory Control and Data Acquisition(SCADA) systems, Programmable Logic Controllers (PLCs), orSystem 1 software. The monitor uses an internal counter and aModbus client/master time reference to generate time anddate information. Users can upgrade monitors without theModbus Gateway by ordering the 1900/01 CommunicationsUpgrade (see the Ordering Information section). The 1900/65A supports Modbus communications via Ethernetand a software-configurable RS232/485 serialport.

Configuration The user defines monitor operation and theModbus Gateway register map by usingsoftware running on a laptop or PC to create aconfiguration file and download the file to themonitor through the built-in Ethernetconnection. The 1900/65A permanently storesconfiguration information in non-volatilememory, and can upload this information to thePC for changes. Display Module The 1900/65A supports an optionaldisplay/keypad to view channel information ormake minor configuration changes. This allowsthe 1900/65A to operate as a stand-alonepackage. If desired, the user can mount thedisplay up to 75 metres (250 feet) from theMonitor Module.

Features 24-bit ADC conversion Four vibration/position/speed inputs Four temperature inputs Configurable scale factors and full scale ranges Internal OK checking with status Independent Alert and Danger setpoints 200-entry event list Six relay output Relay operation is programmable Buffered outputs for each transducer channel Four configurable 4-20 mA recorder outputs
