Description
- Manufacturer : Bently Nevada
- Product No. : 3500/05-01-01-00-00-01
- Product type : 3500/05 System Rack
- Made in U.S.A
- Rack Size : 01 = 19-inch Rack (14 module slots)
- Mounting Options : 01 = Panel Mount Option, Full-Size Rack
- Agency Approval Option : 00 = None
- Reserved : 00 = None
- European Compliance Option : 01 = CE
- Weight : 3 Kg
- Shipping weight : 4 Kg

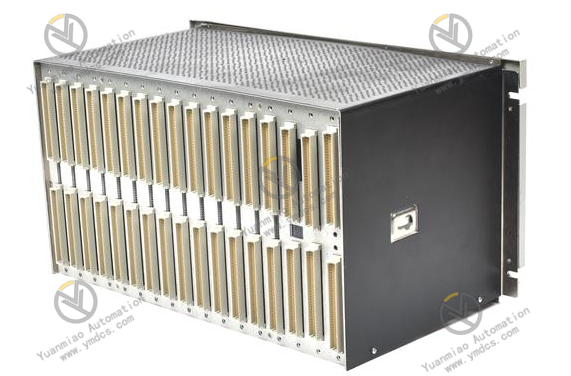

The Bently Nevada 3500/05 System Rack design holds all 3500 monitor modules and rack power supplies. It allows the various 3500 modules to communicate with one another and the power supplies to distribute power to each module as required. 3500 Racks are manufactured in two sizes: 1. Full-size Rack: 19-inch EIA rack with 14 available module slots 2. Mini-Rack: 12-inch rack with 7 available module slots 3500 racks are manufactured in three formats: 1. Panel mount: This rack format mounts to rectangular cut-outs in panels, and secures to the panel using clamps supplied with the rack. Wiring connections and I/O modules are accessible from the rear of the rack. 2. Rack mount: This rack format mounts the 3500 rack on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack. 3. Bulkhead mount: This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.
3500/05 Function Description:
A rack with an internal safety gate requires a 3500/04-01 internal safety gate ground module to provide an IS ground connection to the 3500/05 rack. This grounding module requires a dedicated rack slot. 3500/93 systemdisplay SystemDisplayA01SystemFaceMount options is not compatible with 3500/05 small frame. The partition mounting option is not available for the 3500/05 small frame. The 3500/06 weatherproof housing and 3500/05 partition mounting options are not compatible. When using a 3500 small rack in an EIA rack, 144863-0119 inch EIA adapter panel is required. 3500 Small rack requires version 2.70 or higher of 3500/01 software. The 3500 system is available for mechanical protection applications and is designed to meet the requirements of the API670 standard for such systems.
The modular rack design of the system includes the following components:
. 3500/05 Instrument frame (required)
. One or two 3500/15 power supplies (required)
. 3500/22M Transient Data interface module or 3500/20 Frame interface module (required)
. One or two 3500/25 key phase modules (optional)
. 3500 Framework Configuration Software (required)
. One or more 3500/XX monitor modules (required). One or more 3500/32 relay modules or 3500/34 triple redundant relay modules (optional)
One or more 3500/92 communication gateway modules (optional)
. 3500/93, 3500/94 or 3500/95 display device or 3500 operator display software running on a compatible PC (optional). Internal or external intrinsic safety barriers, or electrical isolation devices for installation in hazardous areas. (Optional)
The company focuses on DCS, PLC, robot, large servo four systems
The main products are various modules/cards, controllers, touch screens, servo drivers
Company advantage: Supply imported original products, professional production of spare parts
One year warranty, fast delivery time, complete supply !！！
① 24 hours email response (12 hours);
② For shipment outside Asia, please contact the seller.
Bently Nevada Related Products
| 3300/05-23-00-00 | 3500/50-01-00-02 |
| 3300/05-23-00-01 | 3500/93-03-01-00 |
| 3500/92-02-01-00 | 3500/92-01-01-00 |
| 3500/92-04-01-00 | 3500/25-01-02-00 |
| 3500/25-01-01-00 | 3500/25-01-03-00 |
| 3500/05-01-02-00-00 | 3500/93-07-01-02-00 |
| 3500/93-01-00-00-00 | 3500/05-01-02-00-01 |
| 3500/93-02-02-02-00 | 3500/50-01-01-00-00 |
