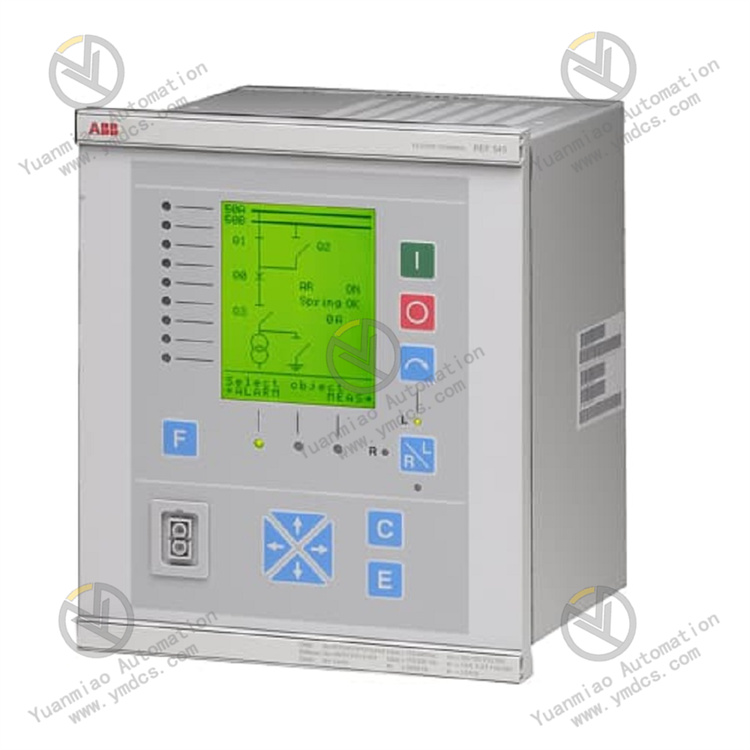

REF545 | ABB Feeder Terminal Relay Spot goods

Description

The REF 545 feeder terminal can be used with different kinds of switchgear, including single busbar, double busbar and duplex systems. The protection functions also support different types of networks, such as, isolated neutral networks, resonant-earthed networks and partially earthed networks. The application area also covers medium-sized three phase asynchronous motors as well as protection and control of shunt capacitor banks used for reactive power compensation. In addition to protection, measurement, control, condition monitoring and general functions, the REF 545 feeder terminals are provided with a large amount of PLC functions, which allow for several automation and sequence logic functions, needed for substation automation, to be integrated into one unit. The data communication properties include the following communication standards: SPA bus, LON bus, IEC 60870-5-103, IEC 61850 via SPA-ZC 400, Profibus DPV1 via SPA-ZC 302, DNP 3.0 and Modbus communication with higher level equipment. Further, the LON communication together with the PLC functions minimizes the need for hardwiring between the feeder terminals. Scope Feeder protection relay Product benefits Protection functions for many different types of power networks Programmable logic functions (PLC) Wide support for different communication protocols Optical communication for fast disturbance-free communication Product features Voltage and current measurement via conventional measuring transformers or current sensors and voltage dividers Fault locator for short circuits in all kinds of network Support for IEC 61850 protocol through the SPA-ZC 400 adapter 34 binary inputs and 26 output relays

Features • Feeder terminal for protection, control,measurement and supervision of mediumvoltage networks • New application areas for power qualitymeasurement, protection, capacitor bankprotection and control and motor protection • Voltage and current measurement via conventional measuring transformers or current and voltage sensors • Fixed man-machine interface including alarge graphic display, or an external displaymodule for flexible switchgear installation • Extended functionality including protection, control, measurement, communication, power quality and conditionmonitoring • Protection functions including e.g. nondirectional and directional overcurrent andearth-fault protection, residual voltage,overvoltage and undervoltage protection,thermal overload protection, CBFP andauto-reclosing • Control functions including local andremote control of switching objects, statusindication of the switching objects andinterlockings on bay and station level • Measurement of phase currents, phase-tophase and phase-to-neutral voltages,residual current and voltage, frequency,power factor, active and reactive powerand energy, etc. • Condition monitoring including circuitbreaker condition monitoring, trip circuitsupervision and internal self-supervision ofthe feeder terminal • Additional functions including synchrocheck, frequency protection, capacitorbank protection and control, measurementof current and voltage harmonics • RTD/analogue module for temperaturemeasurement, current/voltage measurement and mA-outputs • Communication over two communicationinterfaces: one for local communicationwith a PC and the other for remote communication via a substation communicationsystem • Part of the ABB Substation Automationsystem

Protection functions Protection is one of the most important functions of the REF 545 feeder terminal.    Theprotection function blocks are independent ofeach other and have their own setting groups,data recording, etc.Either Rogowski coils or conventional current transformers can be used for protectionfunctions based on current measurement.   Correspondingly, voltage dividers or voltagetransformers are used for protection functionsbased on voltage measurement. Measurement functions The measurement functions include threephase currents, neutral current, three-phasevoltages, residual voltage, frequency, activeand reactive power and power factor.   In addition, other measurement functions are available. As a standard feature the REF 545 terminalincludes pulse counter inputs.   The number ofpulse inputs varies from 7 (REF 541) to 10(REF 545) according to the REF variant. Overtemperature indication The REF 545 feeder terminal includes aninternal temperature supervision function.The power supply module issues an internalalarm signal when overtemperature has beendetected inside the terminal enclosure. Thealarm signal will be activated once the temperature inside the terminal enclosureincreases to +78°C (+75°...+83°C). Overtemperature indication is available in thefeeder terminal configuration and can be configured to activate an alarms.
