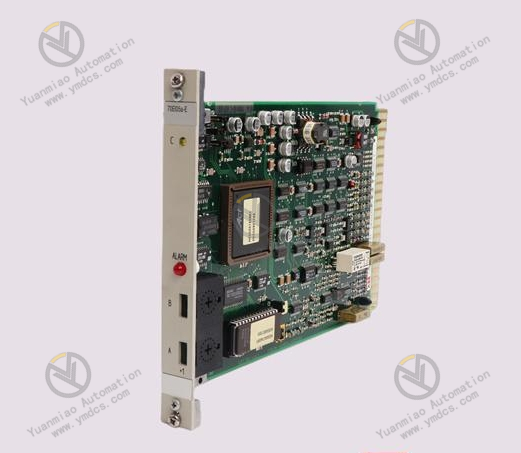

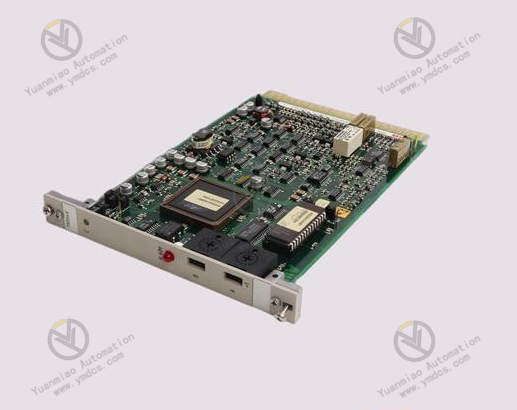

HESG447427R0001 70EI05A-E | ABB Input Module for Speed Sensor

Description

The speed input module 70EI06aprocesses the pulse signals from aspeed sensor, calculates the speedof the turbine, then based on userdefined criteria outputs the speedmeasurement and other indicationsto the P13 local bus.  The modulealso provides two relay contactsfor protection applications, e.g.electrical 2oo3 voting. The 70EI06a converts the pulse signals from a speedtransmitter into two frequency proportional signalson the local bus and features various algorithms forsupervision of standstill, overspeed, and over acceleration in addition to general faults of the frequencymeasurement or probes themselves. Using the front panel configuration port and the P13Configurator software, the module can be monitoredand configured for different operating modes andfault conditioning. The module replaces the measuring transducer UA379(including the UT386 monitoring module) and the70EI05a-E input module for rotational speed.  It isa fully functional replacement for both cards, addingdirect support for eddy-current probes and featuring aSIL3 rated overspeed protection according IEC 61508. Some changes in field wiring and configuration mightbe required, depending on the actual application.

Feature • Overspeed detection with configurable overspeedlimits and hysteresis • Configurable stand-still supervision • Acceleration supervision • Loss of frequency detection • Board/Module fault and Processor/Sensor faultdetection • Two 3NO/1NC potential-free change-over relaycontacts, safety rated • Relay contact testing feature • Overspeed testing feature for testing of othertrip channels • Two analog speed output signals to the local busfor full range and zoomed range • One binary output status word to the local bus forfaults and supervision alarms • Several physical inputs and outputs for testing,buffered speed signal, and error signals • Non-consecutive bus addressing for all local bussignals • Connection of multiple 70EI06a cards allowsfrequency signal multiplication and various votingarchitectures (1oo2, 2oo3, etc.) for trip outputs • SOE support for speed limit alarms, accelerationrate and status bits (only with intra-plant bus fiberplant network)

ABB power module features and applications ABB power module uses advanced integrated circuit technology to integrate power devices and logic control circuits in a highly integrated, fully sealed integrated block with power function. The power module has the advantages of convenient use and reliable performance, which represents the development direction of power supply technology. Because the switching power supply has the advantages of high efficiency and small size, it is suitable for integration. Because of its low efficiency, generally about 50%, it is difficult to achieve high-power (more than 100W) integration. The power module introduced by Jimi technology refers to the switching power module, focusing on the DC/DC converter. Today's switching power modules can reach hundreds of watts or even kilowatts. Power module products mainly include DC/DC converter module, power factor correction module, AC input module, etc. Their main characteristics are: ◆ ABB power module working frequency is high, generally 300KHz~1MHz. ◆ ABB power module size is small, ultra-thin, thickness is generally less than 20mm, light weight, generally less than 200g. ◆ ABB power module power density is large, generally 5~10W/ cubic centimeter. ◆ ABB power module is easy to use, less external components, can be expanded in parallel, and can also realize logic control and remote control. ◆ ABB power module is suitable for a wide range of power grid voltage changes. When the general AC voltage fluctuates between 150V and 280V, the output has a voltage regulator function. ◆ ABB power module temperature adaptation range is wide, can be from -55 degrees Celsius ~+100 degrees Celsius, the general high temperature substrate temperature is +85 degrees Celsius, low temperature 0 degrees, -20 degrees, -40 degrees, -55 degrees and other levels. ◆ ABB power module fully sealed package, with three anti-function, waterproof, dustproof, anti-impact. ◆ ABB power modules generally use zero voltage switch or zero current switch technology, good electromagnetic compatibility. ◆ ABB power module structure is highly standardized and easy to install.
