PXI-2547 - NI Multiplexer Switch Module

Description

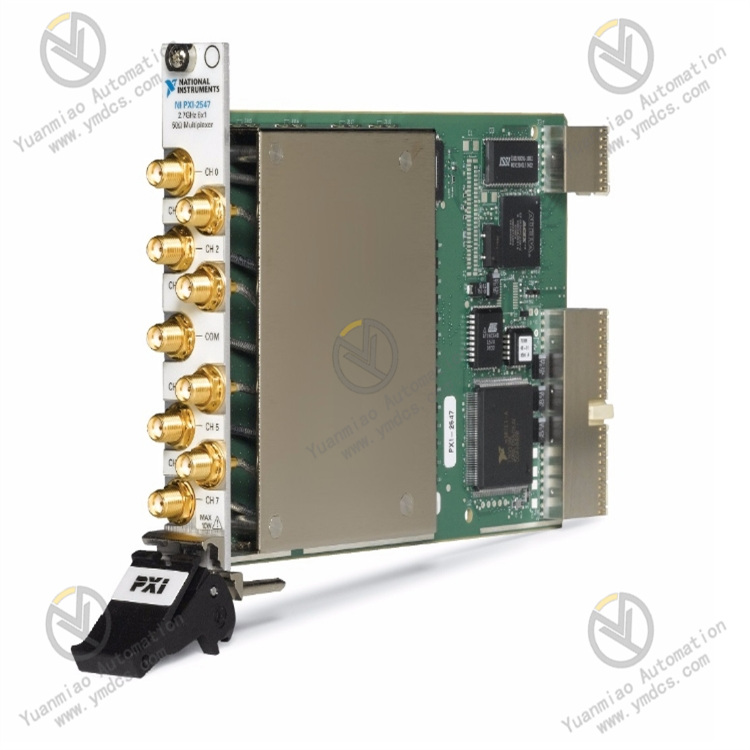

The PXI-2547 (Part number: 778572-47) is a 50 Ω, 2.7 GHz, RF PXI Multiplexer Switch Module (in 8x1 topology) featured with a higher channel count. This model is an ideal solution for test systems where a significant number of RF signals must be switched. This module is known for its voltage standing wave ratio, excellent insertion loss, and isolation parameters, which results in the minimization of signal degradation. The user can utilize the integrated tracking feature for the relay count to diminish unexpected system downtime and to predict relay lifetime. The PXI-2547 provides 0.5 A Maximum switching current (per channel) and 30 V Maximum switching voltage. This switch module comes with an electromechanical, latching relay and gold plated 9 SMA jacks as I/O connectors. This model is a smart device with 8.5 in. × 0.8 in. × 5.1 in. dimensions and weighs around 9 oz.. This model can operate with <0.25 Ω, typical DC path resistance initially and approximately ≥1.0 Ω, at the end-of-life. The characteristic impedance remains 50 Ω, nominal (approximately), whereas it is designed to work with <1.05 dB (<0.7 dB, typical) and <2.0 dB (<1.6 dB, typical) insertion loss, while operating at ≤1 GHz and ≤2.7 GHz respectively. By design, the NI PXI-2547 comes with SP8T Topology. This module is suitable for routing signals from DC to 2.7 GHz. It can also switch up to 30 Vrms or 500 mA at 10 W. The PXI-2547 can be used for switching multiple devices under test, while connected to one channel on the RF analyzer.

Analog input module is a device used to collect and process analog signals, which is usually composed of analog input circuit, analog-to-digital converter (ADC), filter and interface circuit. The analog input circuit is responsible for converting the external analog signal into a voltage or current signal, and then converting the analog signal into a digital signal through an analog-to-digital converter, and finally filtering and enhancing the signal through a filter, and finally output to a computer or other control equipment for processing and analysis. Working principle 1. Analog input circuit: The analog input circuit is a key part of the analog input module, which is mainly responsible for converting the external analog signal into a voltage or current signal. Common analog input circuits include resistance divider circuit, current voltage circuit and so on. The resistance divider circuit realizes the signal conversion through the series parallel combination of resistors, and the current voltage circuit realizes the signal conversion through the product of current and resistance. 2. Analog-to-digital converter (ADC) : The analog-to-digital converter is the core component in the analog input module, which is responsible for converting analog signals to digital signals. The analog-to-digital converter discretizes the input voltage or current into a series of digital values according to its magnitude, and converts the continuous analog signal into a discrete digital signal through a process of sampling and quantization. Common analog-to-digital converters include successive approximation analog-to-digital converters and integral analog-to-digital converters. 3. Filter: The filter is an important part of the analog input module, which is mainly used to filter and enhance the signal. The filter can improve the quality and stability of the signal by removing high-frequency noise and interference signals, thus improving the accuracy and reliability of subsequent processing. 4. Interface circuit: The interface circuit is the connection bridge between the analog input module and the computer or other control equipment, which is responsible for converting the digital signal into a form that the computer or other control equipment can recognize and process. Interface circuit usually adopts serial communication interface or parallel communication interface, and realizes data exchange and communication with computer or other control equipment through data line and control line.

Application field Analog input modules have a wide range of applications in industrial automation, such as: 1. Industrial production process monitoring: The analog input module can be used to monitor and collect analog signals such as temperature, pressure and flow in the production process, and feed back to the computer or other control equipment in real time for monitoring and regulation of the production process. 2. Environmental monitoring system: The analog input module can be used for the collection and processing of parameters such as temperature, humidity and gas concentration in the environmental monitoring system, so as to grasp the changes and anomalies of the environment in time. 3. Power system monitoring: The analog input module can be used for the acquisition and monitoring of voltage, current, power and other parameters in the power system in order to understand the operating status and load of the power system in real time. 4. Instrument testing: Analog input module can be used for analog signal acquisition and processing in instrument testing in order to evaluate and verify the performance and accuracy of instruments.
