Description

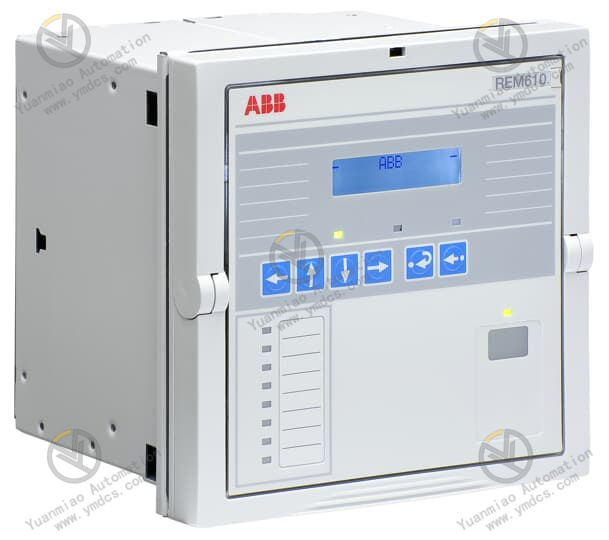

REM610 is a motor protection relay for the protection, measurement and supervision of medium-sized and large asynchronous LV motors and small and medium-sized asynchronous HV motors in the manufacturing and process industry. REM610 is a member of ABB’s Relion® product family and part of its 610 product series. The series includes protection relays for feeders, motors and for general system voltage supervision. The plug-in design facilitates the commissioning of the switchgear and enables fast and safe insertion and withdrawal of relay plug-in units. These protection relays can be used with both circuit-breaker and contactor-controlled motor drives in a variety of applications. As these relays are enhanced with an optional add-on card for RTD sensors or thermistor elements, they can be used for direct temperature measurement of critical motor items, such as bearings and windings. They are also used for the protection of cable feeders and distribution transformers, benefiting from thermal overload protection on top of the phase over-current protection, earth-fault protection and phase unbalance protection. Scope • Motor protection relay Product benefits • The compact design makes it suitable for both new and retrofit installations • Quick and easy routine maintenance thanks to the removable plug-in design • Complete type test certified by KEMA • Certificated for marine and off-shore use by Det Norske Veritas (DNV) Product features • Dedicated protection for utility distribution and industrial applications • The REM610 handles fault conditions during motor startup, normal operation, idling and cooling down at standstill. The key features of the motor IED include thermal overload protection, cumulative motor startup supervision, running stall protection, earth-fault protection, and loss-of-phase protection. Furthermore, the thermal overload protection function can be enhanced with an optional RTD module for direct temperature measurement. • REM610 supports a wide range of standard communication protocols, including IEC 61850, IEC 60870-5-103, Modbus®, Profibus, SPA and LON.
REM610 is a motor protection relay for the protection andsupervision of medium sized and large asynchronous LVmotors and small and medium-sized asynchronous HV motorsin manufacturing and process industry. REM610 is a member ofABB’s Relion® protection and control product family and part ofits 610 product series. The 610 series includes protectionrelays for feeders, motors and for general system voltagesupervision. The plug-in design of the 610 series protectionrelays facilitates the commissioning of the switchgear andenables fast and safe insertion and withdrawal of relay plug-inunits. The protection relay is primarily targeted at protecting largeasynchronous low-voltage motors and small and medium-sizedhigh-voltage asynchronous motors. REM610 handles electricalfault conditions during motor start up, normal operation, idling,and cooling down at standstill, e.g. in pump, fan, mill or crusherapplications. The protection relay can be used with both circuitbreaker controlled and contactor-controlled drives. REM610can also be used for the protection of cables' feeders anddistribution transformers that require thermal overloadprotection besides overcurrent, earth-fault and phaseunbalance protection. Further, the 610 series protection relaysare suitable for employment in marine and offshoreenvironments. The numerical motor protection relays of the 610 series supporta wide range of standard communication protocols, amongthem the IEC 61850, IEC 60870-5-103, Modbus, Profibus, LONand SPA communication protocols.
The protection relay offers many integrated protection functionsfor the protection of motors. The thermal overload protection,cumulative motor start up supervision, running stall protection,earth-fault protection and loss-of-phase are the key functionsof this protection relay. The coverage of the thermal overloadprotection can be further enhanced by means of an optionalRTD module for direct temperature measurement. The protection relay physically measures the phase currentsand the residual current. From the phase currents, theprotection relay calculates the thermal overload and thenegative-phase-sequence current of the protected motor orgenerator. REM610 also measures a number of characteristiccurrents of the protected object during startup and dutyoperation. Further, by means of an optional measurement card,the protection relay can directly measure up to eighttemperatures via six RTD and two thermistor type sensors. The values measured can be accessed locally via the userinterface on the protection relay's front panel or remotely via theserial communication interface on the rear panel of theprotection relay. The protection relay is provided with a built-in battery backedup digital disturbance recorder for four analog signal channelsand eight digital signal channels. The analog channels can beset to record the curve form of the currents measured. Thedigital channels can be set to record external or internal relaysignals, for example the start or trip signals of protection relay'sstages, external blocking or control signals. Any digital relaysignal such as a protection start or trip signal, or an externalrelay control signal can be set to trigger the recording. Therecordings are stored in a nonvolatile memory from which thedata can be uploaded for subsequent fault analysis.
