Description

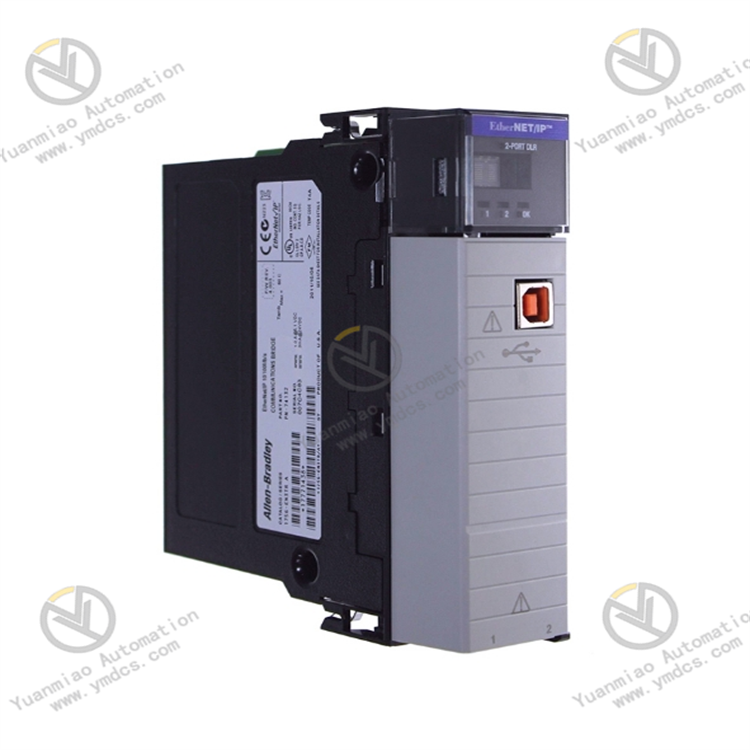

Description: The 1756-EN2TRXT module is an industrial Ethernet communication module. This communication module has been designed and manufactured by Allen-Bradley/Rockwell Automation in the ControlLogix series. The 1756-EN2TRXT Ethernet communication module has an embedded switch and an extended operating temperature range. It can be used with dual copper media and a communication speed of up to 100 Mbps. The 1756-EN2TRXT Ethernet communication module is ideal for applications controlling I/O modules and drives, communicating with other Ethernet devices, and acting as an adapter device for I/O devices on remote Ethernet/IP links.
Technical Specifications for 1756-EN2TRXT
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-EN2TR |
| Series | ControlLogix |
| Module Type | High Performance Bridge w/ Embedded Switch |
| Current Draw at 5.1 Volts DC | 1 Ampere |
| Current Draw at 24 Volts DC | N/A |
| EtherNet/IP Rate of Communication | 10/100 Mbps |
| Logix Communication Connections | 256 |
| TCP/IP Communication Connections | 128 |
| Slot Width | 1 |
| Ethernet Port | 2 Ethernet RJ45 Cat 5 |
| USB Port | USB 1.1 Full-Speed (12 Mbps) |
| Enclosure Type | None (Open-Style) |
| Location | Chassis (Any Slot) |
The Allen-Bradley 1756-EN2TRXT is a high-performance bridge with dual copper embedded switch technology. A ControlLogix-XT model, it has increased protection against corrosives, salts, humidity, moisture/condensation, and fungal growth. It supports information exchange, real-time I/O messaging, and general messaging. With Common Industrial Protocol (CIP) Safety, it allows the simultaneous transmission of diagnostics information and control data over a common network. And it is part of the ControlLogix EtherNet/IP Network Communication Modules. The ControlLogix-XT 1756-EN2TRXT Bridge features a robust construction and is ANSI/ISA2, IEC, and EMC- compliant, making it ideal for caustic or extreme environments. It can be used for control applications where temperatures range from -25-70 °C (-13-158 °F). With product longevity guaranteed, installing this into the system will help reduce integration and installation costs. Chassis-based, the 1756-EN2TRXT Communication Module can be mounted in any slot. It has a total of 128 TCP connections, 256 CIP connections, and 128 + 128 CIP Unconnected Messages (backplane +Ethernet). Its current draw at 5.1V DC is rated at 1 A. It comes with a communication rate of 10-100 Mbps and can support up to 8 CIP Motion Axes. It has a packet rate capacity of 2000 HMI/MSG packets per second. When used with 1756-L7x ControlLogix controllers, it has a capacity of 25,000 I/O packets per second.
