Description

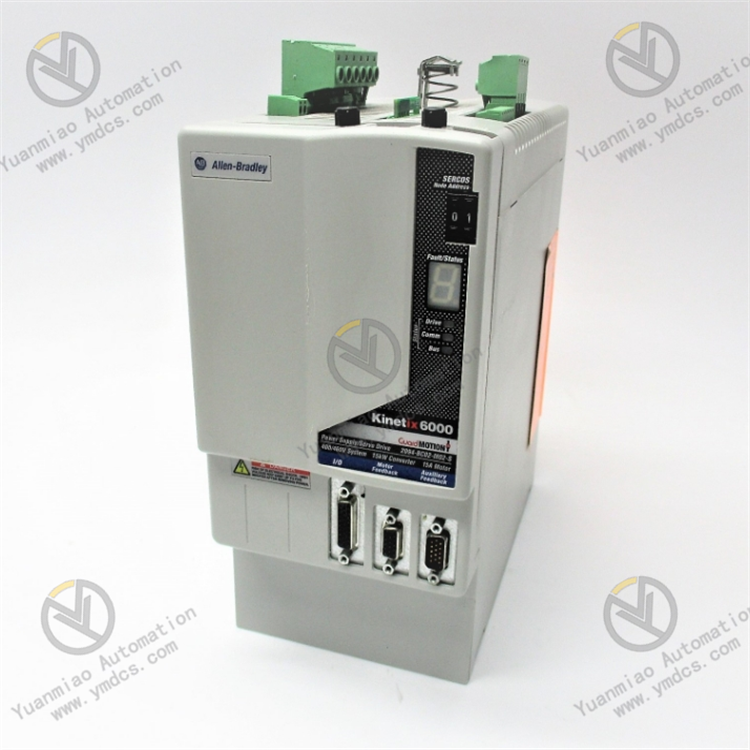

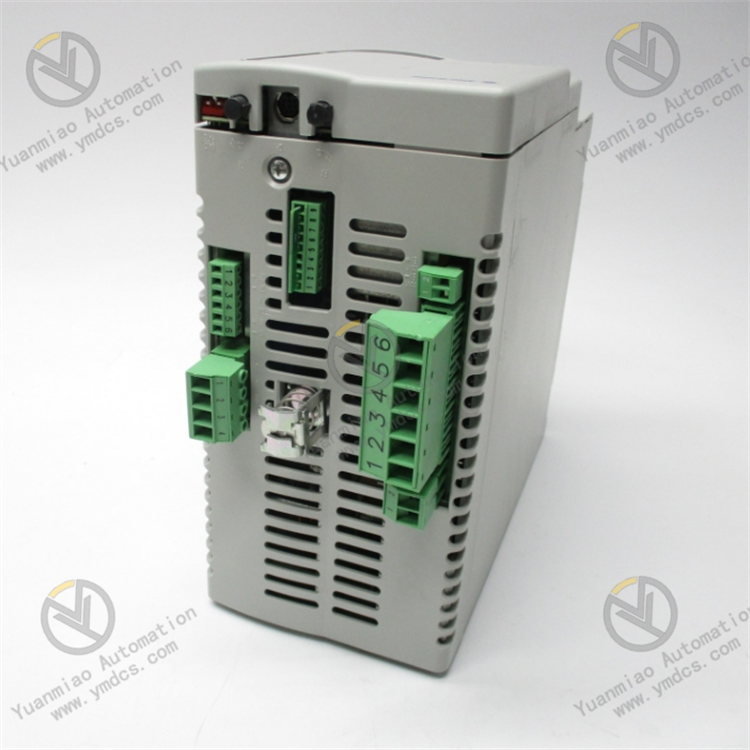

Description: The Allen-Bradley 2094-BC02-M02-S is a Kinetix 6000 Drive component. This module is a 400VAC class Integrated Axis Module with continuous output current to bus 22.6 A and peak output current to bus of 45.2 A for series A and 56.4 for Series B, C and D drives. It has an efficiency of 97% and short-circuit current rating of 200,000 A (rms) symmetrical. This module has Safe-Torque Off functionality.
Technical Specifications for 2094-BC02-M02-S
| Manufacturer | Rockwell Automation |
| Efficiency | 97% |
| Internal Shunt Resistor | 115 Ohms |
| Internal Shunt (Continuous Power) | 50 Watts |
| Internal Shunt (Peak Power) | 5.6 Kilowatts |
| DC Input Current (Common Bus Follower) | 22.6 Amps |
| DC Input Voltage (Common Bus Follower) | 458 to 747 Volts |
| AC Input Current (Nominal RMS) | 24.0 Amps |
| AC Input Current (Maximum Inrush 0-peak) | 22.0 Amps |
| AC Input Frequency | 47 to 63 Hertz |
| AC Input Voltage | 324 to 528 Volts RMS 3 Phase (360 to 480 Volts nom) |
| Module Type | IAM 400 Volt Class |
| Part Number/Catalog No. | 2094-BC02-M02-S |
| Weight | 11.2 pounds (5.08 kilograms) |
The 2094-BC02-M02-S is an Allen-Bradley Kinetix 6000 Integrated Axis Module (IAM). This module has an input voltage rating of 324-528VAC, rms, 3-phase, with nominal value of 360-480V nom with AC input frequency of 47-63 Hz. The main AC input current of the 2094-BC02-M02-S is 24.0 Amperes, nominal and maximum inrush current of 22.0 Amperes. The module’s DC input voltage is 458-747VDC and DC input Current of 22.6 Amperes, both in common-bus-follower. The control power AC input voltage of the 2094-BC02-M02-S is 95-264VAC, rms, 1-phase with nominal value of 110-240V, rms. The 2094-BC02-M02-S has a Bus overvoltage protection and Bus undervoltage protection. The Bus overvoltage rating is 825VDC while Bus undervoltage is 275VDC. The nominal Bus output Voltage is 650VDC. The 2094-BC02-M02-S has an internal shunt continuous power of 50 Watts and Peak power of 5.6 kWatts. It has an internal shunt resistor of 115 Ohms with shunt On value of 805VDC and Shunt Off value of 755VDC. This module is capable of providing continuous output power to bus of 15 kWatts with peak power output 30 kWatts for series A drive and 37.5 kWatts for series B, C and D drives. It has an internal efficiency of 97%, converter inductance of 500 ?H and converter capacitance of 110 ?F. It has a short-circuit current rating of 200,000 A (rms) symmetrical. The 2094-BC02-M02-S is compatible for use with 2094-BM02-S Axis module. The Bussmann fuse for the 2094-BC02-M02-S drive can be either the FNQ-R-10 (10 Amps) fuse or the FNQ-R-7.5 (7.5 Amps) fuse. It can also use the 1492-SPM2D060 or the 1492-SPM1D150 Allen-Bradley circuit breaker, but these devices are not UL-listed. The 2094-BC02-M02-S has different levels of power dissipation (measured in Watts) depending on the percentage rating of its rated power output. The dissipation level is 36 W at 20% of the rated power output, 44 W at 40%, 54 W at 60%, 64 W at 80%, and it is 75 W at 100% of the rated power output. It has several Kinetix 6000 Peak current ratings. The 2094-BC02-M02-S’s standard peak inverter current rating is 150% and the peak enhanced current rating is 250%. The peak converter current rating for a Series A 2094-BC02-M02-S drive is 200% and it is 250% for Series B and C 2094-BC02-M02-S drives.
