Description

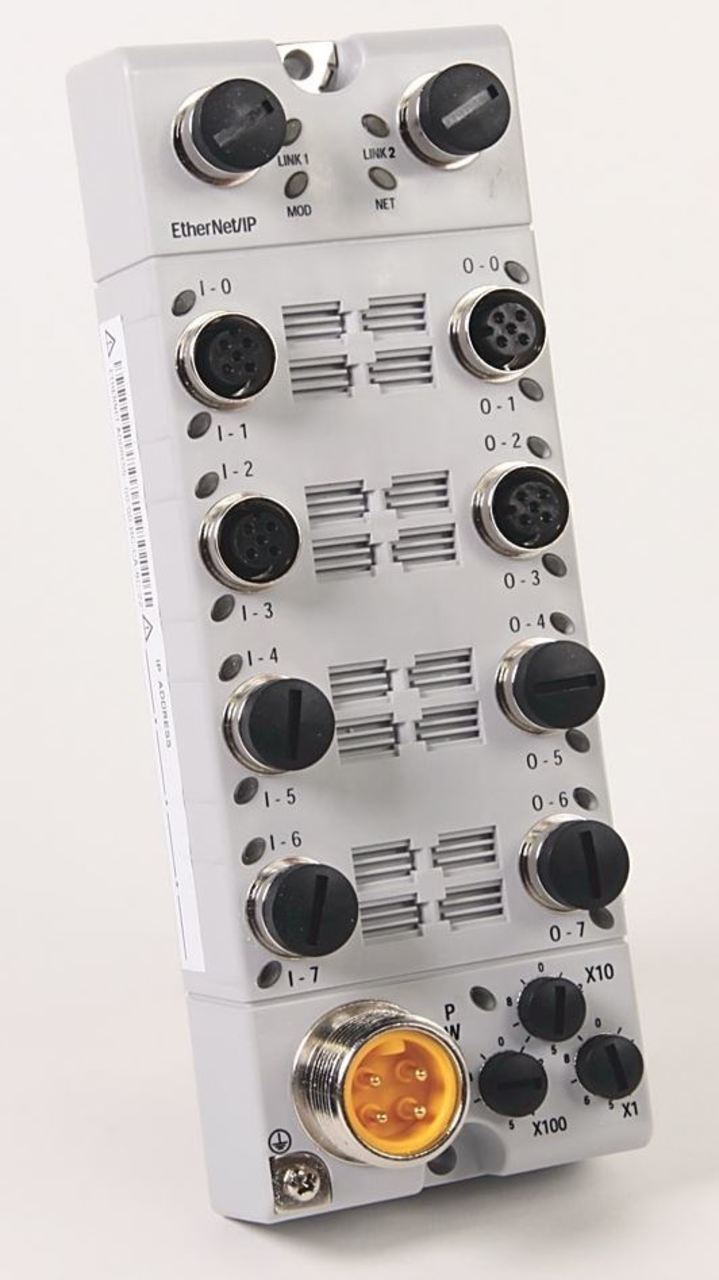

Description:The Allen-Bradley 1732E-IB16M12DR Diagnostic 16 Channel 24 Volt Digital Input Dual-Port EtherNet Module has 16 inputs and 16 outputs. This module has a continuous 50 Volt isolation voltage with a basic insulation type.
Technical Specifications for 1732E-IB16M12DR
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1732 ArmorBlock |
| Part Number | 1732E-IB16M12DR |
| Number of Inputs | 16 |
| Input Type | Sink, 24 Volts |
| Number of Outputs | 16 |
| Output Type | Source, 24 Volts |
| Maximum Off-State Input Voltage | 5 Volts |
| Maximum On-State Input Voltage | 30 Volts |
| Nominal On-State Input Voltage | 24 Volts |
| Minimum On-State Input Voltage | 11 Volts |
| Maximum Auxiliary Power Voltage | 30 Volts |
| Minimum Auxiliary Power Voltage | 12 Volts |
| Enclosure Type Rating | Meets IP65/66/67/69K and Type 4X |
| Operating Temperature Range | -4 to 140 Degrees Fahrenheit |
| Storage Temperature Range | -40 to 185 Degrees Fahrenheit |
| Dimensions | 179 x 65 x 43.25 millimeters (7.05 x 2.56 x 1.70 inches) |
| Weight (Approx.) | 0.34 kilograms (0.75 pounds) |
The Allen-Bradley 1732E-IB16M12DR Diagnostic 16 Channel 24 Volt Digital Input Dual-Port EtherNet Module has a 24 Volts Sink-type input with a 24 Volts Source-type output. With respect to the general specifications, the 1732E-IB16M12DR module has a maximum off-state input voltage of 5 Volts with a maximum on-state input voltage of 30 Volts. It has a minimum on-state input voltage of 11 Volts and a maximum off-state input current of 1.5 milliAmps at 5 Volts. The maximum sensor source voltage on this module is 30 Volts, with its minimum being 10 Volts. It has a 50 Volts continuous isolation voltage with a basic insulation type. For the output specifications, the module has a maximum on-state output voltage drop of 0.5 Volts and a minimum off-peak blocking voltage of 30 Volts. The module's maximum on-state output voltage is 30 Volts. More general specifications of the 1732E-IB16M12DR Module include a maximum auxiliary power voltage of 30 Volts and a minimum auxiliary power voltage of 12 Volts. The maximum sensor source current per input is 50 milliAmps, and the maximum sensor source current per connector is 100 milliAmps. Status indicators allow the end-users to determine status the module status with a variety of red, yellow, and green LED indicator lights. The environmental specifications include an operating temperature range between -4 and 140 degrees Fahrenheit, as well as a storage temperature range between -40 and 185 degrees Fahrenheit. The relative humidity level in which the device is operated should be between 5 and 95%, non-condensing. This module has an enclosure type rating that meets the IP 65, 66, 67, 69K, and Type 4X ratings. The approximate dimensions of the module are 179 x 65 x 43.25 millimeters, or 7.05 x 2.56 x 1.70 inches. It weighs approximately 0.34 kilograms or 0.75 pounds.
