Description

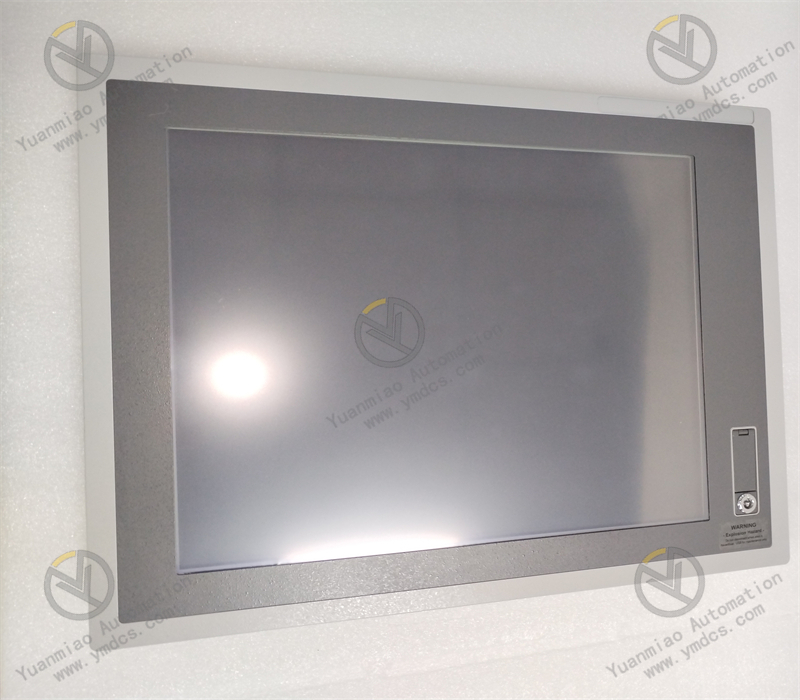

Description: The Allen-Bradley/Rockwell Automation 6186M-17PT monitor is a display monitor from the Allen-Bradley VersaView series. It provides a 17-inch active-matrix screen with full color graphics to different industrial devices such as non-display computers that do not have monitors but require them for certain applications. The 6186M-17PT display monitor can be controlled through a touchscreen with an antiglare shield. It has an aluminum bezel and it supports both AC and DC input voltage. The 6186M-17PT display monitor can operate at 100 to 240 Volts AC or at 9 to 36 Volts DC.
Technical Specifications for 6186M-17PT
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 6186M-17PT |
| Product Line | 1700M Industrial Monitor |
| Display Size | 17 in. |
| Display Color | Color Active Matrix TFT |
| Input Type | Resistive Touchscreen |
| Input Power | 100-240V AC or 9-36V DC |
| Bezel Type | Aluminum |
| Backlight | 50,000 hours to half-life |
| Mounting Options | Panel, Bench, Tabletop, Rack, or DIN Rail |
| Shipping Weight | 24 lbs. |
| Shipping Dimensions | 15 x 18 x 4 in. |

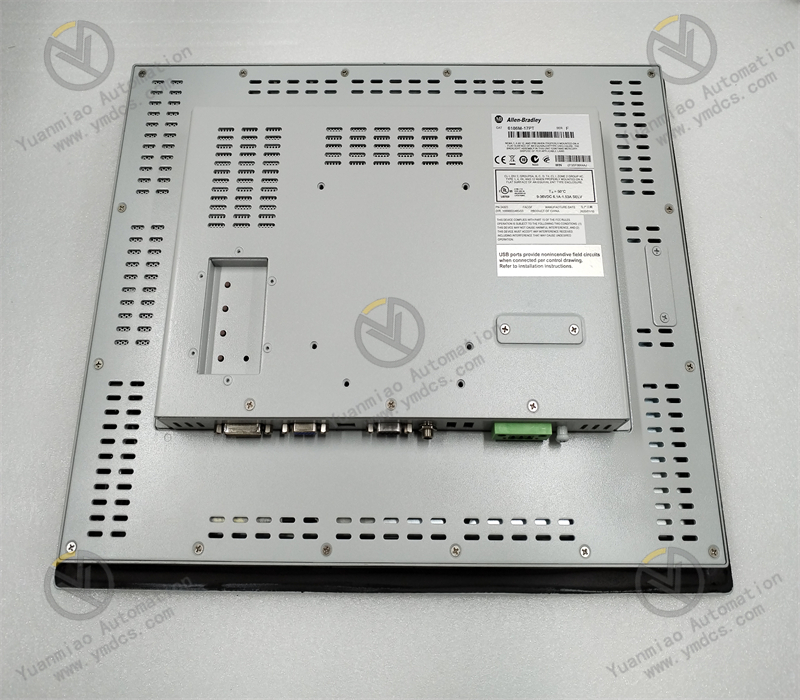

The 6186M-17PT Performance Industrial Monitor by Allen-Bradley is an industrial-based display device which provides a visual interface through a 17-inch wide color active matrix LCD touch screen for controlling and maintaining of industrial applications. It offers a unique display dimension of 338mm x 270mm (13.3in x 10.7in) and supports several selectable resolutions from 720 x 400 pixels to 1280 x 1024 pixels with a 16.7M colors depth for each resolution. The touch resistive and antiglare display surface has a luminance of 350 cd/m2 (Nits) and comes with a Cold Cathode Fluorescent Tube backlight with a standby time of 50,000 hours. It provides a 1000:1 contrast ratio with 5:4 aspect ratio and has a response time lower than 35ms. The 6186M-17PT has a video transmission frequency capacity of 140 MHz and a digital and analog DVI and HD-15 VGA video signal connector at the backside which provide a digital and analog video signal. It has two USB ports on the back and one on the front with a current capacity of 500mA used for direct communication with external devices like keyboards and printers. The 6186M-17PT is a panel-mounted Industrial monitor which uses a DIN rail-mounted AC power adapter, with a voltage rating of 100-240V AC at 47-63Hz and a power consumption of 55W. It weighs 8.6kg (19lb) and has total dimensions of 356mm x 452mm x 61mm (14.02in x 17.80in x 2.4in).
