2711P-RP8D - Logic Module

Description

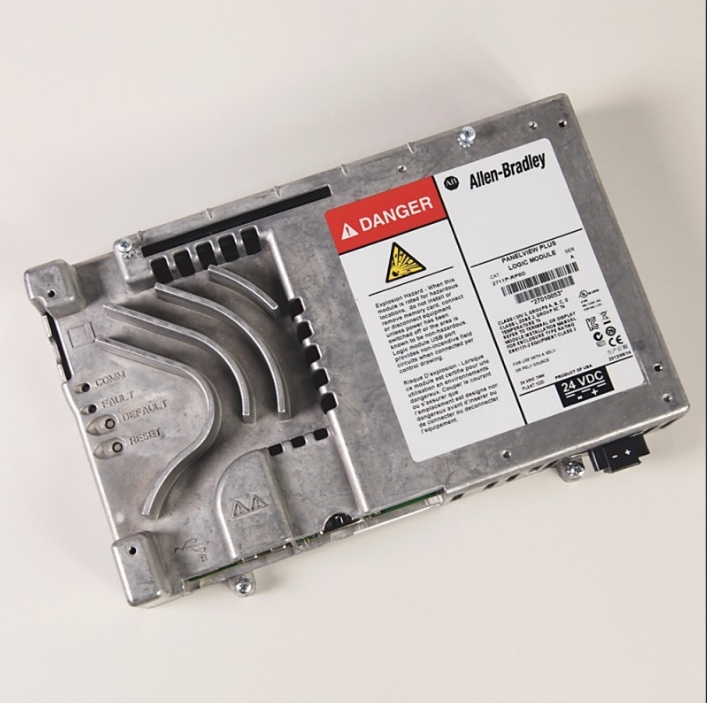

Description: The Allen-Bradley 2711P-RP8D is a Logic module that is compatible with PanelView Plus 6 operator terminals. This logic module is compatible for PanelView Plus 6 700-1500 operator terminals. It has a Random Access Memory (RAM) amounting to 512 MB and Flash memory amounting to 512 MB. This logic module has One (1) serial, Two (2) USB and One (1) Ethernet interface ports and requires 24VDC external supply voltage.

Technical Specifications for 2711P-RP8D

The 2711P-RP8D logic module by Allen-Bradley is a module in the PanelView Plus 6 series. It supports the PanelView terminals without extended features. It is a 24 Volt DC input module with 512 MB of storage memory for data and application storage. It also has a volatile memory of 512 MB for processing applications. The module can be programmed by a computer using the RS-232 serial communication port. Other devices can also be linked to the 2711P-RP8D logic module via the same port. The module also uses the Ethernet protocol for enhanced network capability, and like other PanelView Plus 6 terminals, the 2711P-RP8D uses a standard Ethernet cable for applications, and data transfers between a computer and the PanelView Plus 6 (700 to 1500) terminal. This unit is compatible with PanelView Plus 700-1500 Display terminals including the 2711P-RDT7C and 2711P-RDT10C. It can also be used with communication modules such as the 2711P-RN6 for additional communication ports. All fault codes for the 2711P-RP8D can be found in the manual. The logic module is often sold with display modules as an assembled terminal. The PanelView Plus 6 component with catalog number 2711P-RP8D is a logic module that is intended for use with PanelView Plus 6 700-1500 operator terminals. This logic module is used as a replacement part for the existing logic module of a functioning operator terminal. It comes with an internal Random Access Memory (RAM) amounting to 512MB and Flash Memory of 512 MB as well. The 2711P-RP8D is powered by an external 24VDC supply voltage with a power dissipation of 70 Watts. It is installed at the back of the display module and connects the latter via the embedded PCI slot. The 2711P-RP8D’s available communication interfaces are One (1) Ethernet Communication port that is used to integrate data of controllers within the Ethernet network, One (1) 9-Pin Sub-D Serial port for  Point-to-Point connection and peripheral connection via the embedded Two (2) USB interfaces.  may also be established through the Serial port using a 9-Pin D Sub connector. The USB ports are specifically designed for insertion of external peripherals such as keyboard, mouse, printers and external storage mediums.
