Description
Description: The 1756-IF4FXOF2F is a ControlLogix Discrete High-speed analog I/O module. It has Four (4) high-speed, submillisecond, differential inputs, compatible for input signal ranges of ± 10V 0…10V 0…5V 0…20 mA. It also has Two high-speed voltage or current outputs with output signal ranges of ± 10V 0…20 mA.
Technical Specifications for 1756-IF4FXOF2F
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-IF4FXOF2F |
| Series | ControlLogix |
| Inputs | 4 high speed sub-millisecond differential |
| Module Type | High Speed Analog Input / Ouptut Module |
| Outputs | 2 high speed current-voltage |
| Input signals ranges | ± 10V; 0…10V; 0…5V; 0…20 mA |
| Input Resolution | 14 bits across ±10.5V DC ; 12 bits across 21 mA |
| No. of Outputs | 2 high speed current/ voltage |
| Output Resolution | 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit |
| Output Signal Ranges | ± 10V; 0…20 mA |
| Backplane Current (5Volts) | 375 milliamps |
| UPC | 10612598269218 |
| Backplane Current (24Volts) | 100 milliamps |
| Power Dissipation (Max) | 4.3 Watts (Voltage), 4.7 Watts (Current) |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |

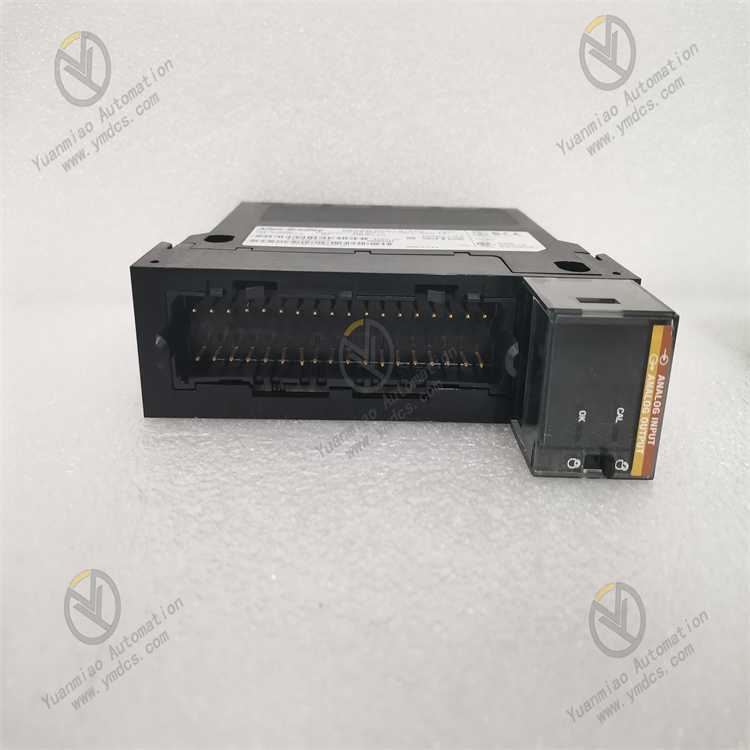

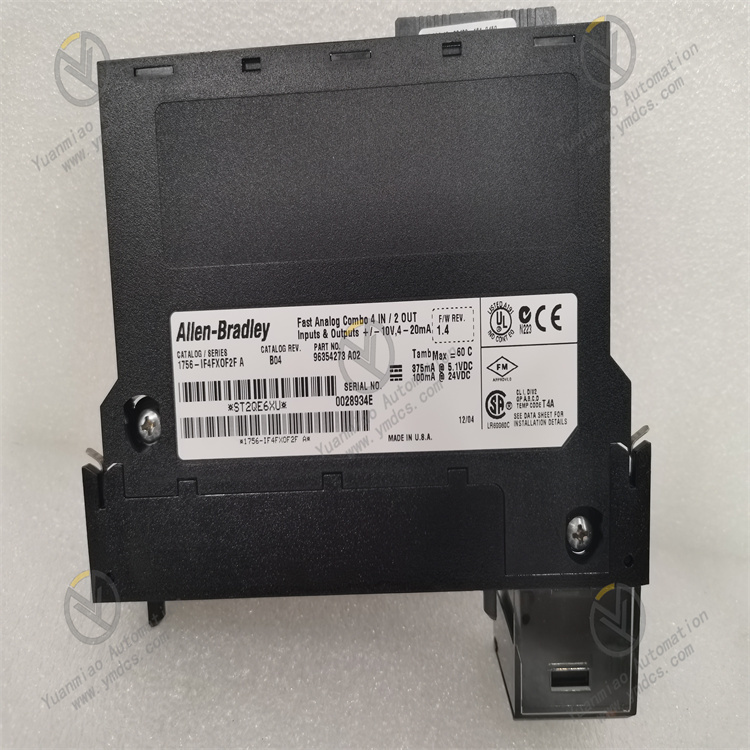

The Allen-Bradley 1756-IF4FXOF2F is an analog combination I/O module. This module belongs to the ControlLogix system, which is compatible with the 1756 ControlLogix chassis and requires either the 1756-TBS6H or 1756-TBCH removable terminal block housing (RTB). The module has 4 high-speed, sub-millisecond, differential inputs and 2 high-speed voltage or current outputs. The module has a display that shows the module health and operation state such as calibration mode. The input range of the 1756-IF4FXOF2F is +/-10 Volts, 0 to 10 Volts, 0 to 5 Volts, and 0 to 20 milliamps, with an over-range indication when the module exceeds these ranges. The overvoltage protection voltage is 30 Volts DC and for current is 8 Volts AC/DC. Its open circuit detection is a positive full-scale reading within 1 second. The module’s output range is +/-10 Volts, 0 to 20 milliamps and has a short circuit protection that is electronically current limited to 21 milliamps or less. It also has an overvoltage protection of 24 Volts DC and an open circuit detection, but it is limited to the current output only (note that the output must be set to greater than 0.1 milliamps). The 1756-IF4FXOF2F has voltage and current ratings of 375 milliamps (at 5.1 Volt DC) and 100 milliamps (at 24 Volts DC) for its backplane and -10 to 10 Volts and 4 to 20 milliamps for both the analog inputs and outputs. The module’s power consumption is 4.3 Watts and power is dissipated at 4.3 Watts for the voltage and 4.7 Watts for the current. Thermal dissipation is at 14.66 BTU/hour and 16.02 BTU/hour for the voltage and current respectively. Its current draw at 5.1 Volts is 375 milliamps and 100 milliamps at 24 Volts. It also has an update period of 300us minute Scan Time and features sub-millisecond channel scans and synchronized sampling across multiple modules.
The Allen-Bradley 1756-IF4FXOF2F is a ControlLogix High-Speed analog combination module. This module features Four (4) 4 high-speed, submillisecond, differential inputs that is compatible of receiving ± 10V, 0 to 10V, 0 to 5V and 0 to 20 mA signal ranges. It has an integrated overrange and underrange indication to each analog input channel. It is also equipped with Two (2) high-speed voltage or current with output range of ± 10V and 0 to 20 mA. The input channel of this module converts the received analog signal via Successive approximation method with a conversion resolution of 14 bits across ±10.5V and 12 bits across 21 mA. It has a repeatability of ±1 Least Significant Bit (LSB) and requires calibration interval of 12 Months. The analog inputs are applicable for measuring analog process variables such as Flow, Level, Pressure, Temperature, Viscosity, pH, Turbidity, Speed and many other process variables. The output channel of this module features an output resolution of 13 bits across 21 mA = 2.8 µA/bit and 14 bits across 21.8V = 1.3 mV/bit. The output channel conversion is through R-Ladder DAC conversion method with no missing codes. The output analog signal of this module may be used to command modulating actions intended for Control Valves, Variable Frequency Drives, Dampers, Louvers, Signal Converters and Transducers. It may also be used to re-transmit signals for use by indicators, recorders and other devices. The analog output of this module may be linked to a manual control command, an Arithmetic operation or control output of a Proportional-Integral-Derivative (PID) controller.
