Description

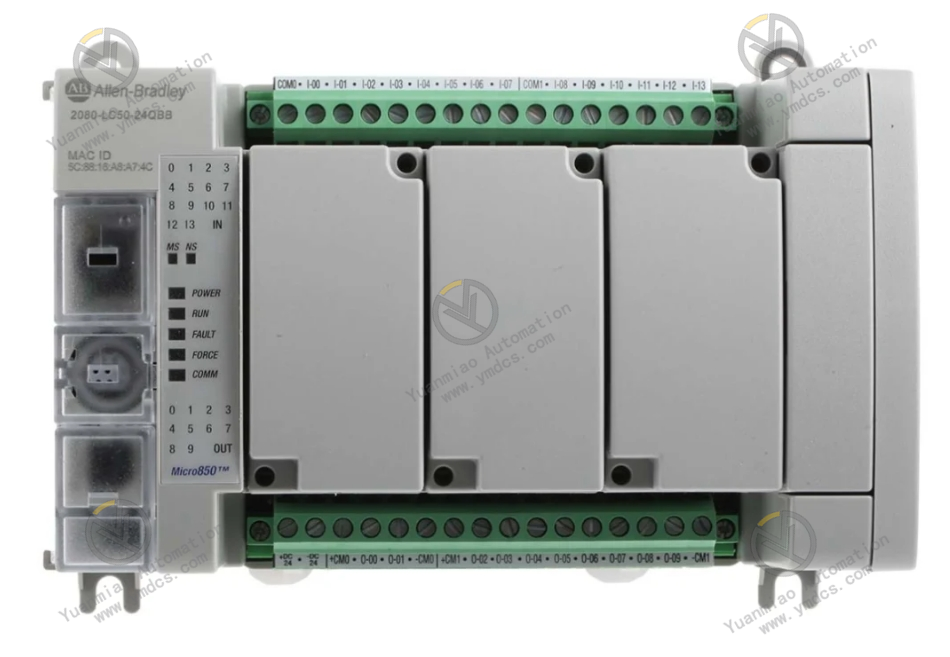

Description: The Allen-Bradley/Rockwell Automation 2080-LC50-24QBB controller is a Micro 850 programmable logic controller. It has 24 input and output points. It comes with 6 standard DC inputs, 8 high-speed DC inputs, 8 standard outputs, and 2 high-speed outputs. The 2080-LC50-24QBB programmable logic controller operates at -4 to 149 degrees Fahrenheit and it can be stored at -40 to 185 degrees Fahrenheit.
Technical Specifications for 2080-LC50-24QBB
| Manufacturer | Rockwell Automation |
| Product Description: | Micro 850 Programmable Logic Controller (PLC) |
| Power supply voltage: | 20.4…26.4V DC Class 2, or Limited Voltage Limited Current Source (LVLC) |
| Dimensions (HxWxD) | 90x230x80 mm |
| Ethernet port: | One (1) RJ45 port |
| Configuration port | One (1) USB Type B |
| Base Serial Port | One (1) RS-232/485 non-Isolated |
| Standard output location: | Outputs 2 and higher |
| no. of standard outputs: | 8 |
| High-speed output location: | Outputs 0-1 |
| No. of high-speed outputs: | 2 |
| Output voltage category: | 24VDC |
| Standard input location: | Inputs 8 and higher |
| High-speed input location: | Inputs 0-7 |
| No. of High-speed inputs: | Eight (8) |
| Listing | This specification list was created by Do-Supply-Inc. |
| Input Voltage category | 24V sink/source 24V AC, 50/60 Hz |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2080-LC50-24QBB |
| Product Type | Programmable Logic Controller |
| Inputs | 14 |
| Input Type | 12/24V |
| Outputs | 10 |
| Output Type | 24V Source |
| Motion Axis | 2 PTO |
| HSC | 4 HSC |
| Base Plug-in Slots | 3 |
| Base 100KHz HSC max. | 4 HSC |
| Dimensions HxWxD | 90x145x80 mm |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
The Allen-Bradley 2080-LC50-24QBB is a compact controller that is part of the Micro 850 Programmable Logic Controller (PLC). This controller is suitable for use in small machine or industrial processes, applicable in wide variety of applications.
The 2080-LC50-24QBB comes with built-in input and output channels as well as a support for a variety of communication protocols. This controller has integrated Fourteen (14) input channels that operate at nominal voltages of 24VDC and 24VAC, 50/60 Hz. Eight (8) of the input channels, particularly inputs 0-7 are high-speed input channels while inputs 8-14 are standard input channels. The high-speed inputs have an On-state voltage range 16.8…26.4V DC @ 65°C (149°F) and 16.8…30.0V DC @ 30°C (86°F) while standard inputs has On-state voltage range of 10-26.4V DC @ 65°C (149°F) 10-30.0V DC @ 30°C (86°F).
The 2080-LC50-24QBB output channels are Ten (10) 24VDC sink / source output channels. Output 0-1 are high-speed channels with operating voltage range of 10.8-26.4 VDC while the standard output channels operate at 10-26.4 VDC with minimum load current of 10 mA. The common OFF and ON time of the high-speed outputs are 2.5 ?s while 0.1 ms for ON time and 1 ms for OFF of standard outputs. Both output type has a common surge current of 4.0 A for 10 ms every 1 s @ 30 °C; every 2 s @ 65 °C.
