Description

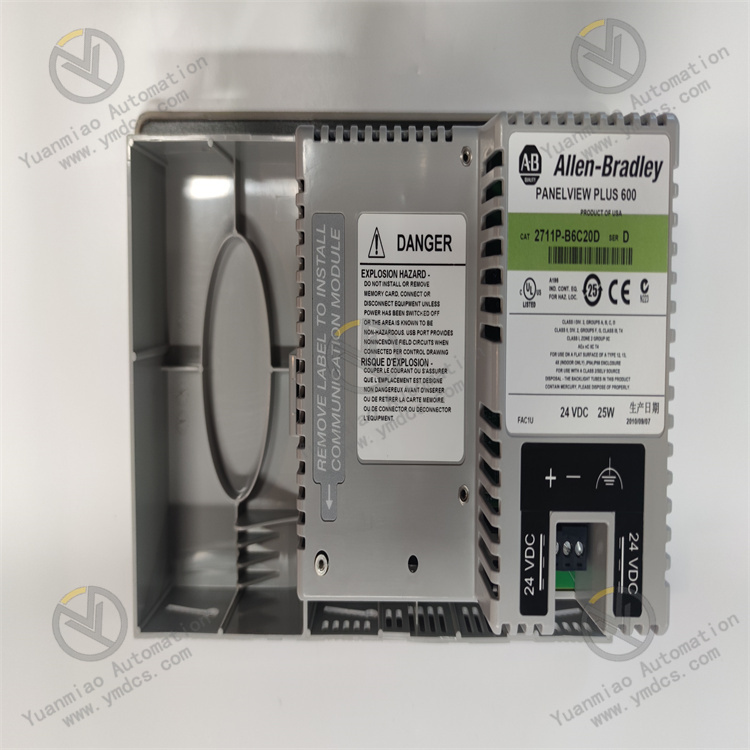

Description: The Allen-Bradley 2711P-B6C20D is a PanelView Plus 6 600 color terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18 to 30 VDC. It has a 5.7-inch Colored Active Matrix Thin-Film Resistor (TFT) display. It has embedded keypad and touchscreen operator interfaces. It has One (1) RS232 port, Two (2) USB ports and One (1) Ethernet communication interface.
Technical Specifications for 2711P-B6C20D
| Manufacturer | Rockwell Automation |
| Operator Input: | Keypad / Touch |
| Power Consumption: | 15 W max (0.6 A at 24V DC), 9 W typical (0.375 A at 24V DC) |
| Input Voltage range: | 18 to 30 VDC; 24VDC nominal. |
| Communication ports: | One (1) Ethernet, One (1) RS-232, Two (2) USB |
| System Memory: | 256 MB RAM, 512 MB nonvolatile memory (approx. 73 MB free user memory) |
| Touchscreen: | Analog resistive, 4-wire |
| Keypad: | F1 to F10, 0…9, ., -, Backspace, Enter, Left and Right Tab keys, Shift keys |
| Backlight: | 25,000 hours min at 25 °C (77 °F) |
| Resolution: | 320 x 240 |
| Display Area: | 111 x 84 mm (4.37 x 3.30 in) |
| Display Size: | 5.7 inches |
| Display Type: | Color Active TFT screen |
| Product Type: | PanelView Plus 6 600 |
| Product Family: | PanelView Plus 6 Graphic Terminals |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711P-B6C20D |
| Series | PanelView Plus 600 |
| Module Type | Operator Interface Terminal |
| Input Type | Keypad/Touchscreen |
| Power Supply | 24 Volts DC |
| Communication | RS-232, USB, 2 Ethernet ports |
| Display | 5.7-inch Color |
| Product Lifecycle Status* | Discontinued/Obsolete |
The Allen-Bradley 2711P-B6C20D is a PanelView Plus 6 600 operator terminal. This operator terminal is part of the modern PanelView products of Allen-Bradley with modern specifications that meets current automation requirements and connectivity. This operator terminal is compact yet highly configurable and scalable to meet specific control needs. It remains a cost-effective visualization component. The 2711P-B6C20D is a PanelView Plus 6 600 operator terminal is typically called as Human Machine Interface (HMI) by most personnel. This HMI mainly features a Color active-matrix Thin Film Transistor (TFT) with screen size of 5.7 inches, effective viewing area of 115 x 86 mm (4.5 x 3.4 in.) and resolution of 320 x 240, 18-bit color graphics. The screen has a rated brightness of 440 cd/m2 (Nits) with a non-replaceable backlight having an operational lifespan of 25,000 hours min at 25 °C (77 °F). The 2711P-B6C20D also comes with a dual operator input interface. It has a keypad assembly and touch sensitive cells which enables operational flexibility. The Keypad is composed of Numeric, navigation, and fully-programmable function keys. The keypad is made of Stainless-steel membrane with actuation life of 1 million presses and recommended actuation force of 340 g. The touchscreen interface is made of an analog resistive, 4-wire touchscreen with the same actuation lifespan of up to 1 million presses and operating force of 10-110 g.
This operator terminal has One (1) RS232 communication interface that supports DF1 and other point-to-point protocols, Two (2) USB ports for connection of external peripherals such as mouse, keyboard, removal storage and One (1) Ethernet communication port that supports Ethernet I/P and Common Industrial Protocol (CIP).

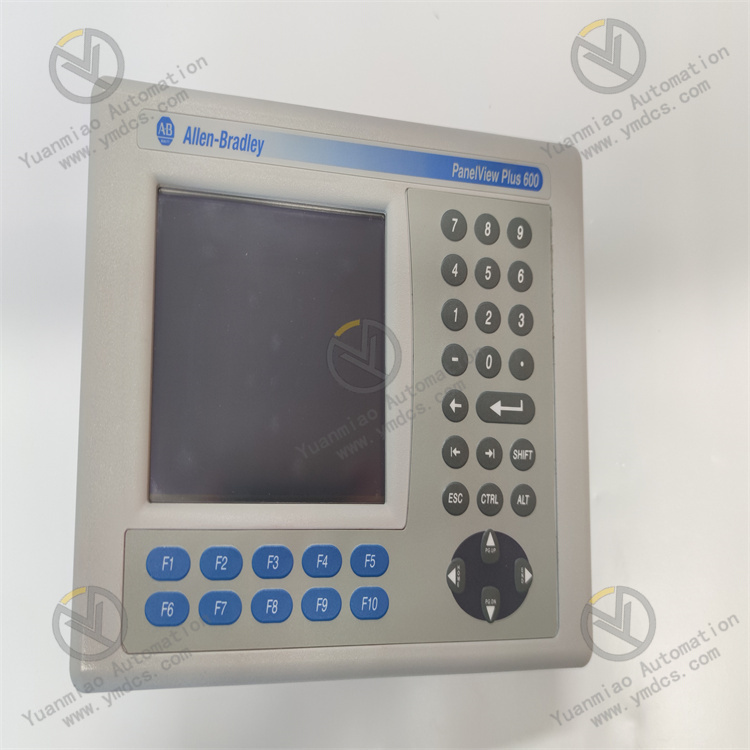

The 2711P-B6C20D has a touchscreen and keypad input interfaces. It has Ten (10) function keys, and touch sensitive cells integrated with the 5.7- in display, which has a display area of 111mm x 84mm (4.37in x 3.3in) display dimension. The HMI has a Liquid Crystal Display (LCD) active matrix with thin-film transistor (TFT) and a resolution of 320 x 240 in 18-bit color graphics.

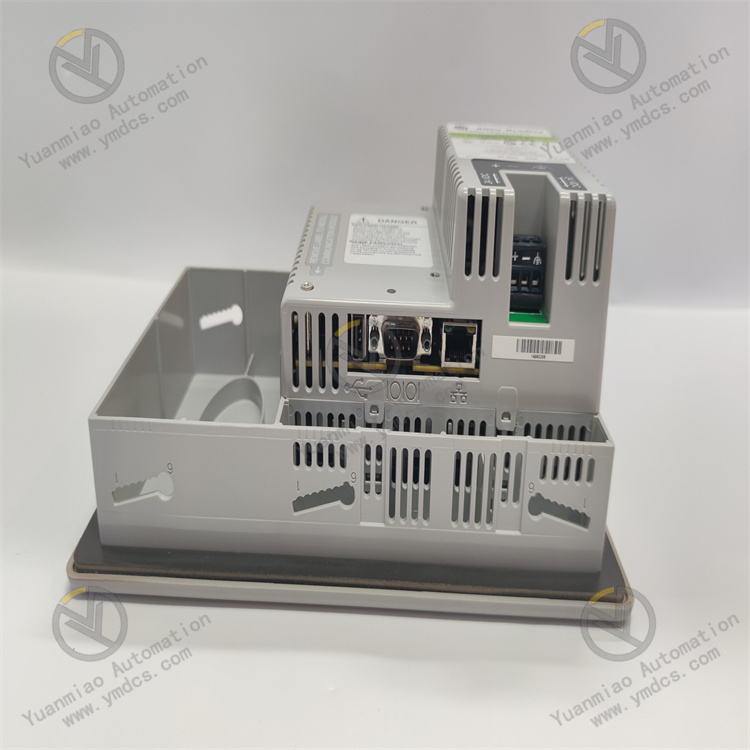

This HMI has One (1) RS-232 port, One (1) Ethernet port, and Two (2) USB ports. This allows the user to connect peripheral devices like mice, printers, and even PCs. It has a power rating of 25 Watts (max.) and an input DC voltage of 24V nominal. It has a weight of 0.93Kg (2.05 lb), and a total dimension of 167mm x 266mm x 98mm (6.58in x 10.47in x 3.86in). It is C-UL certified and has a NEMA Type 12, 13, 4X, IP54, IP65-rated enclosure which allows it to function normally even at an altitude of 2000m (6561 ft). The enclosure also allows for a maximum operational shock of 15G, in a 0-55 °C (32-131 °F) operating temperature.
