Description

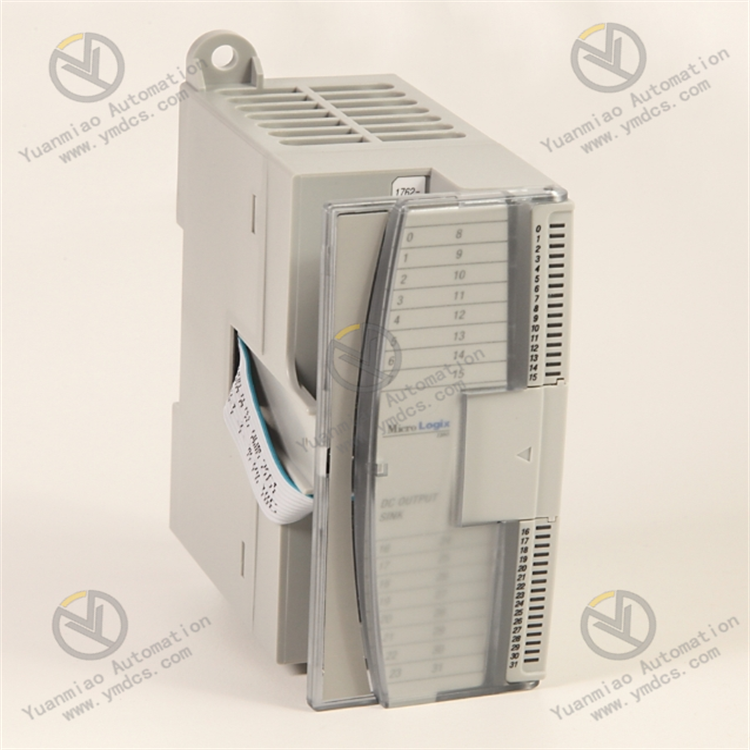

Description: The 1762-IF4 is a compact Four (4) Differential channels analog input module. This module supports 4-20 mA and -10 to 10V DC signals. This module is compatible for MicroLogix 1100, 1200 and 1400 Programmable Logic Controllers.
Technical Specifications for 1762-IF4
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1762-IF4 |
| Product Type: | Analog Input Module |
| Series | MicroLogix 1200 |
| Product Family: | MicroLogix |
| Analog Normal Operating Voltage | -10.5 to 10 Volts DC |
| Inputs | 4 Differential (Bipolar) |
| Voltage signal normal ranges: | '-10.5 … +10.5V dc |
| Current signal normal ranges: | 4 … 20 mA |
| Current signal full range: | -21 … +21 m |
| No. of Inputs: | Four (4) Differential (Bipolar) |
| Mounting Type | DIN Rail or Panel |
| Status Indicator | Single source LED |
| Recommended Cable | Belden 8761 (shielded) |
| UPC | 10611320152125 |
| Shipping Weight | 8.28 ounces |
| Enclosure Type Rating | IP20 |
| Converter | Delta-Sigma |
| Resolution: | 15 bit |
| Repeatability: | ±0.12% |
| Dimensions | 90 x 87 x 40.4 millimeters |
The 1762-IF4 is an Allen-Bradley MicroLogix 1200 with a 4-channel current/voltage analog input module. It has a Delta-Sigma converter and 4 differential (bipolar) inputs. Its analog operating voltage range is -10 to 10 Volts DC normal and -10.5 to 10.5 Volt DC full-scale. Its analog operating current range is 4 to 20 mA normal and -21 to 21 mA at full scale. This module enhanced the functionality of MicroLogix by allowing additional I/O to the system. It requires minimal spacing and can be either DIN rail or panel mounted. The module communicates and receives information on 5 to 24 Volts DC power via the 1762 bus interface.
When wiring the input terminal blocks, a finger-safe cover is present. A flat ribbon cable is used to attach various I/O modules. The 1762-IF4 module supports 2-wire, 3-wire, or 4-wire transmitter configuration. During troubleshooting, users should always stand away from the equipment and always check it for any program change. Safety circuits should always be wired in series to the master relay.
The 1762-IF4 module should be installed in non-hazardous, dry, and clean environments with circuits not crossing overvoltage Category II standards. To avoid damage to the module, always prevent electrostatic discharge and remove power. A field-upgradable flash operating system helps to make sure the users will always be up-to-date with the latest features without having to replace any of the hardware. The I/O count can be expanded by using rackless I/O modules. This results in larger control systems, greater application flexibility, and expandability at a lower cost and a reduced parts inventory.
