1756-IR6I | Analog Input Module

1756-IR6I | Analog Input Module

Brand: Allen-Bradley

Product ID: 1756-IR6I

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

Description: The 1756-IR6I is a ControlLogix analog input module. It has Six (6) individually isolated Resistance Temperature Detector (RTD) and Resistor inputs. Compatible RTDs are 100, 200, 500, 1000 ? Platinum, alpha=385; 100, 200, 500, 1000 ? Platinum, alpha=3916; 120 ? Nickel, alpha=672; 100, 120, 200, 500 ? Nickel, alpha=618; and 10 ? Copper .

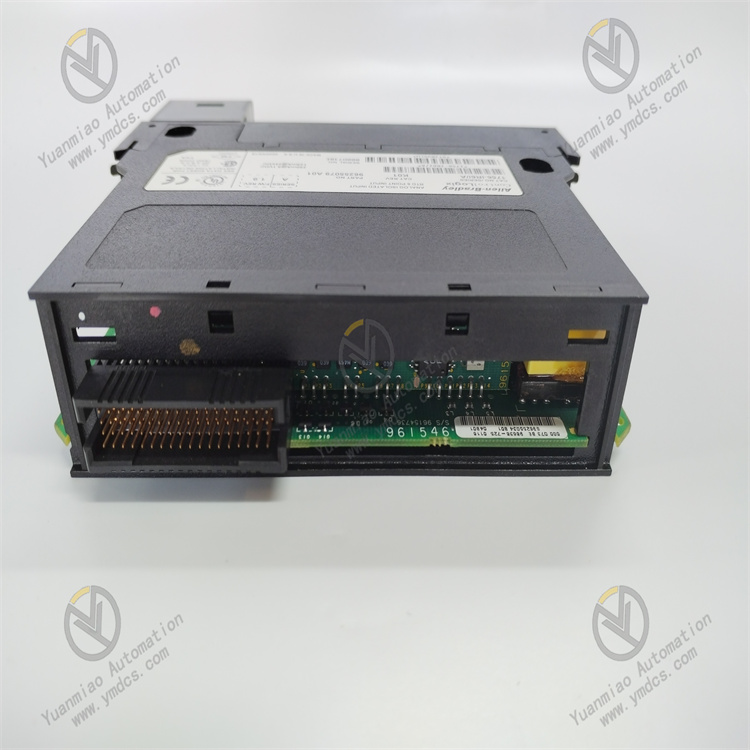

1756-IR6I (3).jpg

Technical Specifications for 1756-IR6I

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1756-IR6I
SeriesControlLogix
Module TypeAnalog RTD Module
Inputs6-Point Isolated RTD
Compatible RTD TypePlatinum 100, 200, 500, 1000 ? , alpha=385; Platinum 100, 200, 500, 1000 ? Platinum, alpha=3916; Nickel 120 ?, alpha=672, Nickel 100, 120, 200, 500 ? , alpha=618
Resolution16 bits 1…487 ?: 7.7 m?/bit 2…1000 ?:15 m?/bit 4…2000 ?:30 m?/bit 8…4020 ?:60 m?/bit
Input Range1…487 ? 2…1000 ? 4…2000 ? 8…4000 ?
Module Scan Time25 ms min floating point (ohms) 50 ms min floating point (temperature) 10 ms min integer (ohms)(1)
Maximum Input Current, Off-State2.75 milliamperes
Data FormatInteger mode (left justified, 2s complement) IEEE 32-bit floating point
Backplane Current (5Volts)250 milliamps
Backplane Current at 24 Volts2 milliamperes
Backplane Current (24 Volts)125 milliamps
Power Dissipation (Max)4.3 Watts
Removable Terminal Blocks1756-TBNH, 1756-TBSH
Maximum Operating Current1.2 milliamperes at 30 Volts AC, 60 Hertz

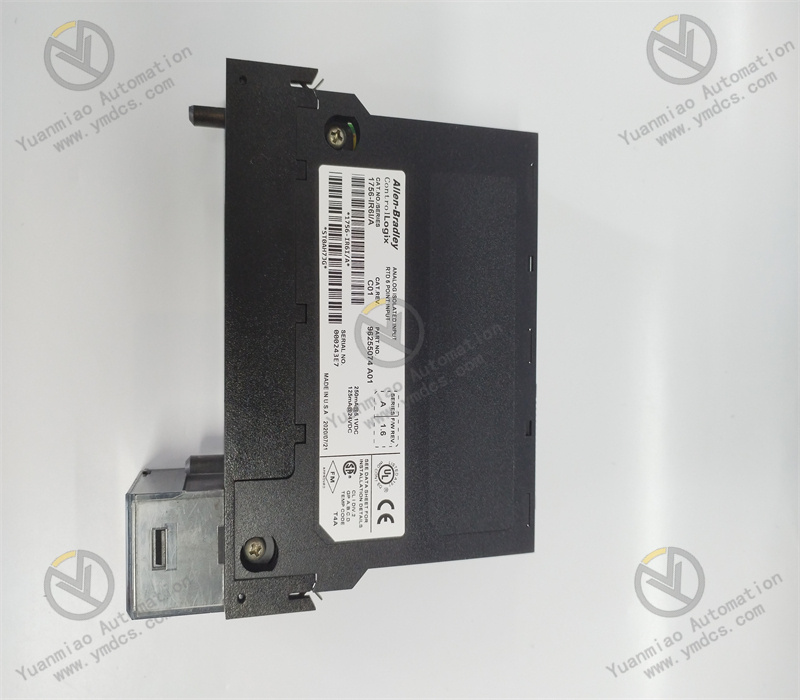

1756-IR6I (3).jpg

The Allen-Bradley 1756-IR6I is a temperature-measuring analog module. This is an analog module that is used with Resistance-Temperature Detectors (RTD) sensors. The 1756-IR6I module provides two data formats such as integer mode and the floating-point mode. When choosing the integer mode, the integrated features are multiple input ranges, notch filter, and real-time sampling. The floating mode includes all these features with the addition of temperature linearization, process alarms, rate alarms, and digital filtering. It also has selectable temperature unit to such as Celsius or Fahrenheit. There are Four (4) possible input ranges for the module including 1 to 487 m?, 2 to 1000 m?; 4 to 2000 m?;, and 8 to 4000 m?;. These ranges designate the minimum and maximum signals detectable by the module. It has Six (6) individually isolated RTD inputs and a resolution of 16 bits. Actual resolution includes 7.7 m?bit for 1-487 Ohms; 15 m?/bit for 2-1000 Ohms, 30 m?/bit for 4 - 2000 Ohms and 60 m?/bit for 8 - 4020 Ohms. The module’s notch filter line noise filtering. Make sure to choose the filter that closely matches the application’s anticipated noise frequency. The digital filter smoothens data by eliminating noise transients on each input channel. The 1756-IR6I’s real-time sampling feature lets the module multicast data it gathered from scanning all of its input channels. To enable multicast, configure Real-Time Sampling (RTS) period and a Requested Packet Interval (RPI) period.

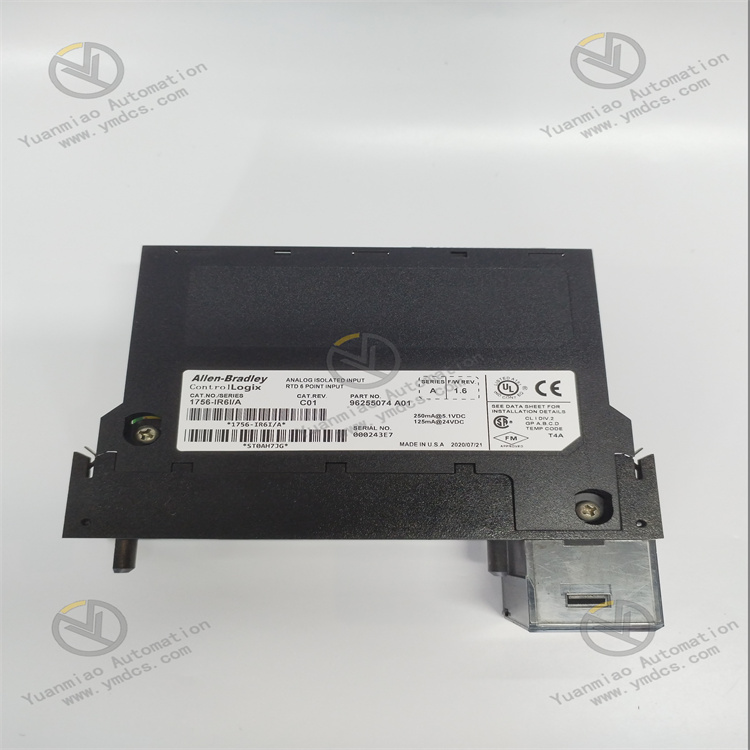

1756-IR6I (1).jpg

Protection features are also embedded with this module such as under-range/over-range detection, feature of the module which is used to monitor if the input signal falls beyond the limits set by the input range. The process alarms work similarly however the process limits are manually set by the user. The integrated rate alarm allows the module to detect a rapid increase or decrease within a short defined period of time. Rate alarm is only available in applications using floating point. Wire off detection feature provide loop wiring completeness. It can detect if the RTB or a wire in the module has been disconnected. Small offset errors in a 10-ohm copper RTD can be compensated with the 10 ohms offset feature of the module. Sensor types can also be configured for each channel in the module. This linearizes the analog signal into a temperature value. The Allen-Bradley 1756-IR6I is an ControlLogix module that is used to receive signals from Resistance Temperature Detectors (RTD). This module belongs to the analog input category and especially used for Temperature measurement applications. It accepts resistance signals from RTD types such as Platinum 100, 200, 500, 1000 ? , alpha=385; Platinum 100, 200, 500, 1000 ? Platinum, alpha=3916; Nickel 120 ?, alpha=672, Nickel 100, 120, 200, 500 ? , alpha=618 and Copper 10 ?. This module is compatible for use with 3-Wire and 4-Wire RTD. RTD functions by providing a specific output resistance at a specific Temperature. An RTD table is used to identify the corresponding Resistance output. With the use of this module, the selected RTD type is selected for proper functioning of the module.
