Description

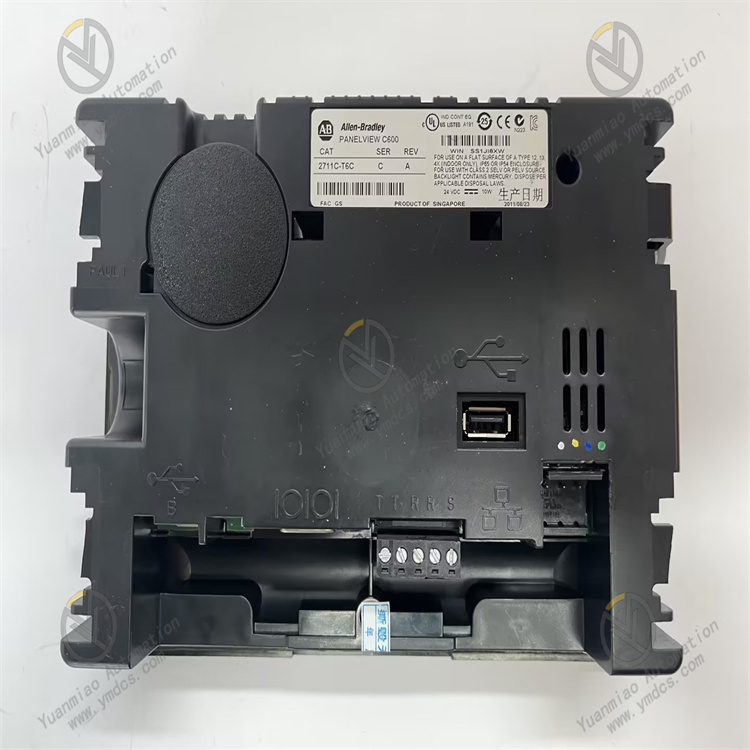

Description: The Allen-Bradley 2711C-T6C is a PanelView C300 Component Terminal. This operator terminal features a Color transmissive CSTN passive matrix LCD screen, with diagonal size of 5.7 inches, Display area of 115 x 86 mm (4.53 x 3.39 in.) and resolution of 320 x 240 pixels. It is operated via the touchscreen interface and comes with built-in RS-232 (DH-485), RS-232 (DF1), RS-485, and Ethernet communication interfaces.
Technical Specifications for 2711C-T6C
| Compatible Web Browsers: | Internet Explorer 7 and 8, Firefox 3.0 |
| Resolution | 320 x 240 |
| Input Voltage Range | 18…30V DC (24V DC nom) |
| Display Type | Color transmissive CSTN passive matrix LCD |
| Brand | Allen-Bradley |
| Input Type | Touch |
| Product Family: | PanelView Component |
| Manufacturer: | Rockwell Automation |
| Product Type: | PanelView 600 Component |
| Display Area: | 115 x 86 mm (4.53 x 3.39 in.) |
| Backlight: | 50,000 hours life, min; not replaceable |
| Listing | This specification list was created by dosupply.com. |
| Touchscreen: | Analog touch Actuation rating: 1 million presses |

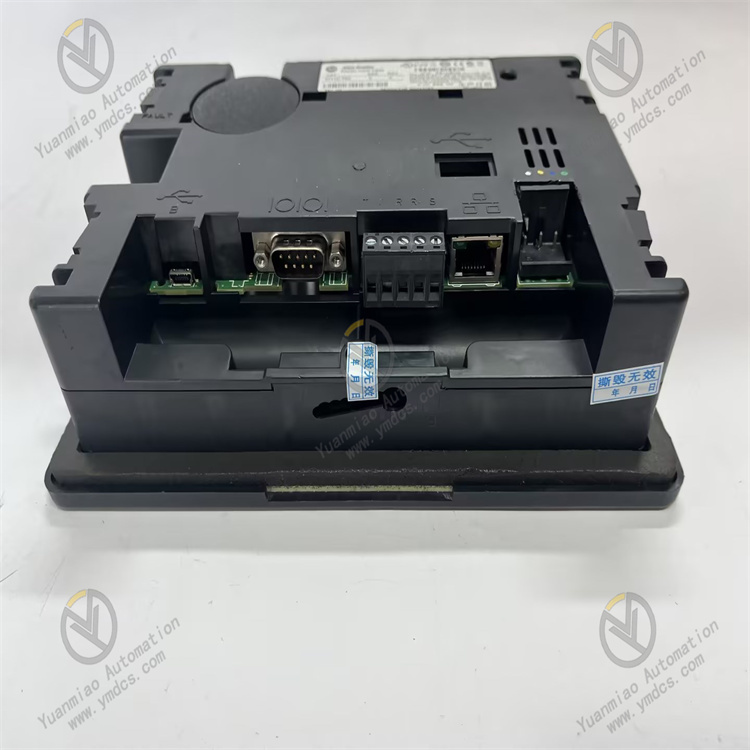

| Communication ports: | RS-232 (DH-485), RS-232 (DF1), RS-485 Multi-vendor communication available for Modbus and Siemens MPI devices; USB Port |
| Product Line | Component Terminal |
| Series | C600 |
| Part Number/Catalog No. | 2711C-T6C |
| Display Size | 6 inches |
| Display Color | Color |
| Power | 24 Volts DC |
| Weight | 1.5 pounds (approximately) |
| Heat Dissipation | 32 BTU per Hour |
| Product Lifecycle Status* | Discontinued/Obsolete |
The 2711C-T6C is an Allen-Bradley PanelView Component C600 Terminal. The Allen-Bradley 2711C-T6C PanelView Component C400 Terminal is one of the most popular terminals that is used for high-end applications with Ethernet or other serial communications. This device uses a color transmissive CSTN passive matrix LCD interface with a variety of controllers and programming ports. Maintaining and installing the drive is easy with the integrated mounting clamps. The built-in navigation tabs guide the users through the development of the application. The 2711C-T6C operator interface comes with 5.7-inch touchscreen display interface. The 2711C-T6C has a heat dissipation of 32BTU/hour and operating temperature ranging from32 to 122 degrees Fahrenheit. It can be mounted vertically or tilted backwards or forwards at an angle of up to 45 degrees. This operator terminal is c-ULus Listed, CE marked, C-Tick certified.
The 2711C-T6C terminal requires a nominal input voltage of 24 Volts DC nominal and it has an average power consumption of 10 Watts maximum. Disconnect all electrical power from the panel before making the panel cutout. This terminal supports Internet Explorer 7/8 and Firefox 3.0 for easy operation with a PC/remote device. It also has an option to alert the operators about problems by using alarm notifications with various variables. The users can change the language of the terminal for diagnostic messages and configuration. It weighs less than 1.48 pounds and it has a display size of 115 x 86 millimeters (4.53 x 3.39 inches) with a screen resolution of 320 x 240. The built-in dashboard provides a single point of entry for accessing all of the terminal and design operations. Other key features include Unicode language switching, alarm messages, secured programming access, and a history log of the saved tasks in the terminal itself. The 2711C-T6C PanelView Component C600 Terminal is an operator interface device that is designed for monitoring and controlling devices. The 2711C-T6C can only monitor and control devices that are connected to a controller. The 2711C-T6C PanelView Component C600 terminal has an analog touchscreen operator input. The 2711C-T6C terminal is programmable via the USB device port (programming port).

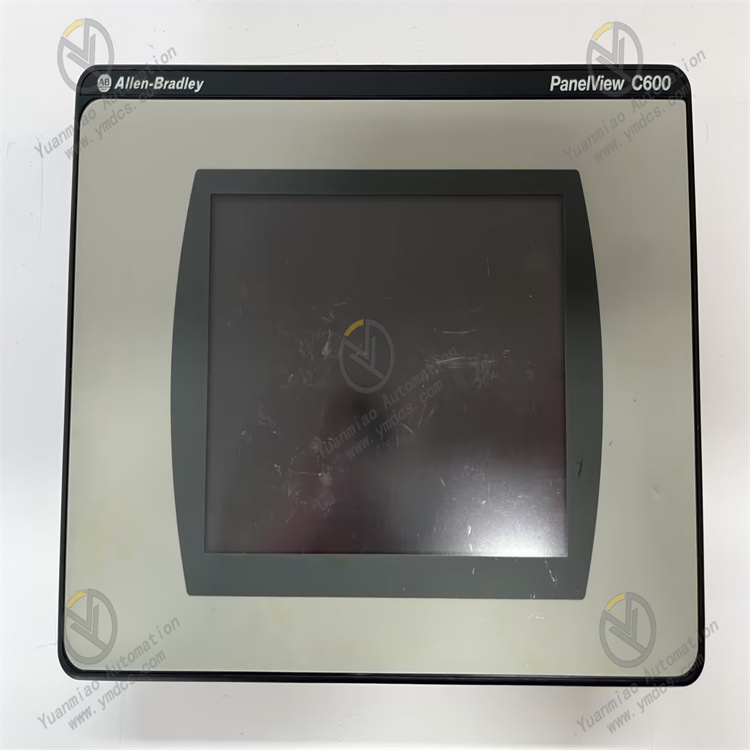

The 2711C-T6C features a 5.7 inches graphic display with a resolution of 320 x 240 pixels and display area of 115 x 86 mm (4.53 x 3.39 in.). This screen size is ideal for medium applications that require display of higher degree of information and larger quantity of graphic objects.
The 2711C-T6C comes with a non-replaceable backlight however, this backlight is designed to operate up to 40,000 Hrs. It also comes with a real-time clock that is battery backed, with battery life expectancy of 5 years, minimum at operating temperature of 25 °C (77 °F).
