Description

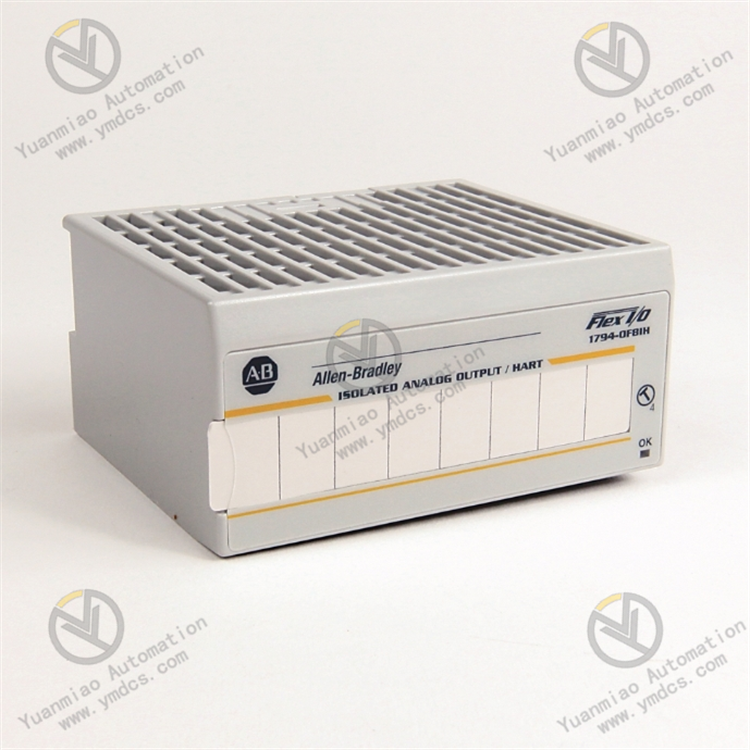

Description: The Allen-Bradley 1794-OF8IH is a Flex I/O module. This module is an Isolated Output HART Analog Module that is part of the 1794 Flex I/O system. This module has Eight (8) 8 single-ended, isolated outputs, configurable for 0-20 mA and 4-20 mA with 16-bit resolution.
Technical Specifications for 1794-OF8IH
| No. of Outputs: | Eight (8) Isolated outputs |
| Thermal dissipation, max: | 17.06 BTU/hr @ 24V DC |
| Power dissipation, max: | 5.0 W @ 24V DC |
| Flexbus current: | 80 mA @ 5V DC |
| Calibration: | Factory Calibrated |
| Terminal Base: | 1794-TB3, 1794-TB3S |
| Data format: | Engineering Units; Percent of Full Scale; RAW/Proportional Count |
| Conversion rate: | 10 ms |
| Conversion method: | 16-bits digital to analog converter |
| Module Resolution: | 16-Bit; Unipolar |
| Output signals: | 0-20 mA; 4-20 mA |
| Brand | Allen-Bradley |
| Product Description: | Flex IO Isolated Analog Output HART Module |
| Manufacturer: | Rockwell Automation |
| Part Number | 1794-OF8IH |
| Series | Flex I/O 1794 |
| Product type | Output module |
| Outputs | 8 |
| Pass-through message support | Yes |
| Output current | 0 to 20 mA or 4 to 20 mA |
| Data conversion rate | 10 milliseconds |
| Operating temperature | 32 to 131 degrees Fahrenheit |
The Allen-Bradley 1794-OF8IH module is made by Allen-Bradley/Rockwell Automation as a FLEX I/O module. TheAllen-Bradley1794-OF8IH FLEX I/O module is an output module with HART capability. It comes with up to 8 analog outputs that are configurable for 0 to 20 mA and 4 to 20 mA. The 1794-OF8IH module can be used without jumpers and switches and it has multiple data ranges that the users can program independently on each channel. This output module can also detect lead breakages and it has alarms for overrange and underrange current situations. The Allen-Bradley 1794-OF8IH output module can be installed on a terminal base with. It locks to the terminal base when the keyswitch is rotated into position 4. This module supports pass-through messages with 1 or 2 pass-through connections supporting 8 queues per connection. Pass-through messages make it possible for the module to send HART messages to HART devices. Its data conversion rate is 10 milliseconds. The Allen-Bradley 1794-OF8IH module can operate in a temperature range of 32 to 131 degrees Fahrenheit. This modules comes with Eight (8) analog output channels that are configurable for Current output such as 0-20 mA and 4-20 mA output signals. It has a resolution of 16 bits in unipolar format with actual resolution of 0.305 ?A/cnt. It uses an internal conversion rate of 10 ms with conversion rate of 16-bits digital to analog converter. The module channel’s settling time is 70 ms. This module does not require an external power supply to be operated. It receives power from the FlexBus current with rated value of 80 mA @ 5V DC. This module has a maximum power dissipation of 5.0 W @ 24V DC and maximum Thermal dissipation 17.06 BTU/hr @ 24V DC. This Flex I/O module is compatible for installation in 1794-TB3, 1794-TB3S terminal bases. It is factory calibrated and requires keyswitch position 4 when installing to the appropriate terminal base. Additionally, the wire type for use with this module depends on the type of the terminal base used by the 1794-OF8IH module. This module has a dedicated register for HART data. This register is a 6 WORD register that contains the Fields Device, HART Communication, Loop Status, and primary value in IEEE 754-1985 Single-Precision 32-bit floating point.
