Description

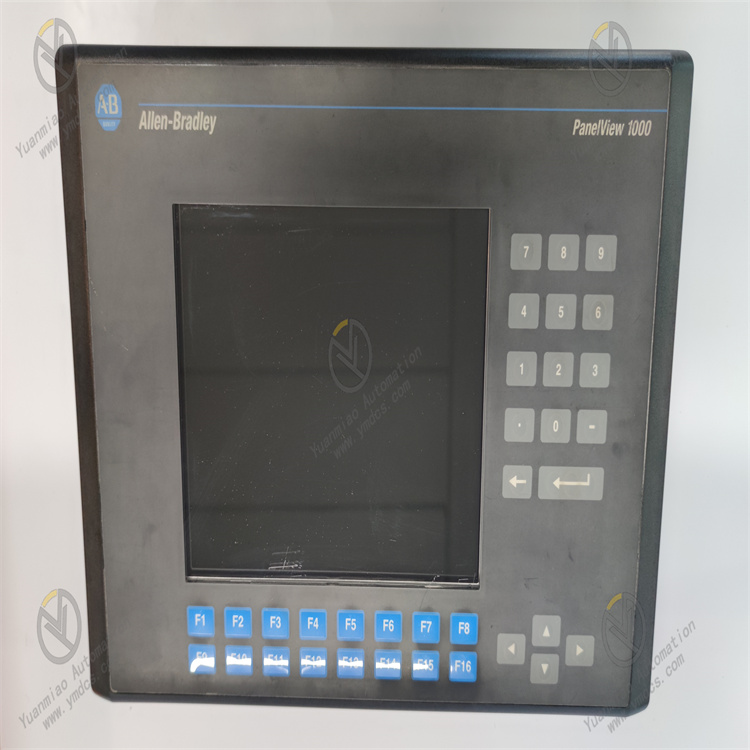

Description: The Allen-Bradley 2711-K10C10 is a PanelView 1000 Standard Operator Terminal. This operator terminal operates when supplied by an external supply voltage range of 85-264 Volts AC, 47-63 Hertz. It has a 10-inch colored display screen with a keypad input interface. It has an embedded DeviceNet communication port and RS-232 printer interface.
Technical Specifications for 2711-K10C10
| Manufacturer | Rockwell Automation |
| Product Family: | PanelView Standard Operator Terminals |
| Status Indicators: | COMM: Green Fault: Red |
| Enclosure: | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Input Frequency: | 47…63 Hz |
| Input Voltage range: | 85…264V AC |

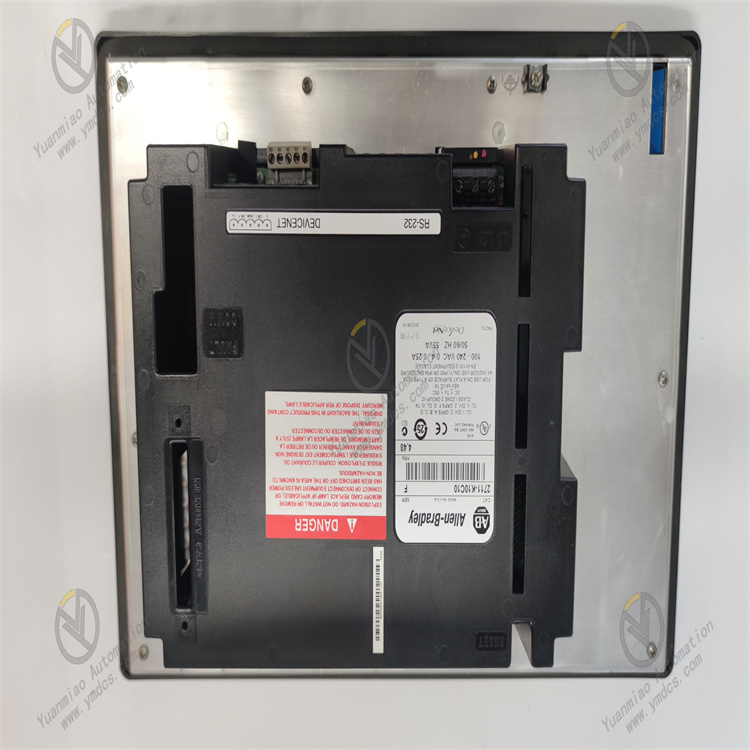

| Communication ports: | DeviceNet; RS232 (printer) |
| Application memory: | 310KB application runtime; 1008 KB nonvolatile memory |
| Keypad Assembly: | 16 function keys (F1…F16) |
| Backlight: | 50,000 hr LED backlight life half-life |
| Resolution: | 640 x 480 |
| Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Type: | Color Active matrix |
| Product Type: | PanelView 1000 Standard Operator Terminals |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711-K10C10 |
| Product Line | Panelview 1000 |
| Display Size | 10.1 in. |
| Display Color | Multi-Color |
| Input Type | Keypad |
| Communication | Printer (RS-232) Port and DeviceNet |
| Input Power | 85-264 Volts Alternating Current |
| Memory | 256 Kilobytes |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Product Lifecycle Status* | Discontinued/Obsolete |
The Allen-Bradley 2711-K10C10 is a part of the old Allen-Bradley PanelView 1000 Graphics Terminal. It is used for various monitoring and machine control applications. The 2711-K10C10 terminal has a 10-inch keypad and color display with a navigation button. The terminal supports 32 standard colors and has a 640 x 480 resolution. It has dimensions of 11.11 x 16.64 x 4.40 in. and it weighs 8.2 lbs. It has a 1008 KB nonvolatile memory, a 310 KB RAM, and 85 - 264V AC input voltage. For communication, it has DeviceNet to upload or download applications. The 2711-K10C10 has a NEMA 12/13 or 4X enclosure and is intended for indoor use only. The 2711-K10C10 terminal has custom designed applications for easy use. It supports advanced alarm handling to store information and it is equipped with an RS-232 port for online printing. It also supports various universal languages. Other features include analog gauges, screen security, and a memory card support for better control. It has various ports for connecting to a scanner, PLC, SLC, or Logix controller. The Allen-Bradley 2711-K10C10 is part of the PanelView Plus 1000 operator terminal and serves as a PanelView Standard operator terminal. This electronic hardware is specifically a Human Machine Interface (HMI) device that belongs to the PanelView 550 Standard sub-category. The 2711-K10C10 is typically installed flush-mounted to an enclosure that offers adequate protection against industrial contaminants and hazardous environments. It is recommended to be installed in industrial enclosures rated NEMA Type 12, 13, 4X (indoor use only), IEC IP54, and IP65. This operator terminal has an operating temperature range of 0…55 °C (32…131 °F) and storage temperature of -25…70 °C (-13…158 °F). It must be installed horizontally on a flat surface with a vibration limited to 2 g up to 2000 Hertz and shock of 30 g. The 2711-K10C10 has a 10-inch colored display screen which enable this operator terminal to display colored static graphics and implement color coded animations. For operator input, it is equipped with a stainless-steel domed membrane keypad composed of function keys, navigation keys, and numeric buttons with an actuation lifespan of 1 million presses. For communication, the 2711-K10C10 has an integrated DeviceNet and RS-232 Printer interface. It is also equipped with non-volatile memory - amounting to 1008 KB and Random Access Memory (RAM) amounting to 310 KB.
