Description
Description: The Allen-Bradley ControlLogix 1756-CN2RXT is an Interface Module with 5.1 Volts DC, 1.3 Amperes, 6.6 Watts, and 5 Mbps.
Technical Specifications for 1756-CN2RXT
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-CN2RXT |
| Series | ControlLogix |
| Module Type | Interface Module |
| Voltage | 5.1 Volts DC |
| Current | 1.3 Amperes |
| Power Dissipation | 6.6 Watts |
| ControlNet Rate of Communication | 5 Mbps |
| Logix Communication Connections | 128 |
| Max Connections Supported | 131 |
| Max Number of Nodes | 99 |
| Slot Width | 1 |
| Location | Chassis (Any Slot) |
| Weight | 0.64 lbs (0.293 kg) |

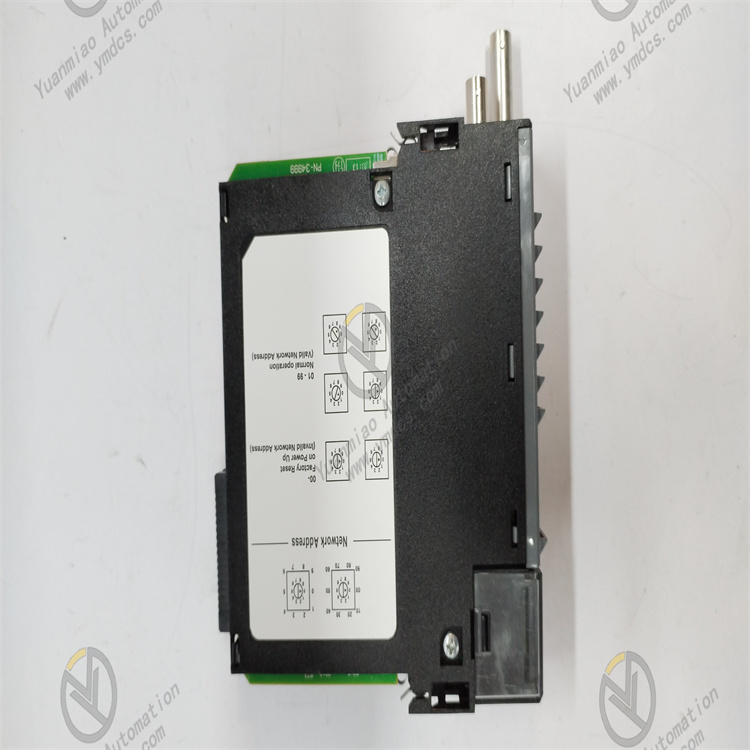

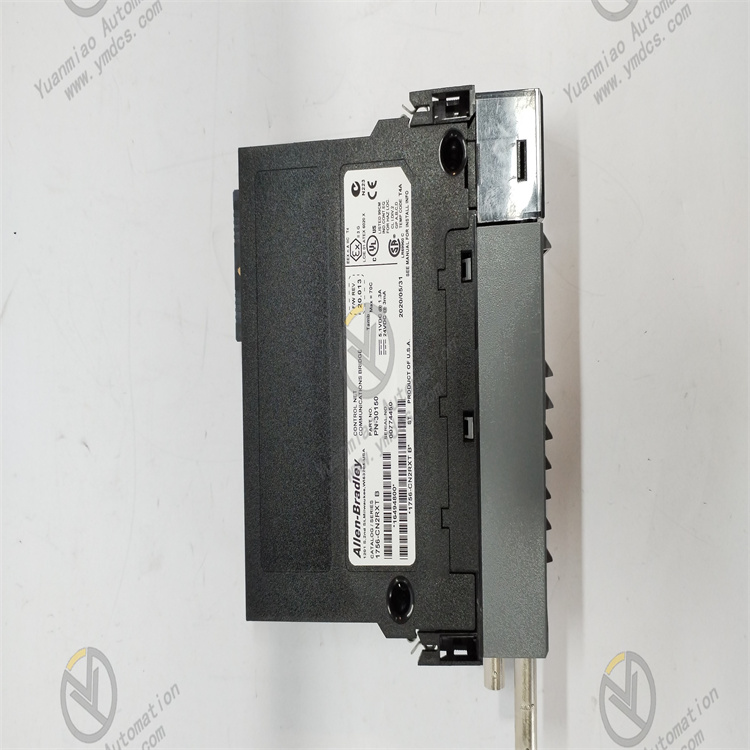

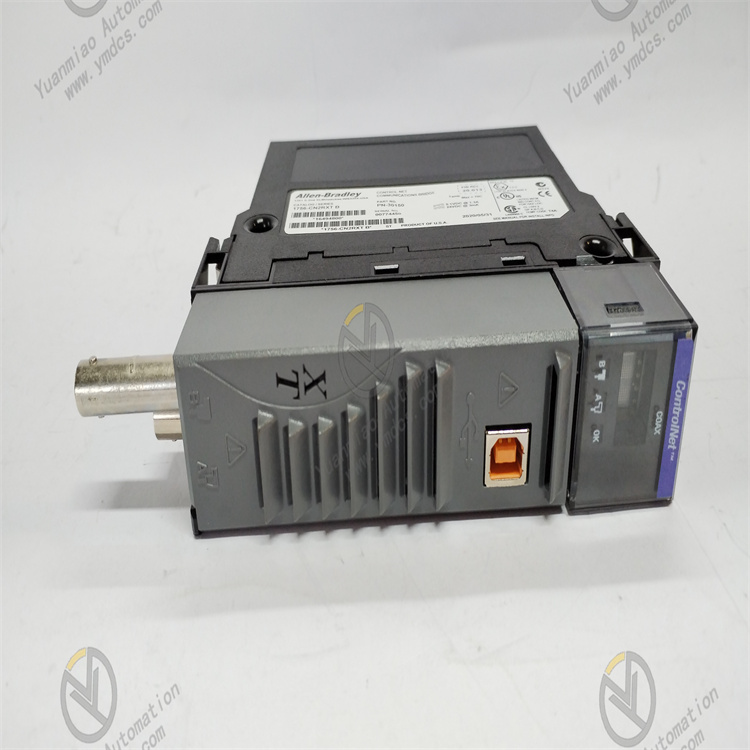

The Allen-Bradley 1756-CN2RXT is a redundant media, ControlNet communication bridge module where controller-to-controller interlocking and I/O updates always take precedence over messaging and program uploads and downloads. It is part of the ControlNet Communication Module series and is ideal for applications that require the use of 128 ControlNet connections per communication module. A ControlLogix-XT model it can provide control in operating environments where temperatures range between -25 and 70 °C (-13 and 158 °F). The 1756-CN2RXT ControlNet Interface supports a total of 99 nodes and 131 connections –128 standard Logix connections plus 3 reserved for redundant control. Because these are reserved, the 3 connections will always appear in use even when they are open. The module comes with a communication rate of 5 Mbps, current draws of 1300 mA at 5.1V DC, and of 3 mA at 24V DC. Its isolation voltage is 30V (continuous) with a basic insulation type. The 1756-CN2RXT Module features one USB 1.1 full speed (12 Mbps) port and two ControlNet BNC ports requiring the 1786-RG6 quad-shield RG6 coaxial cable. It can occupy any chassis-based slot and is compatible with the 1756-A4LXT, 1756-A5XT, 1756-A7XT, and the 1756-A7LXT ControlLogix Chassis.
