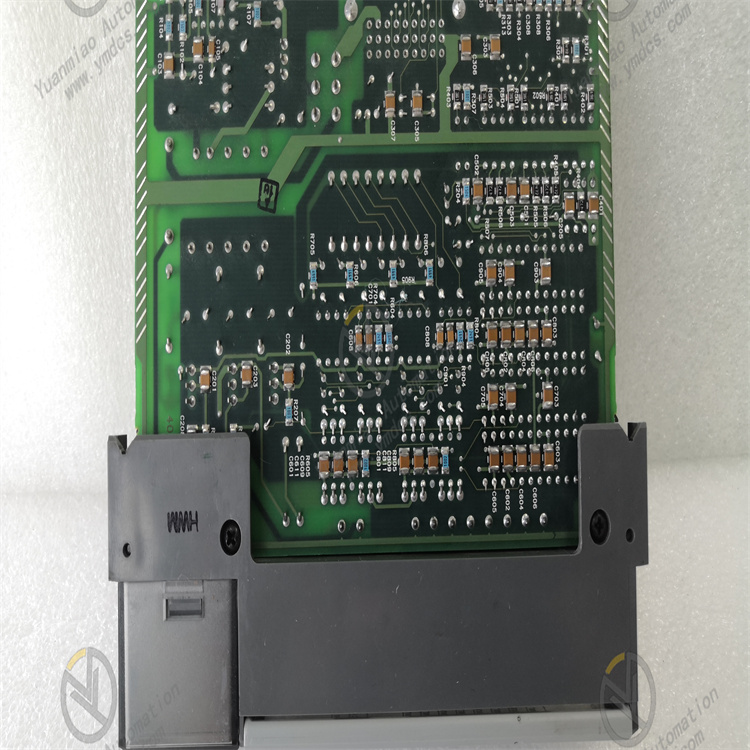

1746-NO4I - Analog Output Module

1746-NO4I - Analog Output Module

Brand: Allen-Bradley

Product ID: 1746-NO4I

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

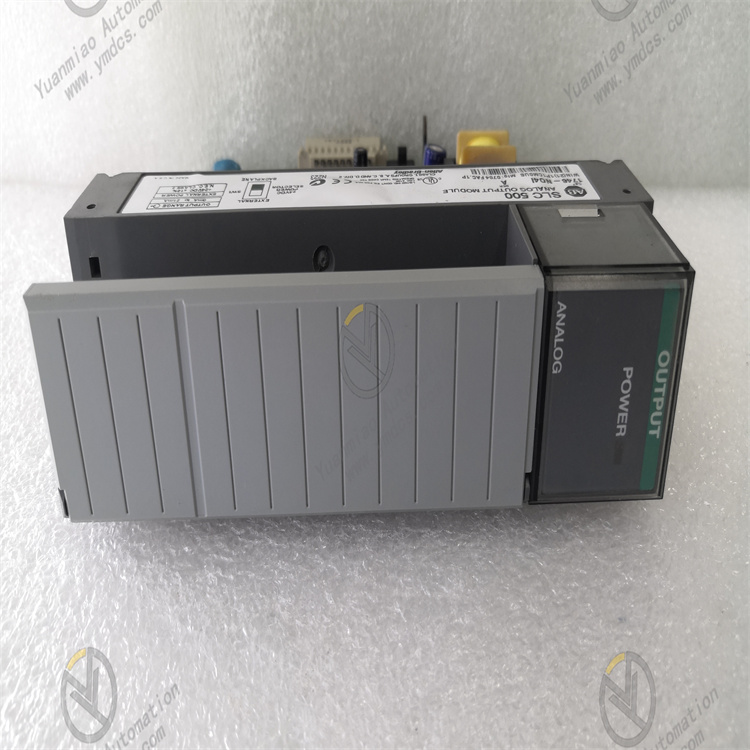

Description: The Allen-Bradley 1746-NO4I is an SLC 500 Analog Output Module. This Analog Output Module has Four (4) Current outputs channels that provides output range of 0 to +20 mA. This module is used with SLC 500 fixed or modular style hardware.


Technical Specifications for 1746-NO4I

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1746-NO4I
SeriesSLC 500
Module TypeAnalog Output Module
Backplane Current (5 Volts)55 milliamps
OutputsFour (4)
Backplane Current (24 Volts DC)195 milliamps
Output Current range0 to +20 mA
Full Scale Output21 mA
Overrange Capability5% (0 to +21 mA - 1 LSB)
Current Output Coding0 to +32764
Backplane Current(5 Volts) 55 milliamps; (24 Volts DC) 195 milliamps
Update Time512 microseconds
Resolution14 bits
Step Response2.5 milliseconds

公司介绍 (1).png

The Allen-Bradley 1746-NO4I module is a Programmable Logic Controller (PLC) analog output module that belongs to the SLC 500 product platform. This module is used with the mentioned platform and compatible with the Two (2) controller variant such as fixed hardware of modular hardware style. This module is capable of producing an output Current range of 0 to 20 mA that may be used to drive modulating instruments and devices. Typical analog outputs are connected to a controller’s control command. If used with a Proportional-Integral-Derivative controller, the analog output is assigned to represent the Control Output (CO) of the PID controller. For manual loading stations, the analog output represents the manual command entered by the operator. It may also be used to re-transmit an important signal to a single or multiple device. This may be for the purposes of indication, data logging and signal conversion. The appropriate signal is assigned by modifying the module properties. This module is also installed with an embedded selector switch to allow selection of power supply source. Internal power supply may be selected which means that the module will utilize the supply from the backplane while external source refers to an external power supply with specification of 24 ±10% at 195 mA max.

1746-NO4I (2).jpg

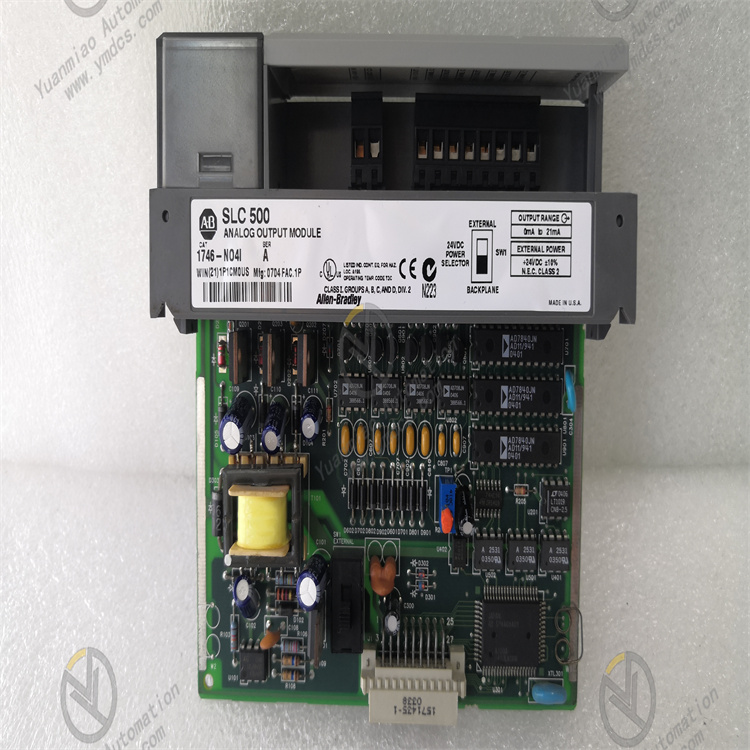

The Allen-Bradley 1746-NO4I is an SLC 500 Four (4) channel analog output module using a 16-bit 2’s complementary binary format. It has 4 current outputs that have an output range of 0 to +20 mA with full-scale current output of 21 mA. The backplane current draw of this module is 55 mA at 5 VDC while and 195 mA at 24 VDC while the over range capacity is 5% (0 to 21 mA and 1 LSB). Its power supply voltage rating is 24 Volts DC +/- 10% at 195 mA maximum and the backplane isolation is 500 Volts DC. Note that some applications require 21.6 to 26.4 Volts DC power when there is not enough power flowing from the SLC power supply. The 1746-NO4I also comes with an update response time of 512 µs for all the channels that are in parallel. The input step response of this module is 2.5 milliseconds at 95%. Its operating temperature is 0 to 60 degrees Celsius; Storage temperature is -40 to 85 degrees Celsius, and its non-condensing ambient relative humidity is 5 to 95%. This factory-calibrated output module has an open enclosure and it is only compatible with the 1746 chassis. An LED status indicator is also present in this module. The 1746-NO4I has a load range of 0 to 500 ohms and maximum load reactance of 100 µH, with a converter resolution of 14 bits via the R-2R Ladder conversion method. The 1746-NO4I’s maximum overall accuracy drift is +/- 70 ppm/ degree Celsius of the full-scale accuracy. When wiring this module, use shielded communication cable such as Belden 8761 or equivalent with lengths kept as short as possible. For wiring convenience, the module is provide with a removable terminal for simplified wiring and ease when replacing the module.
